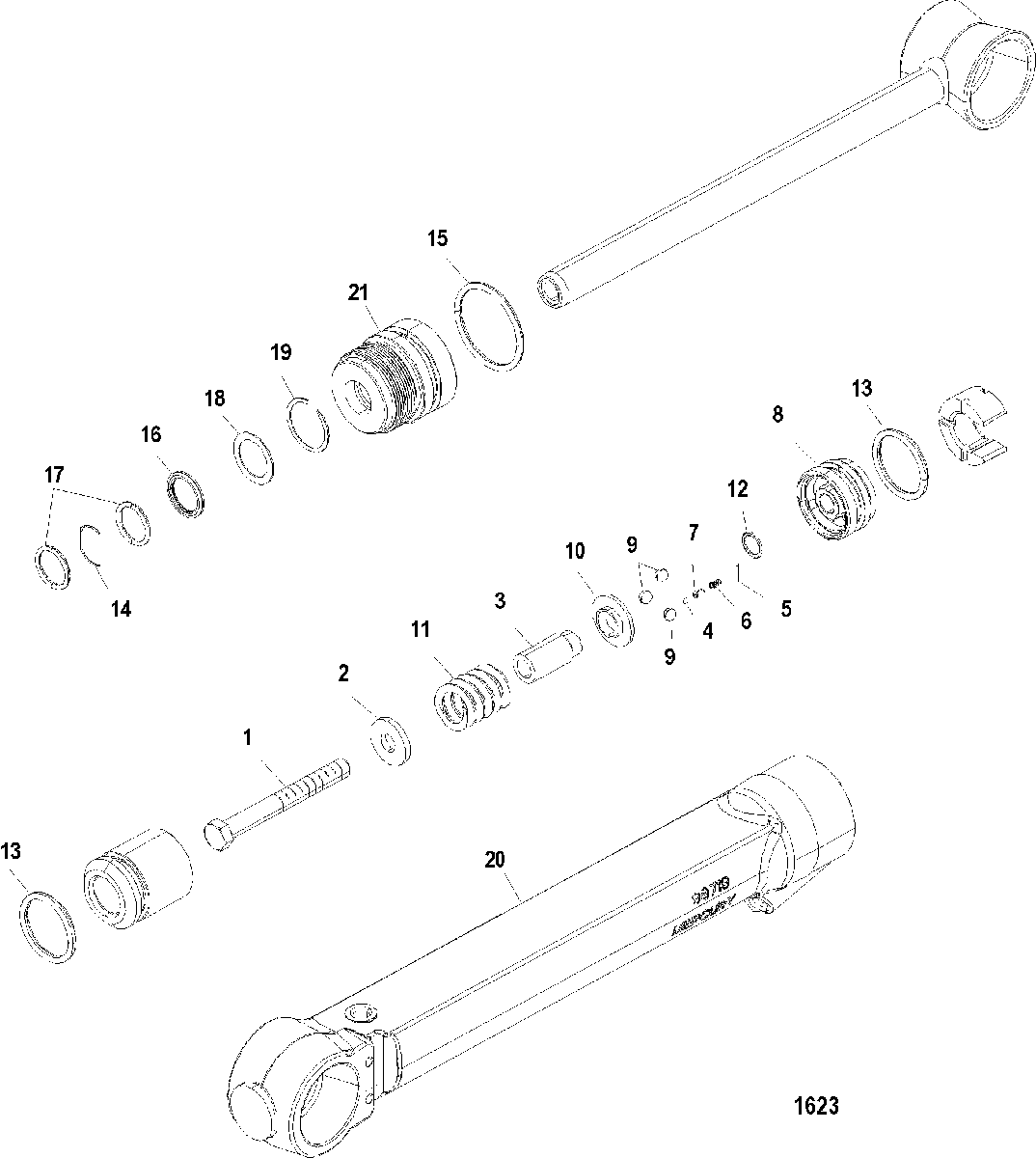

Trim Cylinder Components для Mercruiser - BRAVO XR THREE 0W240000 & Up
-
№АртикулНазвание
-
_87399A2 OVERHAUL KITOVERHAUL KIT
-
1NSS NOT SOLD SEPARATE, SCREW (M10 x 85)NOT SOLD SEPARATE, SCREW (M10 x 85)
-
2NSS NOT SOLD SEPARATE, WASHERNOT SOLD SEPARATE, WASHER
-
3NSS NOT SOLD SEPARATE, GUIDENOT SOLD SEPARATE, GUIDE
-
4NSS NOT SOLD SEPARATE, BALL-Steel (.109 Diameter)NOT SOLD SEPARATE, BALL-Steel (.109 Diameter)
-
5NSS NOT SOLD SEPARATE, PINNOT SOLD SEPARATE, PIN
-
6NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
7NSS NOT SOLD SEPARATE, EYELETNOT SOLD SEPARATE, EYELET
-
8NSS NOT SOLD SEPARATE, PISTONNOT SOLD SEPARATE, PISTON
-
9NSS NOT SOLD SEPARATE, BALL (.250 Diameter)NOT SOLD SEPARATE, BALL (.250 Diameter)
-
10NSS NOT SOLD SEPARATE, PUSHERNOT SOLD SEPARATE, PUSHER
-
11NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
-25-87400A2 SEAL KITSEAL KIT
-
12NSS NOT SOLD SEPARATE, O RINGNOT SOLD SEPARATE, O RING
-
13NSS NOT SOLD SEPARATE, O RINGNOT SOLD SEPARATE, O RING
-
14NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
15NSS NOT SOLD SEPARATE, O RINGNOT SOLD SEPARATE, O RING
-
16NSS NOT SOLD SEPARATE, SCRAPER RODNOT SOLD SEPARATE, SCRAPER ROD
-
17NSS NOT SOLD SEPARATE, O RINGNOT SOLD SEPARATE, O RING
-
18NSS NOT SOLD SEPARATE, WASHERNOT SOLD SEPARATE, WASHER
-
19NSS NOT SOLD SEPARATE, RING-RetainingNOT SOLD SEPARATE, RING-Retaining
-
2098703T TUBE, Port Cylinder
(CASTING # 98703 OR 98718)TUBE, Port Cylinder
(CASTING # 98703 OR 98718) -
2098704T TUBE, Starboard Cylinder
(CASTING # 98704 OR 98719)TUBE, Starboard Cylinder
(CASTING # 98704 OR 98719) -
2198-8M0118340 CAPCAP
