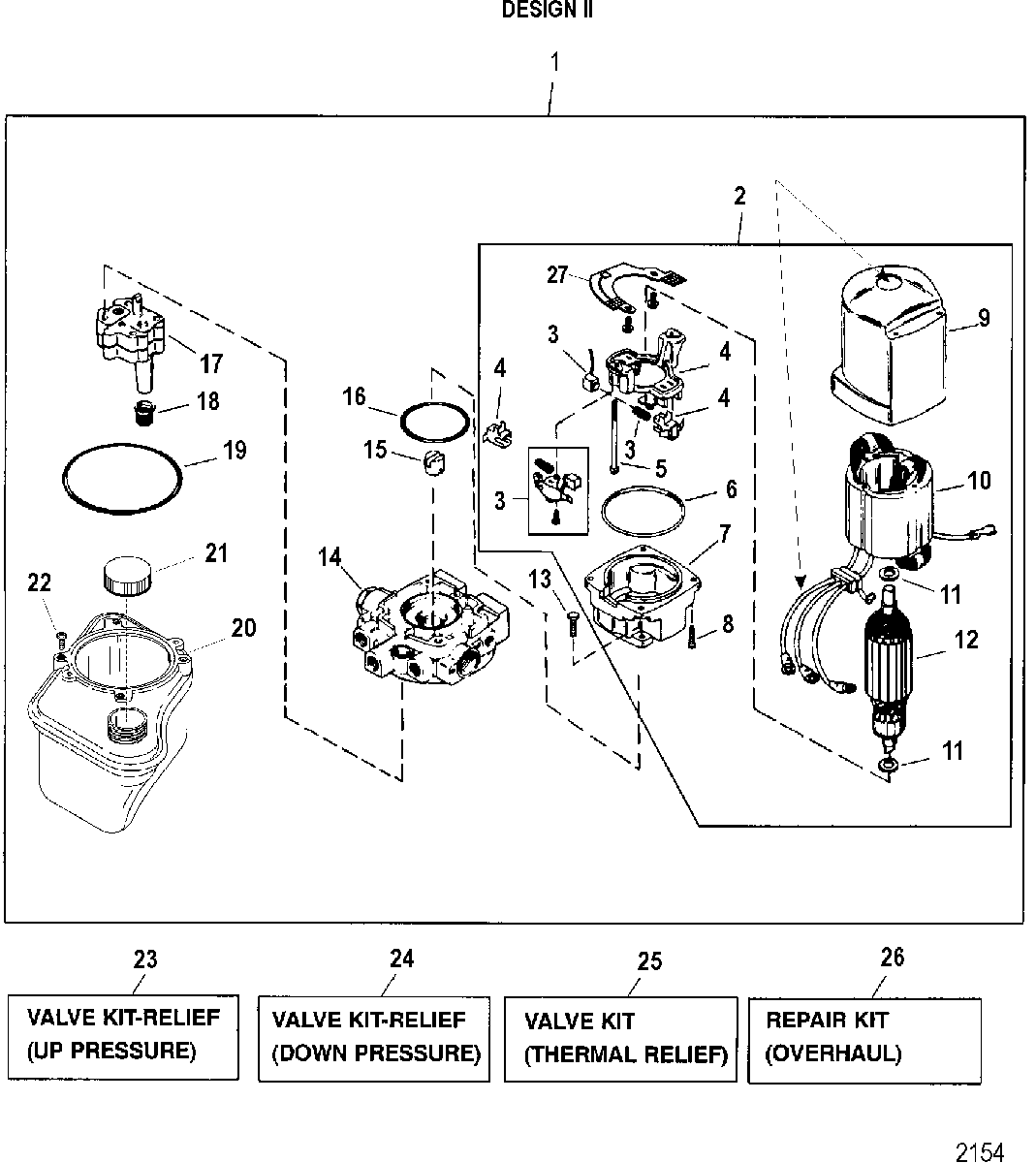

PUMP/MOTOR(TOP MT RESERVOIR)(DESIGN II-14336A25) для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY
(DESIGN-II -Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)PUMP/MOTOR ASSEMBLY
(DESIGN-II -Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
2891736T MOTOR ASSEMBLY (Complete)
(DESIGN-II -Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)MOTOR ASSEMBLY (Complete)
(DESIGN-II -Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
3891737 BRUSH KITBRUSH KIT
-
4891738 HOLDER ASSEMBLY, BrushHOLDER ASSEMBLY, Brush
-
510-891739 SCREW, Brush HolderSCREW, Brush Holder
-
625-891740 O-RINGO-RING
-
7NSS NOT SOLD SEPARATE, END CAP ASSEMBLYNOT SOLD SEPARATE, END CAP ASSEMBLY
-
810-891741 SCREWSCREW
-
9NSS NOT SOLD SEPARATE, COVER ASSEMBLYNOT SOLD SEPARATE, COVER ASSEMBLY
-
10NSS NOT SOLD SEPARATE, FIELD and FRAME ASSEMBLYNOT SOLD SEPARATE, FIELD and FRAME ASSEMBLY
-
11NSS NOT SOLD SEPARATE, WASHER,ThrustNOT SOLD SEPARATE, WASHER,Thrust
-
12NSS NOT SOLD SEPARATE, ARMATURENOT SOLD SEPARATE, ARMATURE
-
1310-823444 SCREWSCREW
-
14808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
15803852 COUPLINGCOUPLING
-
1625-89498 O-RING
(Motor End)O-RING
(Motor End) -
1718529 PUMP ASSEMBLY
(Includes Screws)PUMP ASSEMBLY
(Includes Screws) -
1835-89496 FILTERFILTER
-
1925-17645 O-RING
(Reservoir End)O-RING
(Reservoir End) -
20883166A2 RESERVOIR KIT
(With Filters-Ref 18 and O-Ring Ref 19)RESERVOIR KIT
(With Filters-Ref 18 and O-Ring Ref 19) -
2136-865448A01 CAP, Oil ReservoirCAP, Oil Reservoir
-
2210-883167 SCREW, (#8-32)SCREW, (#8-32)
-
23812498A1 VALVE KIT, Relief (Up Pressure)VALVE KIT, Relief (Up Pressure)
-
24812499A1 VALVE KIT, Relief (Down Pressure)VALVE KIT, Relief (Down Pressure)
-
2595353A1 VALVE KIT, Relief (Thermal Relief)VALVE KIT, Relief (Thermal Relief)
-
2618545A1 REPAIR KIT (Overhaul)REPAIR KIT (Overhaul)
-
27892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference FilterBOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
