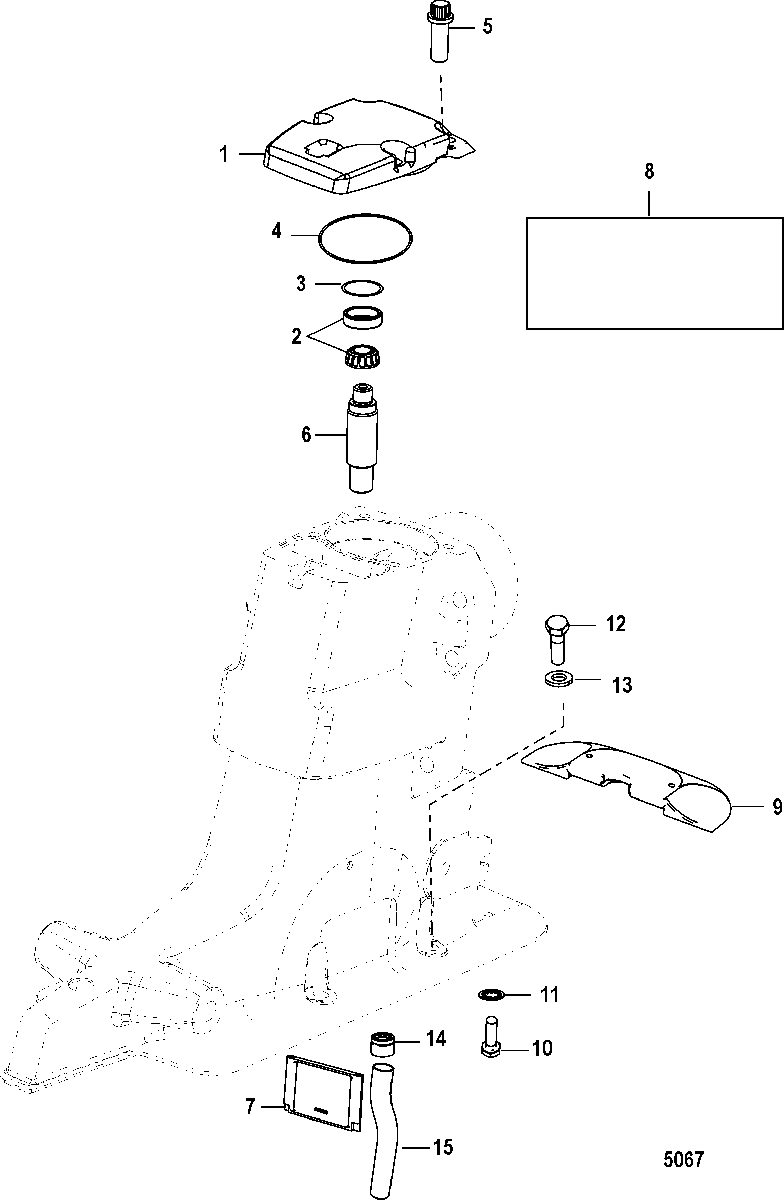

DRIVESHAFT HOUSING AND DRIVESHAFT для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up

  • №
    Артикул
    Название
  • 1
    828692A1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    31-32575T1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 3
    15-32563A1 SHIM SET
    SHIM SET
  • 4
    25-32546 O-RING
    O-RING
  • 5
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 6
    45-557961 DRIVESHAFT, Upper
    DRIVESHAFT, Upper
  • 7
    815932 FILLER WALL
    FILLER WALL
  • 8
    37-861431A98 DECAL SET (STANDARD ROTATION)
    DECAL SET (STANDARD ROTATION)
  • 8
    37-861431A99 DECAL SET (STANDARD ROTATION)
    DECAL SET (STANDARD ROTATION)
  • 8
    37-861431A05 DECAL SET (STANDARD ROTATION)
    SN# 0W535000 & Up
    DECAL SET (STANDARD ROTATION)
    SN# 0W535000 & Up
  • 8
    37-861446A99 DECAL SET (COUNTER ROTATION)
    DECAL SET (COUNTER ROTATION)
  • 8
    37-861446A99 DECAL SET (COUNTER ROTATION)
    DECAL SET (COUNTER ROTATION)
  • 8
    37-898111A05 DECAL SET (COUNTER ROTATION)
    SN# 0W535000 & Up
    DECAL SET (COUNTER ROTATION)
    SN# 0W535000 & Up
  • 9
    97-821629Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 10
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 11
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 12
    10-816601 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 13
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 14
    26-88397 SEAL
    SEAL
  • 15
    32-860220 TUBE, Water
    TUBE, Water
  • -
    26-88397A1 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
