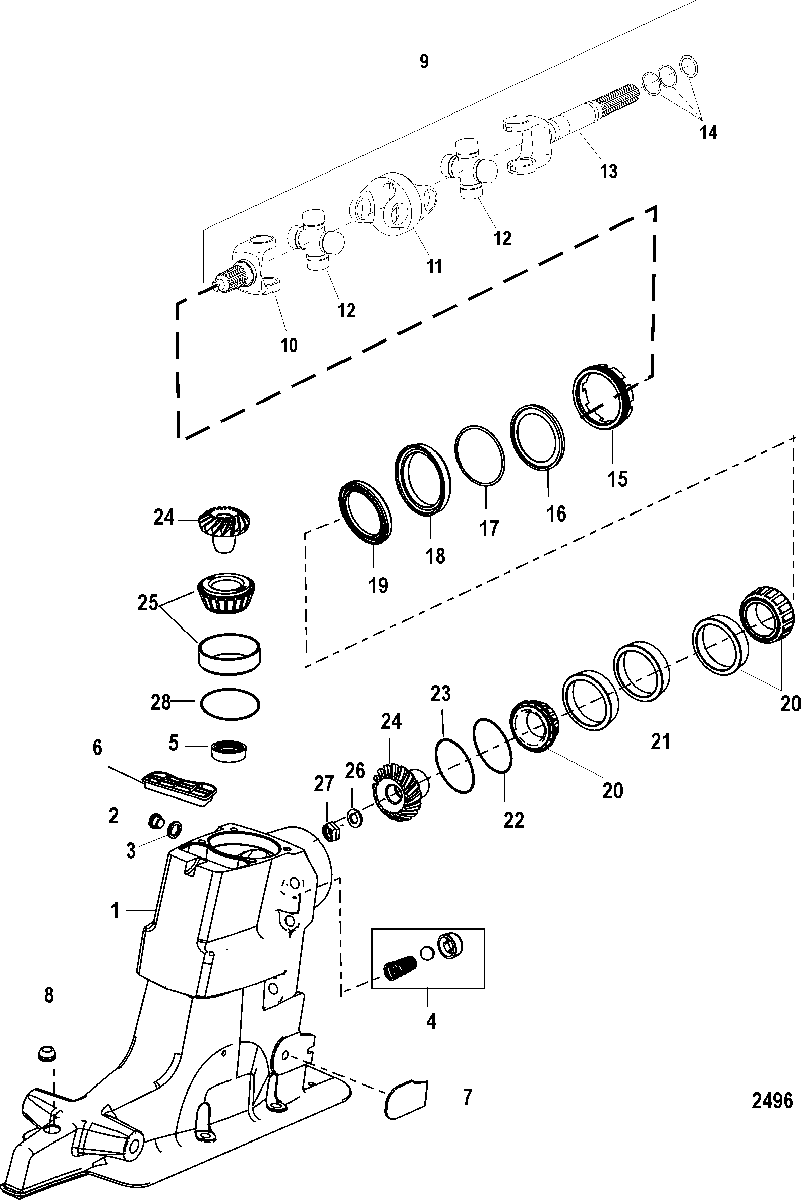

DRIVESHAFT HOUSING AND DRIVE GEARS для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up

  • №
    Артикул
    Название
  • 1
    1547-861063A4 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    10-79953Q04 SCREW KIT, (.375-16 x .250) , Drain
    SCREW KIT, (.375-16 x .250) , Drain
  • 3
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 4
    24-17997A1 SPRING KIT
    SPRING KIT
  • 5
    26-66302 SEAL, Oil
    SN# 0M400410 & Below
    SEAL, Oil
    SN# 0M400410 & Below
  • 5
    26-864319 SEAL, Oil
    SN# 0M400412 & Up
    SEAL, Oil
    SN# 0M400412 & Up
  • 6
    861738 PLUG
    SN# 0W847948 & Below
    PLUG
    SN# 0W847948 & Below
  • 6
    19-866511 PLUG
    SN# 0W847949 & Up
    PLUG
    SN# 0W847949 & Up
  • 7
    8M2015937 WEAR PAD
    (PORT)
    WEAR PAD
    (PORT)
  • 7
    879346T30 WEAR PAD
    (STARBOARD)
    WEAR PAD
    (STARBOARD)
  • 8
    19-824928001 PLUG, Rubber
    PLUG, Rubber
  • 9
    864281A2 UNIVERSAL JOINT
    (Gray) Meritor Assembly
    UNIVERSAL JOINT
    (Gray) Meritor Assembly
  • 9
    864281A2 UNIVERSAL JOINT
    (Black) GKN Assembly
    UNIVERSAL JOINT
    (Black) GKN Assembly
  • 10
    853635 YOKE, Gear End
    (Gray) Meritor Assembly
    YOKE, Gear End
    (Gray) Meritor Assembly
  • 10
    864282T YOKE, Gear End
    (Black) GKN Assembly
    YOKE, Gear End
    (Black) GKN Assembly
  • 11
    393831 SOCKET, Center
    (Gray) Meritor Assembly
    SOCKET, Center
    (Gray) Meritor Assembly
  • 11
    865503T SOCKET, Center
    (Black) GKN Assembly
    SOCKET, Center
    (Black) GKN Assembly
  • 12
    805536A2 CROSS AND BEARING
    (Gray) Meritor Assembly
    CROSS AND BEARING
    (Gray) Meritor Assembly
  • 12
    865496A02 CROSS AND BEARING
    (Black) GKN Assembly
    CROSS AND BEARING
    (Black) GKN Assembly
  • 13
    814819A3 YOKE, Coupler End
    (Gray) Meritor Assembly
    YOKE, Coupler End
    (Gray) Meritor Assembly
  • 13
    864281A01 YOKE, Coupler End
    (Black) GKN Assembly
    YOKE, Coupler End
    (Black) GKN Assembly
  • 14
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 14
    25-35027 O-RING, (1.046)
    O-RING, (1.046)
  • 15
    8168112 RETAINER
    RETAINER
  • 16
    35983 RING
    RING
  • 17
    25-70937 O-RING
    O-RING
  • 18
    66081A2 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 19
    26-823894 SEAL, Oil
    SEAL, Oil
  • 20
    31-30894A5 BEARING KIT, Roller
    BEARING KIT, Roller
  • 21
    23-853649A1 SPACER, Bearing Cup
    SPACER, Bearing Cup
  • 22
    15-35980A1 SHIM SET
    SHIM SET
  • 23
    23-8M0124132 SHIM, Spacer
    SHIM, Spacer
  • 24
    43-853641A2 GEAR KIT, (20-22 GEARS)
    (1.47:1 RATIO)
    GEAR KIT, (20-22 GEARS)
    (1.47:1 RATIO)
  • 24
    43-853640A2 GEAR KIT, (24-24 GEARS)
    (1.62:1 AND 2.00:1 RATIO)
    GEAR KIT, (24-24 GEARS)
    (1.62:1 AND 2.00:1 RATIO)
  • 24
    43-853643A2 GEAR KIT, (17-19 GEARS)
    (1.81:1 RATIO)
    GEAR KIT, (17-19 GEARS)
    (1.81:1 RATIO)
  • 24
    43-853642A2 GEAR KIT, (20-24 GEARS)
    (1.94:1 AND 2.40:1 RATIO)
    GEAR KIT, (20-24 GEARS)
    (1.94:1 AND 2.40:1 RATIO)
  • 25
    31-35990A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 25
    31-32573A1 BEARING ASSEMBLY, Roller
    (1.47:1 RATIO ONLY)
    BEARING ASSEMBLY, Roller
    (1.47:1 RATIO ONLY)
  • 26
    12-45810 WASHER
    WASHER
  • 27
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
  • 28
    15-36178A02 SHIM SET
    SHIM SET
  • -
    26-88397A1 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
