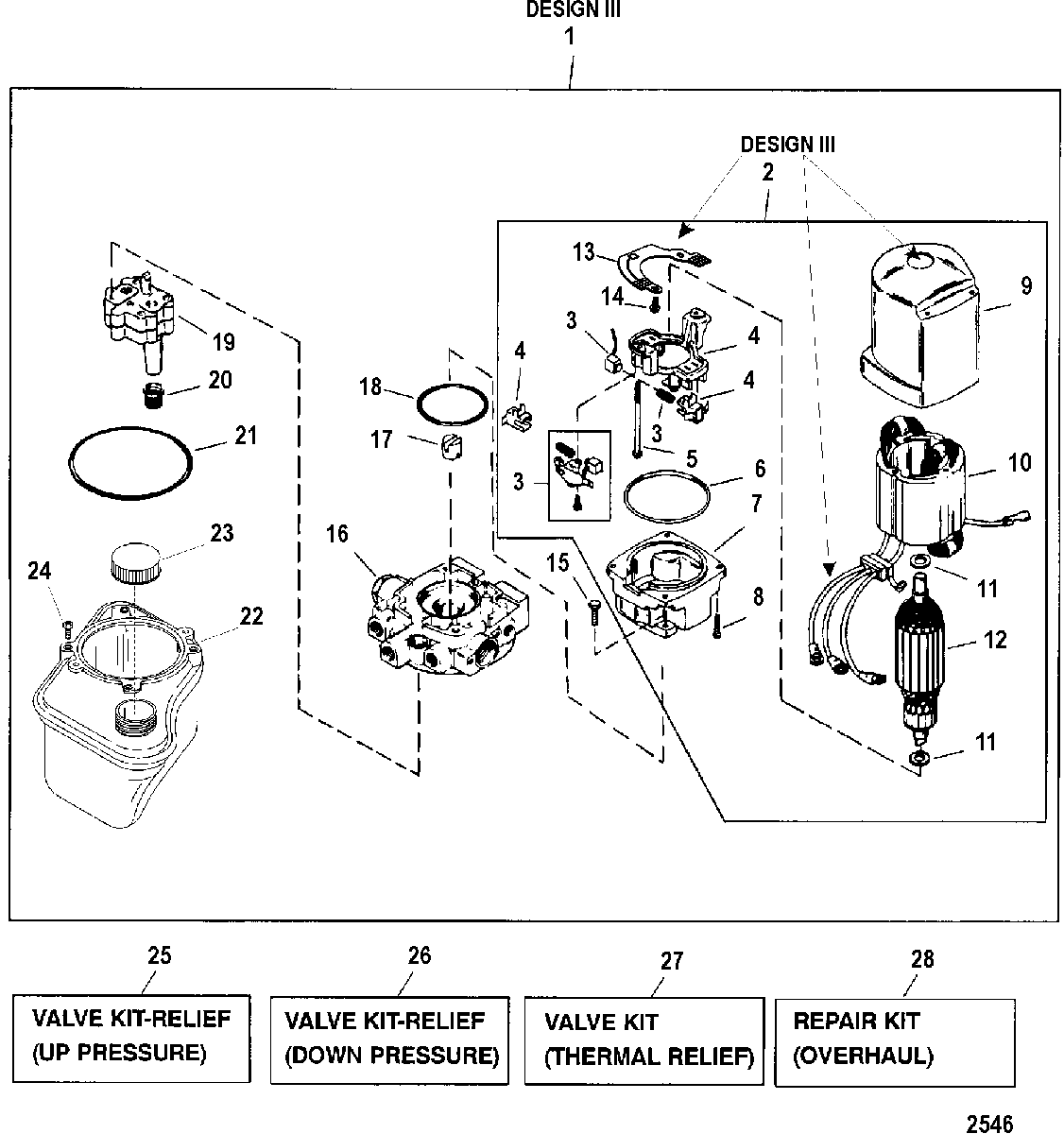

PUMP/MOTOR(TOP MT RESERVOIR) (DESIGN III - 14336A31) для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY
    (Design III - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
    PUMP/MOTOR ASSEMBLY
    (Design III - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
  • 2
    891736T MOTOR ASSEMBLY (Complete)
    (Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
    MOTOR ASSEMBLY (Complete)
    (Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
  • 3
    891737 BRUSH KIT
    BRUSH KIT
  • 4
    891738 HOLDER ASSEMBLY, Brushes
    HOLDER ASSEMBLY, Brushes
  • 5
    10-891739 SCREW, Brush Holder
    SCREW, Brush Holder
  • 6
    25-891740 O-RING
    O-RING
  • 7
    NSS NOT SOLD SEPARATE, END CAP ASSEMBLY
    NOT SOLD SEPARATE, END CAP ASSEMBLY
  • 8
    10-891741 SCREW
    SCREW
  • 9
    NSS NOT SOLD SEPARATE, COVER ASSEMBLY-(With Bearing)
    NOT SOLD SEPARATE, COVER ASSEMBLY-(With Bearing)
  • 10
    NSS NOT SOLD SEPARATE, FIELD AND FRAME ASSEMBLY
    NOT SOLD SEPARATE, FIELD AND FRAME ASSEMBLY
  • 11
    NSS NOT SOLD SEPARATE, WASHER-Thrust
    NOT SOLD SEPARATE, WASHER-Thrust
  • 12
    NSS NOT SOLD SEPARATE, ARMATURE
    NOT SOLD SEPARATE, ARMATURE
  • 13
    892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
    BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
  • 14
    NSS NOT SOLD SEPARATE, SCREW
    NOT SOLD SEPARATE, SCREW
  • 15
    10-823444 SCREW
    SCREW
  • 16
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 17
    803852 COUPLING
    COUPLING
  • 18
    25-89498 O-RING (Motor End)
    O-RING (Motor End)
  • 19
    18529 PUMP ASSEMBLY (With Screws)
    PUMP ASSEMBLY (With Screws)
  • 20
    35-89496 FILTER
    FILTER
  • 21
    25-17645 O-RING (Reservoir End)
    O-RING (Reservoir End)
  • 22
    883166A2 RESERVOIR KIT
    (With Filters-Ref 20 And O Ring-Ref 21)
    RESERVOIR KIT
    (With Filters-Ref 20 And O Ring-Ref 21)
  • 23
    36-865448A01 CAP, Oil Reservoir
    (Standard)
    CAP, Oil Reservoir
    (Standard)
  • 23
    36-865448A01 CAP, Oil Reservoir, Oil Reservoir
    (Rough Water Application)
    CAP, Oil Reservoir, Oil Reservoir
    (Rough Water Application)
  • 24
    10-883167 SCREW, (#8-32)
    SCREW, (#8-32)
  • 25
    812498A1 VALVE KIT, Relief (UP Pressure)
    VALVE KIT, Relief (UP Pressure)
  • 26
    812499A1 VALVE KIT, Relief (Down Pressure)
    VALVE KIT, Relief (Down Pressure)
  • 27
    95353A1 VALVE KIT, Relief (Thermal Relief)
    VALVE KIT, Relief (Thermal Relief)
  • 28
    18545A1 REPAIR KIT (Overhaul)
    REPAIR KIT (Overhaul)
