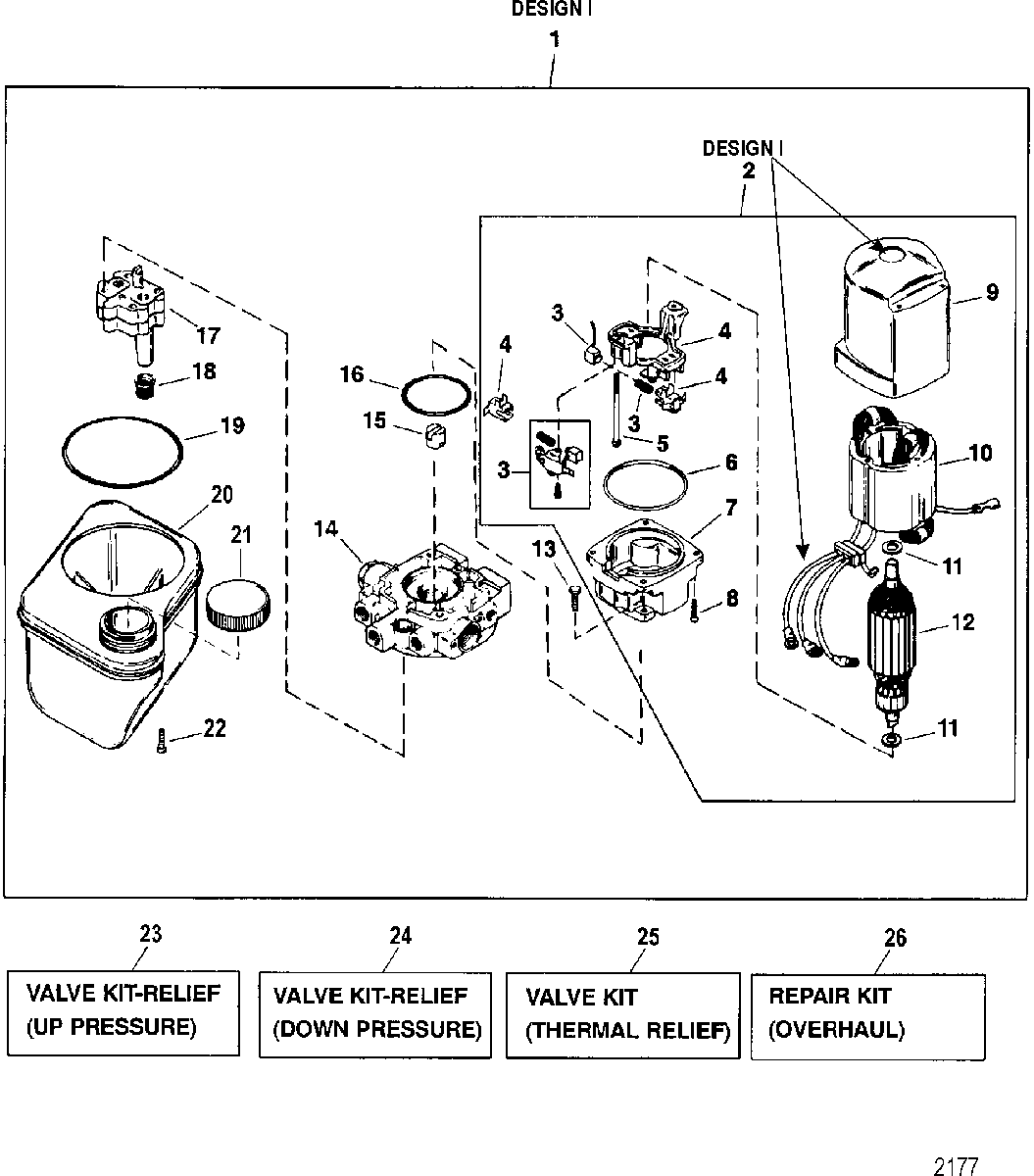

PUMP/MOTOR(BOTTOM MT RESERVOIR)(DESIGN I-14336A8) для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY
    (Bottom Mounted Reservoir)(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    PUMP/MOTOR ASSEMBLY
    (Bottom Mounted Reservoir)(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 2
    891736T MOTOR ASSEMBLY
    (Design I -Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    MOTOR ASSEMBLY
    (Design I -Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 3
    891736T BRUSH KIT
    BRUSH KIT
  • 4
    891736T HOLDER KIT
    HOLDER KIT
  • 5
    891736T SCREW
    SCREW
  • 6
    891736T O-RING
    O-RING
  • 7
    891736T END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 8
    891736T SCREW
    SCREW
  • 9
    891736T COVER ASSEMBLY
    COVER ASSEMBLY
  • 10
    891736T FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 11
    891736T WASHER
    WASHER
  • 12
    891736T ARMATURE
    ARMATURE
  • 13
    10-823444 SCREW
    SCREW
  • 14
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 15
    803852 COUPLING
    COUPLING
  • 16
    25-89498 O-RING
    O-RING
  • 17
    18529 PUMP ASSEMBLY (Includes Screws)
    PUMP ASSEMBLY (Includes Screws)
  • 18
    35-89496 FILTER
    FILTER
  • 19
    25-17645 O-RING
    O-RING
  • 20
    18525A1 RESERVOIR
    RESERVOIR
  • 21
    36-865448A01 CAP, Oil Reservoir (With Vent Hole)
    CAP, Oil Reservoir (With Vent Hole)
  • 22
    10-18527 SCREW (Includes O-RING)
    SCREW (Includes O-RING)
  • 23
    812498A1 VALVE KIT, Relief (Up Pressure)
    VALVE KIT, Relief (Up Pressure)
  • 24
    812499A1 VALVE KIT, Relief (Down Pressure)
    VALVE KIT, Relief (Down Pressure)
  • 25
    95353A1 VALVE KIT, Relief (Thermal Relief)
    VALVE KIT, Relief (Thermal Relief)
  • 26
    18545A1 REPAIR KIT (Overhaul)
    REPAIR KIT (Overhaul)
  • N/S
    41218 DIPSTICK
    DIPSTICK
