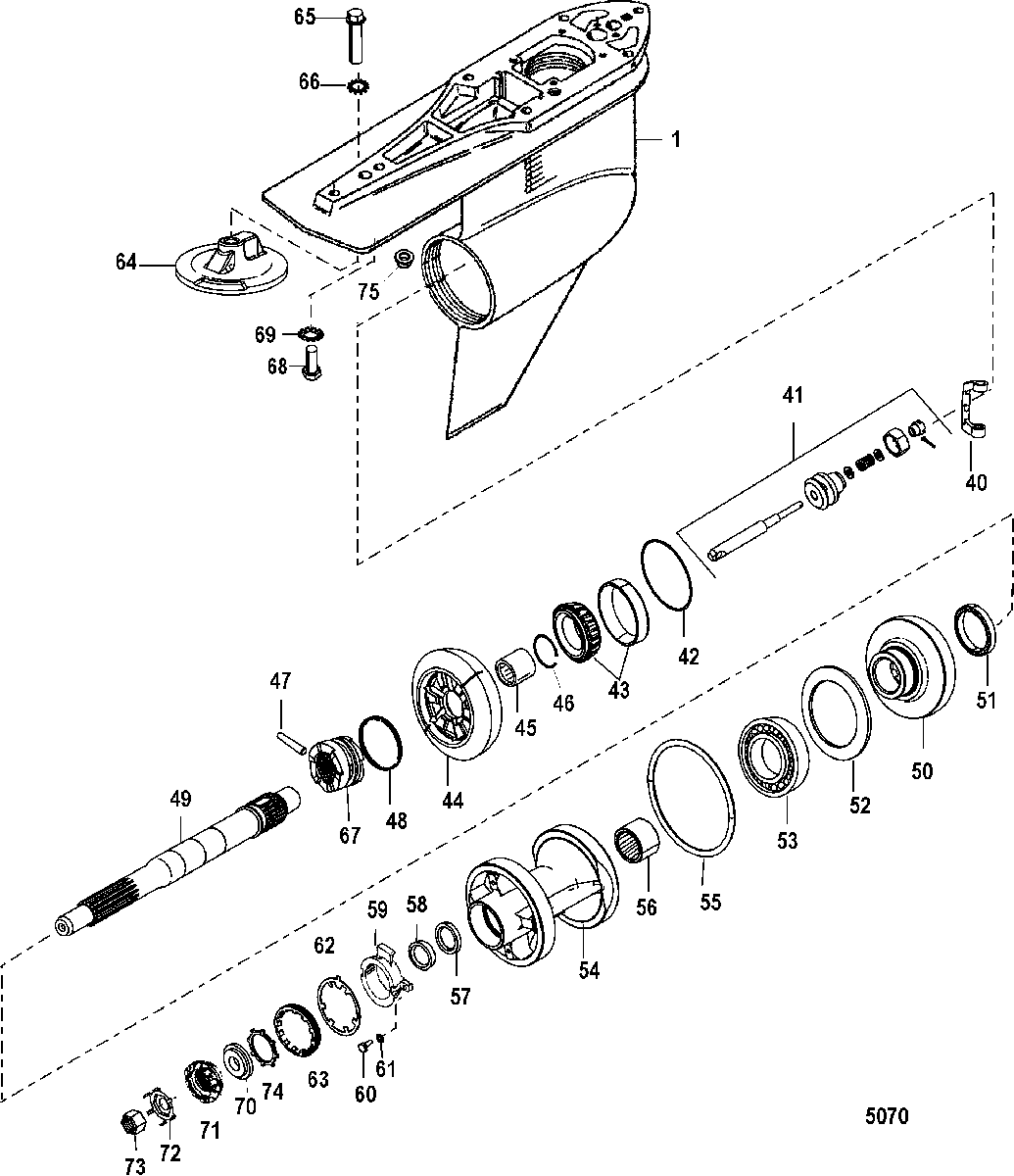

GEAR HOUSING(PROP SHAFT)(STANDARD ROTATION) для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up

  • №
    Артикул
    Название
  • -
    1623-815822A53 GEAR HOUSING ASSEMBLY, Standard Rotation (COMPLETE)
    (1.47, 1.62, 1.81, AND 1.94 RATIO)
    GEAR HOUSING ASSEMBLY, Standard Rotation (COMPLETE)
    (1.47, 1.62, 1.81, AND 1.94 RATIO)
  • -
    1623-815822A55 GEAR HOUSING ASSEMBLY, Standard Rotation (COMPLETE)
    (2.00:1 AND 2.40:1 RATIO)
    GEAR HOUSING ASSEMBLY, Standard Rotation (COMPLETE)
    (2.00:1 AND 2.40:1 RATIO)
  • 1
    1623-815822A36 GEAR HOUSING ASSEMBLY (BASIC)
    GEAR HOUSING ASSEMBLY (BASIC)
  • 40
    8M2009865 CRANK, Shift
    CRANK, Shift
  • 41
    818349T1 SPOOL KIT, Shift
    SPOOL KIT, Shift
  • 42
    15-8M0063266 SHIM SET
    SHIM SET
  • 43
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 44
    43-878087A2 GEAR SET, Forward With Pinion
    (1.47, 1.62, 1.81, AND 1.94 RATIO)
    GEAR SET, Forward With Pinion
    (1.47, 1.62, 1.81, AND 1.94 RATIO)
  • 44
    43-878617A2 GEAR SET, Forward With Pinion
    (2.00:1 AND 2.40:1 RATIO)
    GEAR SET, Forward With Pinion
    (2.00:1 AND 2.40:1 RATIO)
  • 45
    31-30895T BEARING, Needle
    BEARING, Needle
  • 46
    53-856823 RING, Retaining
    RING, Retaining
  • 47
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 48
    24-30893 SPRING
    SPRING
  • 49
    44-8M0140445 PROPELLER SHAFT
    PROPELLER SHAFT
  • 50
    43-828073A1 GEAR, Reverse
    (1.47:1, 1.62:1, 1.81:1, AND 1.94:1 RATIO)
    GEAR, Reverse
    (1.47:1, 1.62:1, 1.81:1, AND 1.94:1 RATIO)
  • 50
    43-853593A1 GEAR, Reverese
    (2.00:1 AND 2.40:1 RATIO)
    GEAR, Reverese
    (2.00:1 AND 2.40:1 RATIO)
  • 51
    23-824108 SPACER
    SPACER
  • 52
    681001 RING, Thrust
    RING, Thrust
  • 53
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 54
    818763A10 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 55
    25-31534 O-RING
    O-RING
  • 56
    31-30956T BEARING, Needle
    BEARING, Needle
  • 57
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 58
    26-12224 SEAL, Oil (OUTSIDE)
    SEAL, Oil (OUTSIDE)
  • 59
    97-806105Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 60
    10-806290 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 61
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 62
    14-18323 TAB WASHER
    TAB WASHER
  • 63
    8M2000347 RETAINER
    RETAINER
  • 64
    97-76214Q5 ANODE KIT
    (1.47:1, 1.62:1, AND 1.81:1 RATIO)
    ANODE KIT
    (1.47:1, 1.62:1, AND 1.81:1 RATIO)
  • 64
    97-31640Q4 TRIM TAB
    (1.94:1, 2.00:1, AND 2.40:1 RATIO)
    TRIM TAB
    (1.94:1, 2.00:1, AND 2.40:1 RATIO)
  • 65
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 66
    13-806210 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 67
    52-853594T CLUTCH
    CLUTCH
  • 68
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 69
    13-35479 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 70
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 71
    12-31211Q03 WASHER, Splined
    WASHER, Splined
  • 72
    14-816629Q TAB WASHER
    TAB WASHER
  • 73
    11-52707Q1 PROP NUT
    PROP NUT
  • 74
    13-423511 LOCKWASHER, Toothed
    LOCKWASHER, Toothed
  • 75
    11-859135 NUT, (.437-20)
    NUT, (.437-20)
  • -
    26-816575A3 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    97-888756Q03 ANODE KIT, Aluminum
    ANODE KIT, Aluminum
  • -
    97-888755Q03 ANODE KIT, Magnesium
    ANODE KIT, Magnesium
