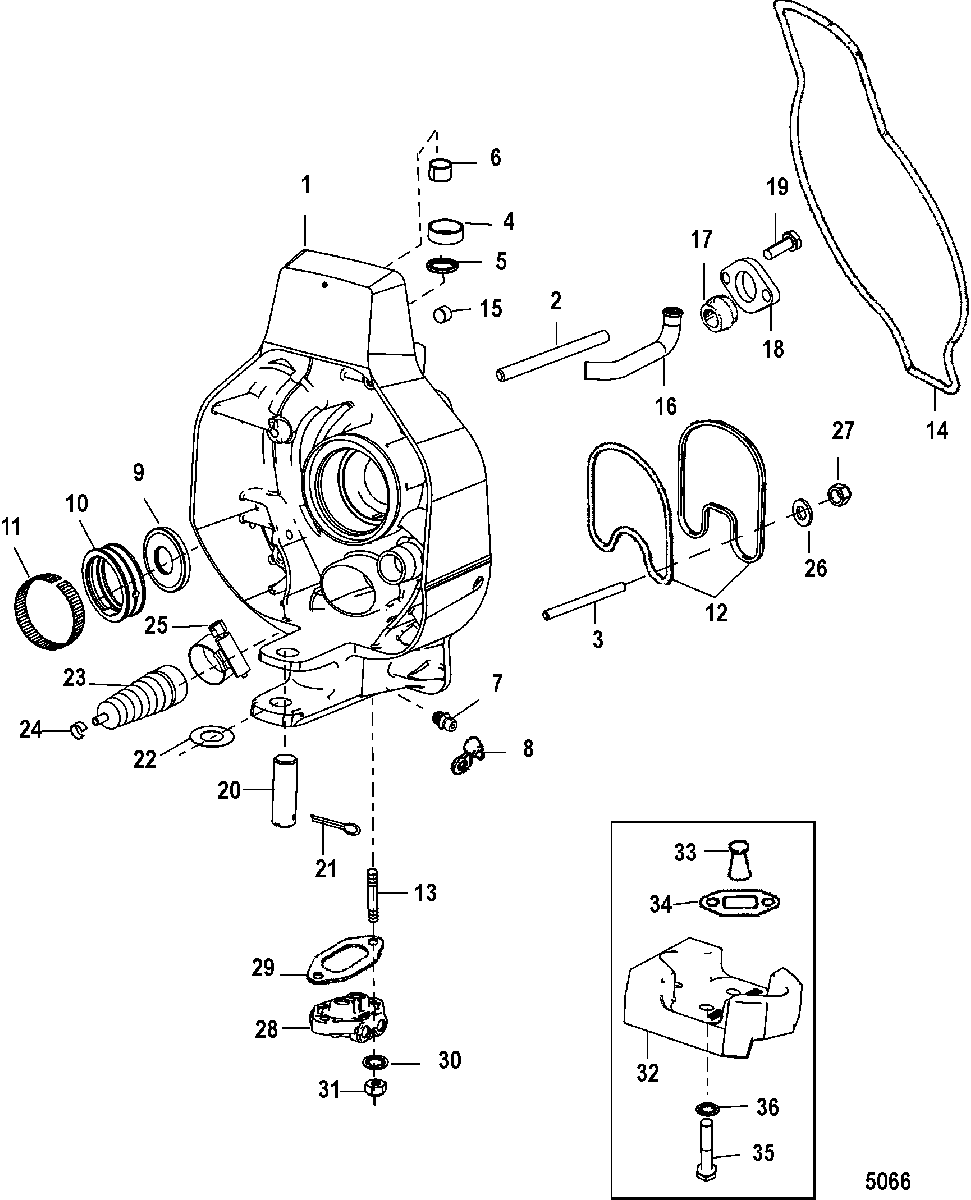

GIMBAL HOUSING для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up

  • №
    Артикул
    Название
  • 1
    8M0062568 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 2
    16-56296 STUD, (.437-20 x 4.750)
    STUD, (.437-20 x 4.750)
  • 3
    16-818834 STUD, (.437-20 x 4.250)
    STUD, (.437-20 x 4.250)
  • 4
    23-983571 BUSHING
    BUSHING
  • 5
    26-8M2005029 SEAL, Oil
    SEAL, Oil
  • 6
    23-98356 BUSHING
    BUSHING
  • 7
    22-74036 FITTING, Grease
    (With greased bearing)
    FITTING, Grease
    (With greased bearing)
  • 7
    10-8M2015913 PLUG, (.250-28 x .320)
    (With non-greased bearing)
    PLUG, (.250-28 x .320)
    (With non-greased bearing)
  • 8
    19-77633Q LUBRICAP
    LUBRICAP
  • 9
    26-88416 SEAL, Oil
    SEAL, Oil
  • 10
    30-879194A01 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 11
    61075 TOLERANCE RING
    TOLERANCE RING
  • 12
    41802 SEAL, Rubber, Without Tabs
    SEAL, Rubber, Without Tabs
  • 12
    NSS NOT SOLD SEPARATE, Seal With Tabs
    NOT SOLD SEPARATE, Seal With Tabs
  • 13
    16-56766 STUD, (.250-20/.250-28 x 1.380)
    STUD, (.250-20/.250-28 x 1.380)
  • 14
    43713 SEAL
    SEAL
  • 15
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 16
    32-416721 TUBE, Water
    TUBE, Water
  • 17
    23-8165991 BUSHING
    BUSHING
  • 18
    8M0092452 COVER
    COVER
  • 19
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 20
    17-8M0073409 SWIVEL PIN, Lower
    SWIVEL PIN, Lower
  • 21
    18-54929 COTTER PIN
    COTTER PIN
  • 22
    12-32518 WASHER
    WASHER
  • 23
    74639A2 BELLOWS, Shift Cable
    BELLOWS, Shift Cable
  • 24
    54-8M0090424 CLAMP
    CLAMP
  • 25
    54-815504320 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 26
    12-34567 WASHER
    WASHER
  • 27
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 28
    8M0137703 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 29
    27-988231 GASKET
    GASKET
  • 30
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 31
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 32
    97-821631Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 33
    12077 SEAL
    SEAL
  • 34
    27-995061 GASKET
    GASKET
  • 35
    10-86885 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 36
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • -
    22-88847A1 PLUG KIT, Access Hole
    PLUG KIT, Access Hole
