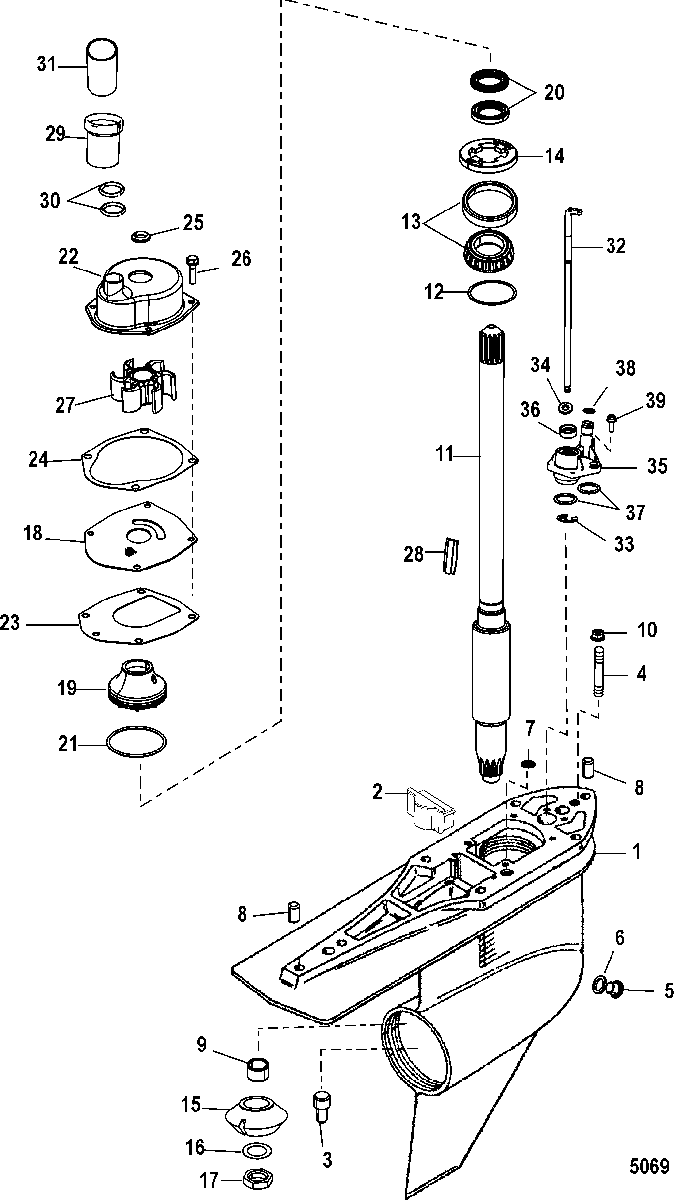

GEAR HOUSING(DRIVESHAFT)(COUNTER ROTATION) для Mercruiser - ALPHA ONE (GEN.II) 1998 AND UP 0L100040 & Up

  • №
    Артикул
    Название
  • -
    1623-815822A47 GEAR HOUSING ASSEMBLY, Counter Rotation (COMPLETE)
    (1.47:1 - 1.62:1 - 1.81:1 - 1.94:1 RATIO)
    GEAR HOUSING ASSEMBLY, Counter Rotation (COMPLETE)
    (1.47:1 - 1.62:1 - 1.81:1 - 1.94:1 RATIO)
  • -
    1623-815822A52 GEAR HOUSING ASSEMBLY, Counter Rotation (COMPLETE)
    (2.00:1 RATIO)
    GEAR HOUSING ASSEMBLY, Counter Rotation (COMPLETE)
    (2.00:1 RATIO)
  • 1
    1623-815822A36 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    821526001 FILLER BLOCK
    FILLER BLOCK
  • 3
    17-379721 PIN
    PIN
  • 4
    16-57984 STUD, (.437-14/.437-20 x 2.380)
    STUD, (.437-14/.437-20 x 2.380)
  • 4
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 5
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 6
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 7
    26-455771 SEAL
    SEAL
  • 8
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 9
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 10
    11-859135 NUT, (.437-20)
    NUT, (.437-20)
  • 11
    45-8M0140449 DRIVESHAFT
    (1.47:1 AND 1.62:1 RATIO)
    DRIVESHAFT
    (1.47:1 AND 1.62:1 RATIO)
  • 11
    45-8M0140449 DRIVESHAFT
    (1.81:1 - 1.94:1 AND 2.00:1 RATIO)
    DRIVESHAFT
    (1.81:1 - 1.94:1 AND 2.00:1 RATIO)
  • 12
    15-8M0063267 SHIM SET
    SHIM SET
  • 13
    31-33138A1 BEARING ASSEMBLY, Tappered Roller
    BEARING ASSEMBLY, Tappered Roller
  • 14
    853651 RETAINER
    RETAINER
  • 15
    NSS NOT SOLD SEPARATE, GEAR-Pinion
    (SEE FORWARD GEAR ASSEMBLY)
    NOT SOLD SEPARATE, GEAR-Pinion
    (SEE FORWARD GEAR ASSEMBLY)
  • 16
    12-92721 WASHER
    WASHER
  • 17
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 18
    8172761 FACEPLATE
    FACEPLATE
  • 19
    807929A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 20
    26-66302 SEAL, Oil
    SN# 0M400411 & Below
    SEAL, Oil
    SN# 0M400411 & Below
  • 20
    26-864319 SEAL, Oil
    SN# 0M400412 & Up
    SEAL, Oil
    SN# 0M400412 & Up
  • 21
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 22
    817275A1 HOUSING KIT, Water Pump
    HOUSING KIT, Water Pump
  • 23
    27-430331 GASKET
    GASKET
  • 24
    27-8172771 GASKET
    GASKET
  • 25
    26-816575A2 SEAL KIT
    SEAL KIT
  • 26
    10-816928 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 27
    47-43026T2 IMPELLER
    IMPELLER
  • 28
    28-8M0032833 KEY
    KEY
  • 29
    816597A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 30
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 31
    23-816583 SLEEVE
    SLEEVE
  • 32
    8M0127949 SHIFT SHAFT, Lower
    SHIFT SHAFT, Lower
  • 33
    53-29641 E RING
    E RING
  • 34
    12-77674 WASHER
    WASHER
  • 35
    23-815921A20 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 36
    26-892361 SEAL, Oil
    SEAL, Oil
  • 37
    25-36318 O-RING, (.799)
    O-RING, (.799)
  • 38
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 39
    10-816928 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • --
    26-816575A3 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • --
    817275Q05 REBUILD KIT, Water Pump
    REBUILD KIT, Water Pump
  • --
    26-88397A1 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
