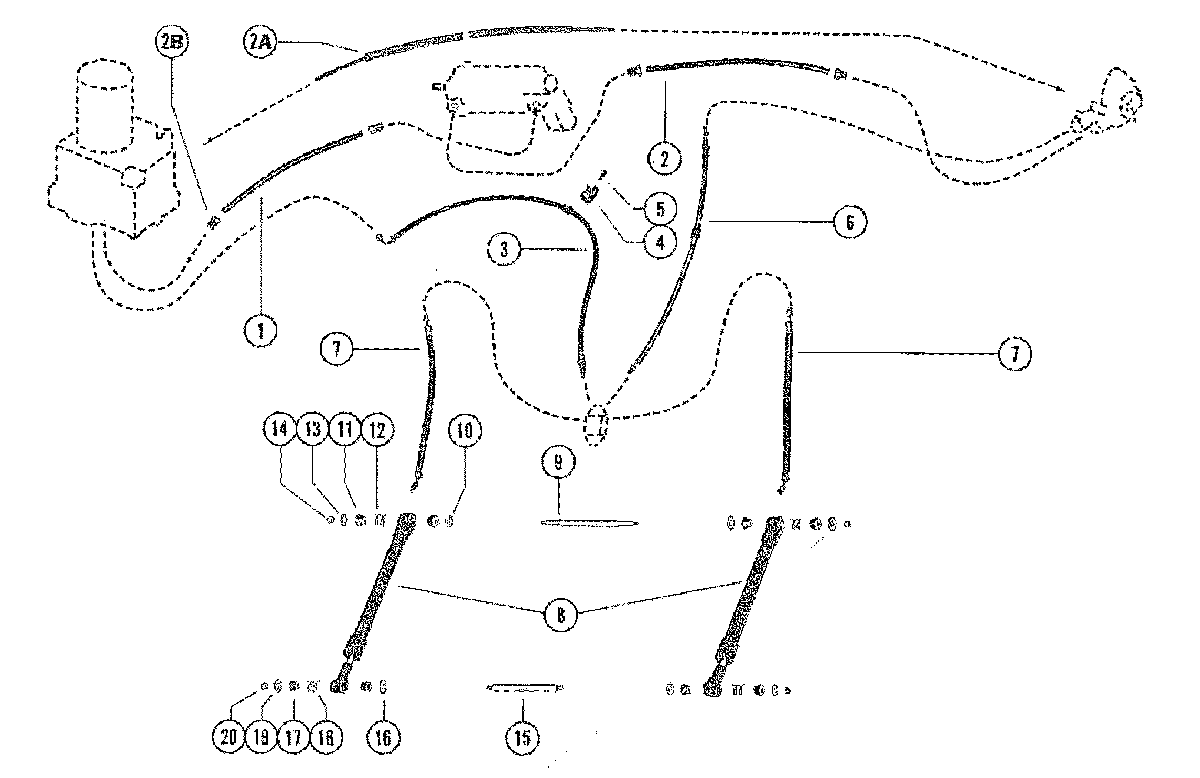

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    32-52951A1 TUBING, HYDRAULIC PUMP TO TRIM SENDER (19" OR 35")
    WITHOUT GIMBAL TRIM SENDER
    TUBING, HYDRAULIC PUMP TO TRIM SENDER (19" OR 35")
    WITHOUT GIMBAL TRIM SENDER
  • 2
    32-52951A1 TUBING, TRIM SENDER TO RESERVE VALVE (31" OR 21")
    WITHOUT GIMBAL TRIM SENDER
    TUBING, TRIM SENDER TO RESERVE VALVE (31" OR 21")
    WITHOUT GIMBAL TRIM SENDER
  • 2A
    32-52951A1 TUBING, HYDRAULIC PUMP TO REVERSE VALVE
    WITH GIMBAL TRIM SENDER
    TUBING, HYDRAULIC PUMP TO REVERSE VALVE
    WITH GIMBAL TRIM SENDER
  • 2B
    22-49718 FITTING, NUT - HYDRAULIC TUBE
    FITTING, NUT - HYDRAULIC TUBE
  • 3
    32-55816 HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (BLACK) - 18"
    HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (BLACK) - 18"
  • 4
    54-45806 CLAMP, HYDRAULIC HOSE TO TRANSOM PLATE
    CLAMP, HYDRAULIC HOSE TO TRANSOM PLATE
  • 5
    10-35519 SCREW, HYDRAULIC HOSE CLAMP ATTACHING (1/2")
    SCREW, HYDRAULIC HOSE CLAMP ATTACHING (1/2")
  • 6
    32-55815 HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 23 1/2")
    SERIAL 00000000-03780849
    HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 23 1/2")
    SERIAL 00000000-03780849
  • 7
    32-86036Q HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
    SERIAL 00000000-03780849
    HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
    SERIAL 00000000-03780849
  • 6
    32-59842 HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 29 1/2")
    SERIAL 03780850-09999999
    HOSE, HYDRAULIC - CONNNECTOR TO VALVE (GRAY) - 29 1/2")
    SERIAL 03780850-09999999
  • 7
    32-86036Q HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
    SERIAL 03780850-09999999
    HOSE, HYDRAULIC - CONNNECTOR TO TRIM CYLINDER (12 1/2")
    SERIAL 03780850-09999999
  • 8
    45706A14 TRIM CYLINDER ASSEMBLY, COMPLETE
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
    TRIM CYLINDER ASSEMBLY, COMPLETE
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
  • 8
    45522A3 PIVOT END REPAIR KIT, TRIM CYLINDER
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
    PIVOT END REPAIR KIT, TRIM CYLINDER
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
  • 8
    77442A1 OUTER TUBE REPAIR KIT, TRIM CYLINDER
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
    OUTER TUBE REPAIR KIT, TRIM CYLINDER
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
  • 8
    25-60342A2 "O" RING REPAIR KIT, TRIM CYLINDER
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
    "O" RING REPAIR KIT, TRIM CYLINDER
    SEE PAGE 16 FOR REPAIR KIT BREAKDOWN
  • 9
    17-45735 PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")
    PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")
  • 10
    12-45737 WASHER, FRONT ANCHOR PIN
    WASHER, FRONT ANCHOR PIN
  • 11
    23-89574 BUSHING, RUBBER - FRONT ANCHOR PIN
    BUSHING, RUBBER - FRONT ANCHOR PIN
  • 12
    24-46312 SPRING, FRONT ANCHOR PIN
    SPRING, FRONT ANCHOR PIN
  • 13
    12-46765 WASHER, FRONT ANCHOR PIN
    WASHER, FRONT ANCHOR PIN
  • 14
    11-82671013 NUT, FRONT ANCHOR PIN
    NUT, FRONT ANCHOR PIN
  • 15
    17-45738 PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HOUSING (7 1)
    PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HOUSING (7 1)
  • 16
    12-45737 WASHER, REAR ANCHOR PIN
    WASHER, REAR ANCHOR PIN
  • 17
    23-89574 BUSHING, RUBBER - REAR ANCHOR PIN
    BUSHING, RUBBER - REAR ANCHOR PIN
  • 18
    24-46312 SPRING, REAR ANCHOR PIN
    SPRING, REAR ANCHOR PIN
  • 19
    12-46765 WASHER, REAR ANCHOR PIN
    WASHER, REAR ANCHOR PIN
  • 20
    11-82671013 NUT, REAR ANCHOR PIN
    NUT, REAR ANCHOR PIN
