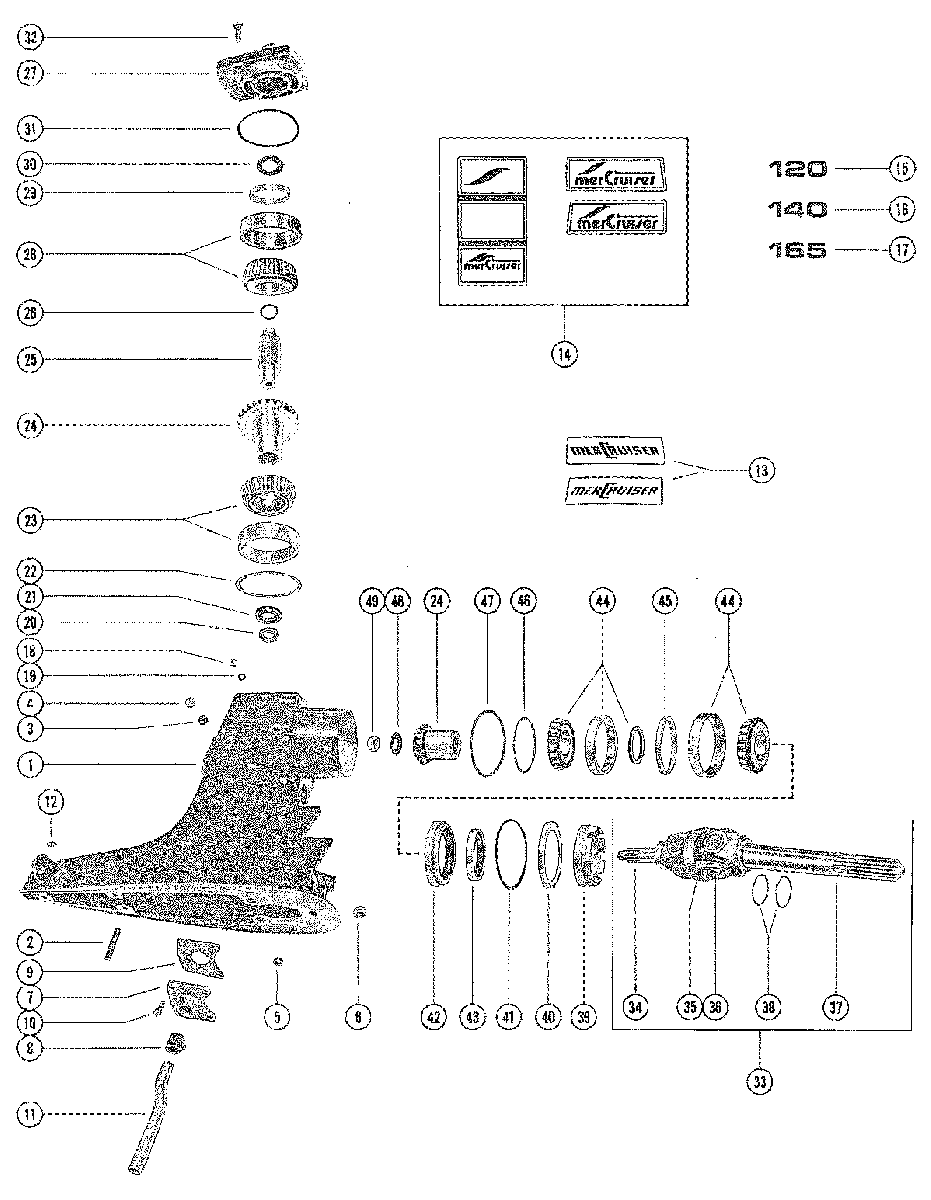

DIRVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    1547-9412A18 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    16-56295 STUD,DRIVE SHAFT HOUSING TO GEAR HOSUING(2 11/16")
    STUD,DRIVE SHAFT HOUSING TO GEAR HOSUING(2 11/16")
  • 3
    22-31704 PLUG,PIPE-DRIVE SHAFT HOUSING(WATER POCKET)
    PLUG,PIPE-DRIVE SHAFT HOUSING(WATER POCKET)
  • 4
    19-32652 WELCH PLUG,DRIVE SHAFT HOUSING
    WELCH PLUG,DRIVE SHAFT HOUSING
  • 5
    23-32632 BUSHING,DRIVE SHAFT HOUSING
    BUSHING,DRIVE SHAFT HOUSING
  • 6
    11-34933 NUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
    NUT,GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
  • 7
    42724A3 COVER ASSEMBLY,WATER POCKET-DRIVE SHAFT HOUSING
    COVER ASSEMBLY,WATER POCKET-DRIVE SHAFT HOUSING
  • 8
    26-36557 SEAL,RUBBER-WATER POCKET COVER
    SEAL,RUBBER-WATER POCKET COVER
  • 9
    27-558101 GASKET,WATER POCKET COVER
    GASKET,WATER POCKET COVER
  • 10
    10-28668 SCREW,WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")
    SCREW,WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")
  • 11
    32-54236 TUBE,WATER-WATER POCKET COVER
    TUBE,WATER-WATER POCKET COVER
  • 12
    19-32298 PLUG,TRIM TAB HOLE-DRIVE SHAFT HOUSING
    PLUG,TRIM TAB HOLE-DRIVE SHAFT HOUSING
  • 13
    37-56480A1 DECAL SET,DRIVE SHAFT HOUSING
    SERIAL 00000000-04530701
    DECAL SET,DRIVE SHAFT HOUSING
    SERIAL 00000000-04530701
  • 14
    37-76731A1 DECAL SET,DRIVE SHAFT HOUSING
    SERIAL 04530702-09999999
    DECAL SET,DRIVE SHAFT HOUSING
    SERIAL 04530702-09999999
  • 15
    37-76749 DECAL,DRIVE SHAFFT HOUSING -120
    SERIAL 04530702-09999999
    DECAL,DRIVE SHAFFT HOUSING -120
    SERIAL 04530702-09999999
  • 16
    37-76750 DECAL,DRIVE SHAFT HOUSING-140
    SERIAL 04530702-09999999
    DECAL,DRIVE SHAFT HOUSING-140
    SERIAL 04530702-09999999
  • 17
    37-76751 DECAL,DRIVE SHAFT HOUSING-165
    SERIAL 04530702-09999999
    DECAL,DRIVE SHAFT HOUSING-165
    SERIAL 04530702-09999999
  • 18
    10-79953Q04 SCREW,DRIVE SHAFT HOUSING FILLER AND VENT HOLE
    SCREW,DRIVE SHAFT HOUSING FILLER AND VENT HOLE
  • 19
    12-191833 WASHER,DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCREW
    WASHER,DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCREW
  • 20
    26-965031 OIL SEAL,DRIVE SHAFT HOUSING-LOWER
    OIL SEAL,DRIVE SHAFT HOUSING-LOWER
  • 21
    26-32511 OIL SEAL,GEAR CHAMBER-DRIVE SHAFT HOUSING
    OIL SEAL,GEAR CHAMBER-DRIVE SHAFT HOUSING
  • 22
    15-36178A02 SHIM,BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
    SHIM,BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
  • 23
    31-35990A1 TAPERED ROLLER BEARING ASSEMBLY,PINION GEAR
    TAPERED ROLLER BEARING ASSEMBLY,PINION GEAR
  • 24
    43-55778A3 GEAR ASSEMBLY,COMPLETE-MERCRUISER 120/140
    (20-24 GEAR RATIO)-7.98 RATIO
    GEAR ASSEMBLY,COMPLETE-MERCRUISER 120/140
    (20-24 GEAR RATIO)-7.98 RATIO
  • 24
    43-45814A5 GEAR ASSEMBLY,COMPLETE-MERCRUISER 165
    (24-24 GEAR RATIO)-1.65 RATIO
    GEAR ASSEMBLY,COMPLETE-MERCRUISER 165
    (24-24 GEAR RATIO)-1.65 RATIO
  • 25
    45-55796 DRIVE SHAFT,UPPER
    DRIVE SHAFT,UPPER
  • 26
    25-55801 "O" RING.UPPER DRIVE SHAFT
    "O" RING.UPPER DRIVE SHAFT
  • 27
    76098A1 COVER,TOP-DRIVE SHAFT HOUSING
    SERIAL 00000000-03134193
    COVER,TOP-DRIVE SHAFT HOUSING
    SERIAL 00000000-03134193
  • 28
    31-32575T1 BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 00000000-03134193
    BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 00000000-03134193
  • 29
    23-55798 SPACER,UPPER DRIVE SHAFT
    SERIAL 00000000-03134193
    SPACER,UPPER DRIVE SHAFT
    SERIAL 00000000-03134193
  • 30
    24-55797 SPRING,UPPER DRIVE SHAFT(TOP COVER)
    SERIAL 00000000-03134193
    SPRING,UPPER DRIVE SHAFT(TOP COVER)
    SERIAL 00000000-03134193
  • 27
    76098A1 COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
    SERIAL 03213658-03443920
    COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
    SERIAL 03213658-03443920
  • 28
    31-61100A1 BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 03213658-03443920
    BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 03213658-03443920
  • 30
    24-55797 SPRING,UPPER DRIVE SHAFT (TOP COVER0)
    SERIAL 03213658-03443920
    SPRING,UPPER DRIVE SHAFT (TOP COVER0)
    SERIAL 03213658-03443920
  • 27
    76098A1 COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
    SERIAL 03469428-04530701
    COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
    SERIAL 03469428-04530701
  • 28
    31-61100A1 BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 03469428-04530701
    BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 03469428-04530701
  • 30
    15-45691A1 SHIM,BEARING CUP TO COVER
    SERIAL 03469428-04530701
    SHIM,BEARING CUP TO COVER
    SERIAL 03469428-04530701
  • 27
    76098A1 COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
    SERIAL 04530702-09999999
    COVER ASSEMBLY,TOP-DRIVE SHAFT HOUSING
    SERIAL 04530702-09999999
  • 28
    31-61100A1 BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 04530702-09999999
    BEARING ASSEMBLY,DRIVE SHAFT
    SERIAL 04530702-09999999
  • 30
    15-45691A1 SHIM,BEARING CUP TO TOP COVER
    SERIAL 04530702-09999999
    SHIM,BEARING CUP TO TOP COVER
    SERIAL 04530702-09999999
  • 31
    25-32546 "O" RING,TOP COVER SEALING
    "O" RING,TOP COVER SEALING
  • 32
    10-8M0113174 SCREW, TOP COVER TO DRIVE SHAFT HOUSING(1 1/4")
    SCREW, TOP COVER TO DRIVE SHAFT HOUSING(1 1/4")
  • 33
    58858A1 UNIVERSAL JOINT ASSEMBLY,DRIVE GEAR
    UNIVERSAL JOINT ASSEMBLY,DRIVE GEAR
  • 34
    46020T02 YOKE,UNIVERSAL JOINT-GEAR END
    YOKE,UNIVERSAL JOINT-GEAR END
  • 35
    393831 SOCKET,CENTER-UNIVERSAL JOINT
    SOCKET,CENTER-UNIVERSAL JOINT
  • 36
    75832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
    CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
  • 37
    39385A1 YOKE ASSEMBLY,UNIVERSAL JOINT-COUPLING END
    YOKE ASSEMBLY,UNIVERSAL JOINT-COUPLING END
  • 38
    25-25439 "O" RING,UNIVERSAL JOINT
    "O" RING,UNIVERSAL JOINT
  • 39
    8168112 RETAINER,TAPERED ROLLER BEARING-UNIVERSAL JOINT
    RETAINER,TAPERED ROLLER BEARING-UNIVERSAL JOINT
  • 40
    35983 RING,ROLLER BEARING RETAINER TO OIL SEAL CARRIER
    RING,ROLLER BEARING RETAINER TO OIL SEAL CARRIER
  • 41
    25-70937 "O" RING,OIL SEAL CARRIER
    "O" RING,OIL SEAL CARRIER
  • 42
    66081A2 CARRIER ASSEMBLY,OIL SEAL
    SERIAL 00000000-03780849
    CARRIER ASSEMBLY,OIL SEAL
    SERIAL 00000000-03780849
  • 42
    66081A2 CARRIER ASSEMBLY,OIL SEAL
    SERIAL 03780850-09999999
    CARRIER ASSEMBLY,OIL SEAL
    SERIAL 03780850-09999999
  • 43
    26-823894 OIL SEAL,CARRIER
    OIL SEAL,CARRIER
  • 44
    31-35988A12 TAPERED ROLLER BEARING ASSEMBLY,DRIVE GEAR
    TAPERED ROLLER BEARING ASSEMBLY,DRIVE GEAR
  • 45
    23-35985 SPACER,DRIVE GEAR BEARING CUPS
    SPACER,DRIVE GEAR BEARING CUPS
  • 46
    15-35980A1 SHIM,BEARING CUP TO DRIVE SHAFT HOUSING(.002-3-5-10-25)
    SHIM,BEARING CUP TO DRIVE SHAFT HOUSING(.002-3-5-10-25)
  • 47
    23-8M0124132 SHIM,BEARING CUP TO DRIVE SHAFT HOUSING
    SHIM,BEARING CUP TO DRIVE SHAFT HOUSING
  • 48
    12-45810 WASHER,DRIVE GEAR TO UNIVERSAL JOINT NUT
    WASHER,DRIVE GEAR TO UNIVERSAL JOINT NUT
  • 49
    11-22339 NUT,DRIVE GEAR TO UNIVERSAL JOINT
    NUT,DRIVE GEAR TO UNIVERSAL JOINT
