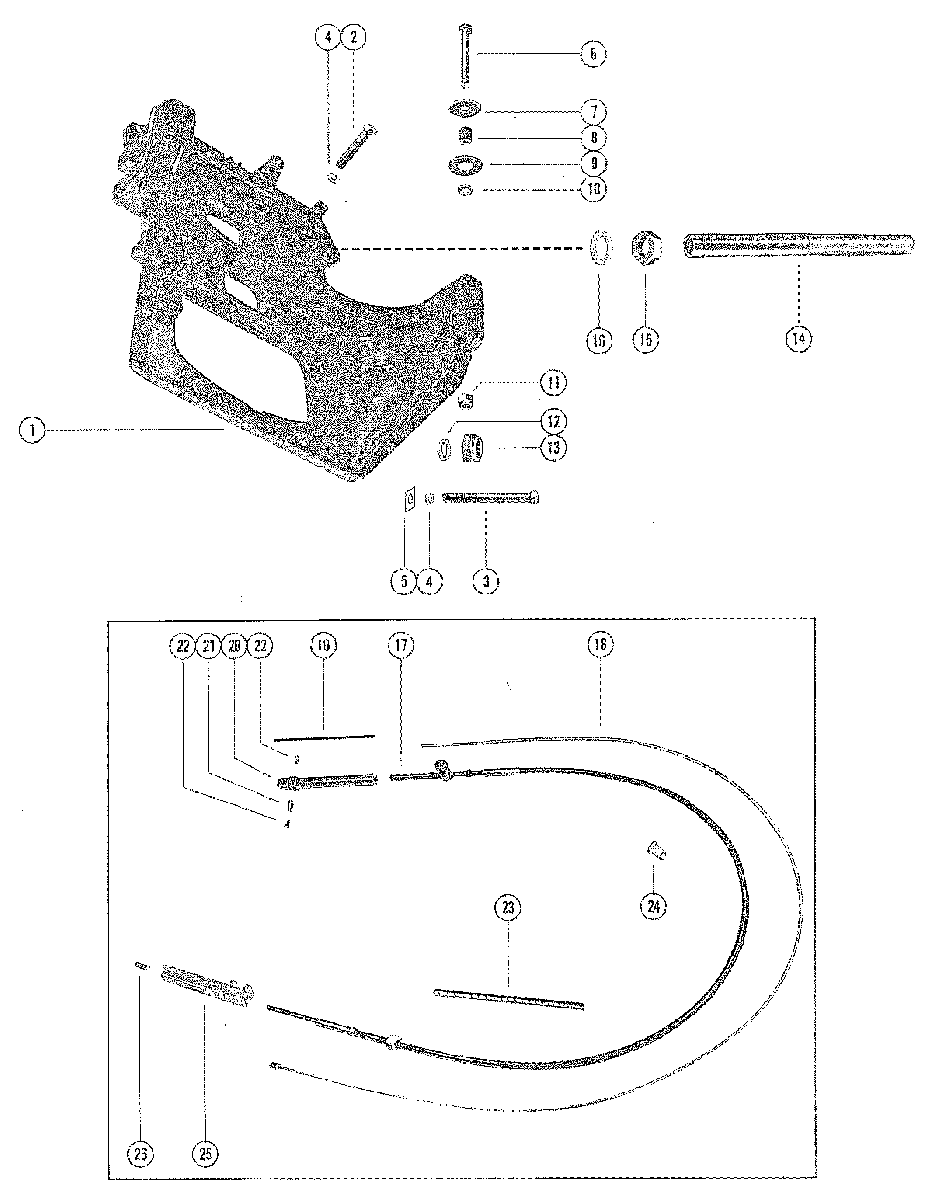

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    73872A1 PLATE ASSEMBLY,TRANSOM (WITHOUT GIMBAL TRIM SENDER)
    PLATE ASSEMBLY,TRANSOM (WITHOUT GIMBAL TRIM SENDER)
  • 1
    65550A2 PLATE ASSEMBLY,TRANSOM (WITH GIMBAL TRIM SENDER)
    PLATE ASSEMBLY,TRANSOM (WITH GIMBAL TRIM SENDER)
  • 2
    10-37269 SCREW,TRANSOM PLATE TO GIMBAL HOUSING(2")
    SCREW,TRANSOM PLATE TO GIMBAL HOUSING(2")
  • 3
    10-37268 SCREW,TRANSOM PLATE TO GIMBAL HOUSING(4 1/4")
    SCREW,TRANSOM PLATE TO GIMBAL HOUSING(4 1/4")
  • 4
    13-32993 LOCKWASHER,TRANSOM PLATE SCREW
    LOCKWASHER,TRANSOM PLATE SCREW
  • 5
    12-37271 WASHER,SQUARE-TRANSOM PLATE SCREW
    WASHER,SQUARE-TRANSOM PLATE SCREW
  • 6
    10-97934 SCREW,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING(4 3/4")
    SCREW,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING(4 3/4")
  • 7
    12-28421 WASHER,TRANSOM PLATE SCREW
    WASHER,TRANSOM PLATE SCREW
  • 8
    23-99299 SPACER,TRANSOM PLATE SCREW
    SPACER,TRANSOM PLATE SCREW
  • 9
    12-32834 WASHER,TRANSOM PLATE SCREW
    WASHER,TRANSOM PLATE SCREW
  • 10
    13-33734 LOCKWASHER,TRANSOM PLATE SCREW
    LOCKWASHER,TRANSOM PLATE SCREW
  • 11
    11-82671317 NUT,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
    NUT,TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
  • 12
    12-21900 WASHER,GIMBAL HOUSING TO TRANSOM PLATE BOLT
    WASHER,GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 13
    11-34087 NUT,GIMBAL HOUSING TO TRANSOM PLATE BOLT
    NUT,GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 14
    71565A2 TUBE,STEERING CABLE GUIDE (7/8' O.D)
    TUBE,STEERING CABLE GUIDE (7/8' O.D)
  • 15
    11-8M0041651 NUT,JAM-STEERING CABLE GUIDE TUBE
    NUT,JAM-STEERING CABLE GUIDE TUBE
  • 16
    12-37985 WASHER,STEERING CABLE GUIDE GUIDE TUBE
    WASHER,STEERING CABLE GUIDE GUIDE TUBE
  • 17
    73723A01 CABLE ASSEMBLY,SHIFT ACUATING
    SERIAL 00000000-03780849
    CABLE ASSEMBLY,SHIFT ACUATING
    SERIAL 00000000-03780849
  • 18
    38399A2 CORE WIRE,INNER SHIFT CABLE
    SERIAL 00000000-03780849
    CORE WIRE,INNER SHIFT CABLE
    SERIAL 00000000-03780849
  • 19
    32-38377 TUBE,SHIFT ACUATING CABLE
    SERIAL 00000000-03780849
    TUBE,SHIFT ACUATING CABLE
    SERIAL 00000000-03780849
  • 17
    865436A02 CABLE ASSEMBLY,SHIFT ACUATING
    SERIAL 03780850-04425519
    CABLE ASSEMBLY,SHIFT ACUATING
    SERIAL 03780850-04425519
  • 18
    865436A02 CORE WIRE,INNER SHIFT CABLE
    SERIAL 03780850-04425519
    CORE WIRE,INNER SHIFT CABLE
    SERIAL 03780850-04425519
  • 19
    32-38377 TUBE,SHIFT ACUATING CABLE
    SERIAL 03780850-04425519
    TUBE,SHIFT ACUATING CABLE
    SERIAL 03780850-04425519
  • 17
    865436A02 CABLE ASSEMBLY,SHIFT ACUATING
    SERIAL 04425520-09999999
    CABLE ASSEMBLY,SHIFT ACUATING
    SERIAL 04425520-09999999
  • 18
    865436A02 CORE WIRE,INNER SHIFT CABLE
    SERIAL 04425520-09999999
    CORE WIRE,INNER SHIFT CABLE
    SERIAL 04425520-09999999
  • 19
    32-38377 TUBE,SHIFT ACUATING CABLE
    SERIAL 04425520-09999999
    TUBE,SHIFT ACUATING CABLE
    SERIAL 04425520-09999999
  • 20
    43433 GUIDE,SHIFT ACUATING CABLE END
    GUIDE,SHIFT ACUATING CABLE END
  • 21
    20007 ANCHOR,SHIFT ACUATING CABLE END GUIDE
    ANCHOR,SHIFT ACUATING CABLE END GUIDE
  • 22
    10-20518 SCREW,SET-ANCHOR TO ACTIATING CABLE END GUUIDE (1/4")
    SCREW,SET-ANCHOR TO ACTIATING CABLE END GUUIDE (1/4")
  • 23
    38473 WRAPPING,SHIFT ACTUATING CABLE
    WRAPPING,SHIFT ACTUATING CABLE
  • 24
    14705 TUBE,NYLON-SHIFT ACTUATING CABLE GUIDE
    TUBE,NYLON-SHIFT ACTUATING CABLE GUIDE
  • 25
    865436A02 SLIDE,SHIFT ACTUATING CABLE
    SLIDE,SHIFT ACTUATING CABLE
  • 26
    10-31700 SCREW,SET-SHIFT ACTUATING CABLE TO SLIDE (3/4")
    SCREW,SET-SHIFT ACTUATING CABLE TO SLIDE (3/4")
