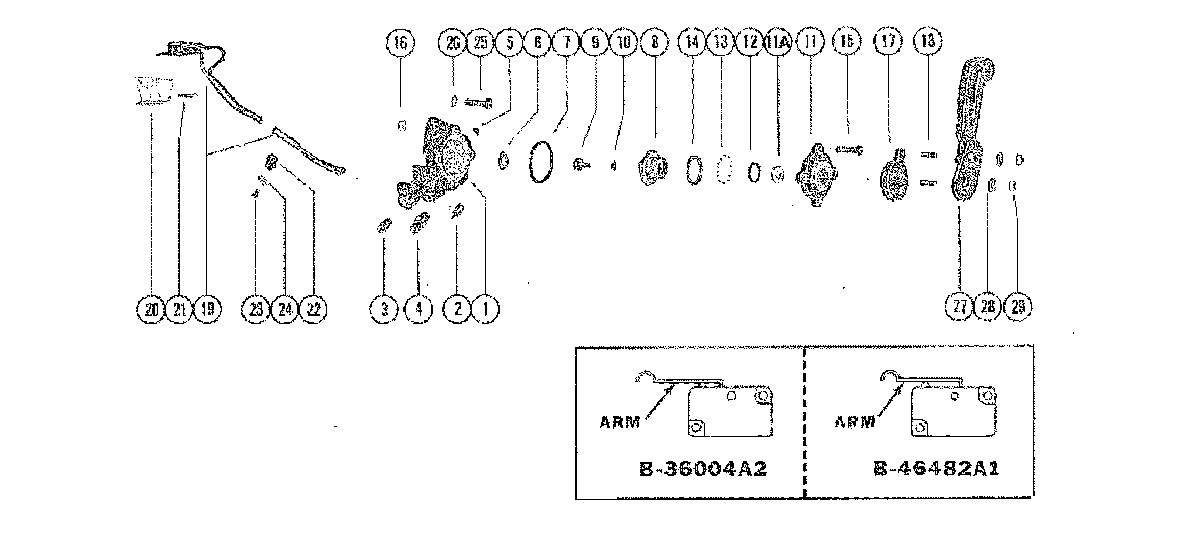

REVERSE LOCK VALVE ASSEMBLY для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    76812T4 REVERSE LOCK VALVE ASSEMBLY
    USED WITH REVERSE INTER-LOCK SWITCH
    REVERSE LOCK VALVE ASSEMBLY
    USED WITH REVERSE INTER-LOCK SWITCH
  • 1
    76812T4 REVERSE LOCK VALVE ASSEMBLY
    USED WITHOUT REVERSE INTER-LOCK SWITCH
    REVERSE LOCK VALVE ASSEMBLY
    USED WITHOUT REVERSE INTER-LOCK SWITCH
  • 2
    45709 FOLLOWER, ACM
    FOLLOWER, ACM
  • 3
    22-48166 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
    SERIAL 00000000-03780849
    ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
    SERIAL 00000000-03780849
  • 3
    22-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
    SERIAL 03780850-09999999
    ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
    SERIAL 03780850-09999999
  • 4
    22-48167 CONNECTOR, ELBOW
    CONNECTOR, ELBOW
  • 5
    22-390721 PLUG, PIPE - REVERSE LOCK VALVE
    PLUG, PIPE - REVERSE LOCK VALVE
  • 6
    13-25906 WASHER, WAVE - REVERSE LOCK VALVE
    WASHER, WAVE - REVERSE LOCK VALVE
  • 7
    25-457101 "O" RING, REVERSE LOCK VALVE
    "O" RING, REVERSE LOCK VALVE
  • 8
    45526 CAM, REVERSE LOCK VALVE
    CAM, REVERSE LOCK VALVE
  • 9
    10-46736 SCREW, CAM TO CAM LEVER (1/2")
    SCREW, CAM TO CAM LEVER (1/2")
  • 10
    13-26996 LOCKWASHER, CAM SCREW
    LOCKWASHER, CAM SCREW
  • 11
    45528A2 COVER ASSEMBLY, REVERSE LOCK VALVE
    COVER ASSEMBLY, REVERSE LOCK VALVE
  • 11A
    12-59570 WASHER, REVERSE LOCK VALVE COVER
    WASHER, REVERSE LOCK VALVE COVER
  • 12
    25-45711 "O" RING, VALVE COVER
    "O" RING, VALVE COVER
  • 13
    30-45712 BALL, VALVE COVER
    BALL, VALVE COVER
  • 14
    12-45713 WASHER, RETAINING - BALL TO VALVE COVER
    WASHER, RETAINING - BALL TO VALVE COVER
  • 15
    10-45716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")
    SCREW, COVER TO REVERSE LOCK VALVE (15/16")
  • 16
    11-20110 NUT, COVER SCREW
    NUT, COVER SCREW
  • 17
    46732A1 LEVER ASSEMBLY, CAM
    LEVER ASSEMBLY, CAM
  • 18
    16-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
    STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
  • 19
    46482A5 SWITCH ASSEMBLY, REVERSE INTERLOCK
    SERIAL 00000000-03780849
    SWITCH ASSEMBLY, REVERSE INTERLOCK
    SERIAL 00000000-03780849
  • 19
    46482A2 SWITCH ASSEMBLY, REVERSE INTERLOCK
    SERIAL 03780850-04530701
    SWITCH ASSEMBLY, REVERSE INTERLOCK
    SERIAL 03780850-04530701
  • 20
    45717 SHIELD, CUT-OUT SWITCH
    USED WITH B-48165A5 REVERSE LOCK VALVE
    SHIELD, CUT-OUT SWITCH
    USED WITH B-48165A5 REVERSE LOCK VALVE
  • 21
    10-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
    USED WITH B-48165A5 REVERSE LOCK VALVE
    SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
    USED WITH B-48165A5 REVERSE LOCK VALVE
  • 22
    54-22740 CLIP, CUT-OUT SWITCH LEAD
    USED WITH B-48165A5 REVERSE LOCK VALVE
    CLIP, CUT-OUT SWITCH LEAD
    USED WITH B-48165A5 REVERSE LOCK VALVE
  • 23
    10-35519 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
    USED WITH B-48165A5 REVERSE LOCK VALVE
    SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
    USED WITH B-48165A5 REVERSE LOCK VALVE
  • 22
    54-648552 CLIP, CUT-OUT SWITCH LEAD
    USED WITH B-48165A5 REVERSE LOCK VALVE
    CLIP, CUT-OUT SWITCH LEAD
    USED WITH B-48165A5 REVERSE LOCK VALVE
  • 23
    10-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
    USED WITH B-48165A5 REVERSE LOCK VALVE
    SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
    USED WITH B-48165A5 REVERSE LOCK VALVE
  • 24
    8M0084613 "D" WASHER, CLIP ATTACHING SCREW
    USED WITH B-48165A5 REVERSE LOCK VALVE
    "D" WASHER, CLIP ATTACHING SCREW
    USED WITH B-48165A5 REVERSE LOCK VALVE
  • 25
    10-25299 SCREW, REVERSE LOCK VALVE (3/4")
    SCREW, REVERSE LOCK VALVE (3/4")
  • 26
    13-21804 LOCKWASHER, REVERSE LOCK VALVE SCREW
    LOCKWASHER, REVERSE LOCK VALVE SCREW
  • 27
    63333A2 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    SERIAL 00000000-03443920
    LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    SERIAL 00000000-03443920
  • 27
    63333A2 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    SERIAL 03469428-03780849
    LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    SERIAL 03469428-03780849
  • 27
    66397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    SERIAL 03780850-09999999
    LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    SERIAL 03780850-09999999
  • 28
    12-21273 WASHER, CAM LEVER STUD
    WASHER, CAM LEVER STUD
  • 29
    11-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
    NUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
