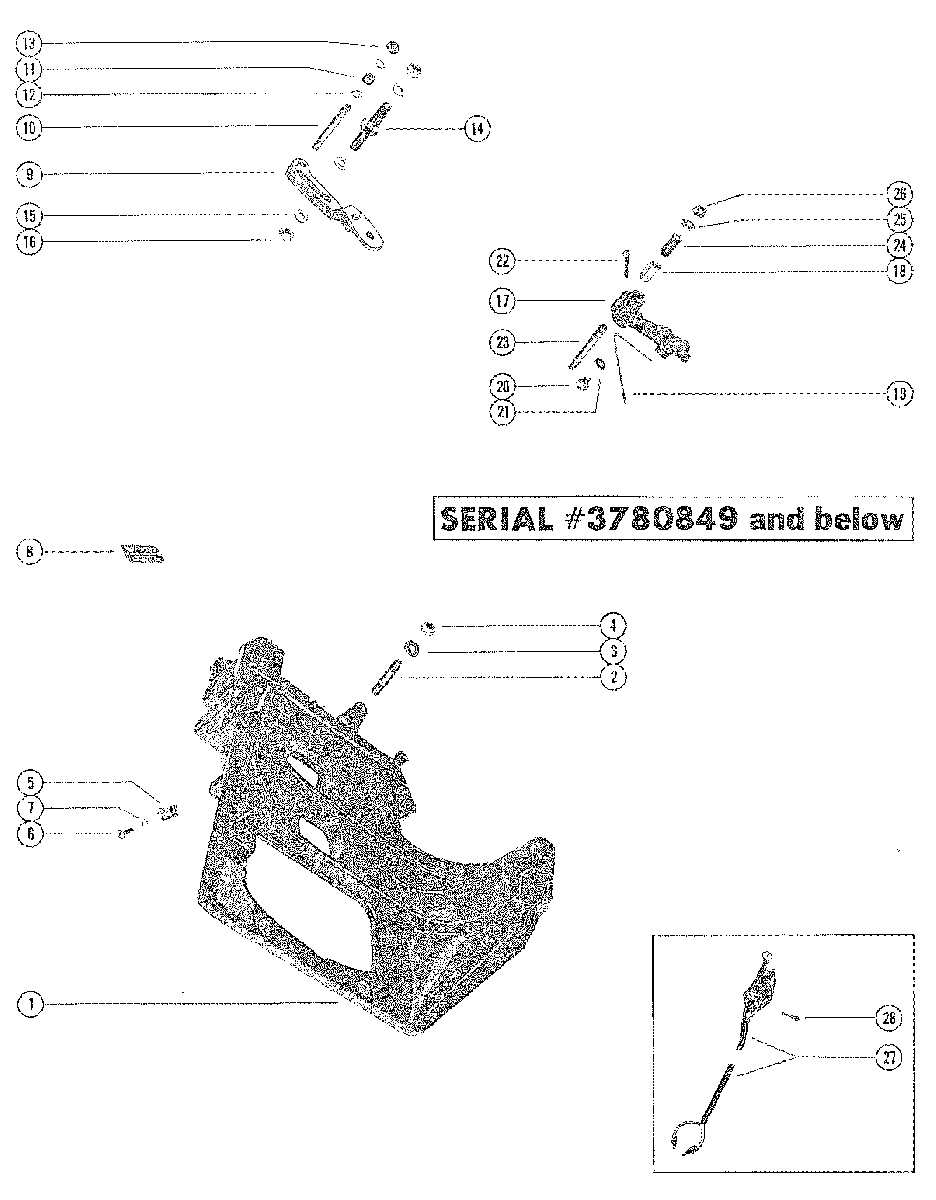

TRANSOM PLATE AND SHIFT LEVER для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    73872A1 PLATE ASSEMBLY,TRANSOM
    PLATE ASSEMBLY,TRANSOM
  • 2
    16-63081 STUD, SHIFT CABLE TO TRANSOM PLATE (1 3/4")
    STUD, SHIFT CABLE TO TRANSOM PLATE (1 3/4")
  • 3
    12-39143 WASHER,SHIFT CABLE STUD
    WASHER,SHIFT CABLE STUD
  • 4
    11-8267089 NUT,SHIFT CABLE STUD
    NUT,SHIFT CABLE STUD
  • 5
    54-24836 CLIP,SWITCH LEADS TO TRANSOM PLATE
    CLIP,SWITCH LEADS TO TRANSOM PLATE
  • 6
    10-35519 SCREW,SWITCH LEADS CLIP TO TRANSOM PLATE (1/2")
    SCREW,SWITCH LEADS CLIP TO TRANSOM PLATE (1/2")
  • 6
    10-21643 SCREW,SWITCH LEADS CLIP TO TRANSOM PLATE (1/2")
    SCREW,SWITCH LEADS CLIP TO TRANSOM PLATE (1/2")
  • 7
    8M0084613 "D" WASHER,SWITCH LEADS CLIP SCREW
    "D" WASHER,SWITCH LEADS CLIP SCREW
  • 8
    37-39395 DECAL,SERIAL NUMBER
    DECAL,SERIAL NUMBER
  • 9
    63333A2 LEVER ASSEMBLY,SHIFT CONTROL-CAM LEVER
    SERIAL 00000000-03443920
    LEVER ASSEMBLY,SHIFT CONTROL-CAM LEVER
    SERIAL 00000000-03443920
  • 10
    16-79661 STUD,SHIFT CABLE TOLEVER 91 3/4")
    SERIAL 00000000-03443920
    STUD,SHIFT CABLE TOLEVER 91 3/4")
    SERIAL 00000000-03443920
  • 11
    23-31866 SPACER,SHIFT CABLE STUD
    SERIAL 00000000-03443920
    SPACER,SHIFT CABLE STUD
    SERIAL 00000000-03443920
  • 12
    12-39143 WASHER,SHIFT CABLE STUD
    SERIAL 00000000-03443920
    WASHER,SHIFT CABLE STUD
    SERIAL 00000000-03443920
  • 13
    11-8267089 NUT,SHIFT CABLE STUD
    SERIAL 00000000-03443920
    NUT,SHIFT CABLE STUD
    SERIAL 00000000-03443920
  • 14
    16-34069 STUD,CABLE TO SHIFT CONTROL LEVER (2 1/4")
    SERIAL 00000000-03443920
    STUD,CABLE TO SHIFT CONTROL LEVER (2 1/4")
    SERIAL 00000000-03443920
  • 15
    12-39143 WASHER,CABLE STUD
    SERIAL 00000000-03443920
    WASHER,CABLE STUD
    SERIAL 00000000-03443920
  • 16
    11-8267089 NUT,CABLE TO SHIFT CONTROL LEVER
    SERIAL 00000000-03443920
    NUT,CABLE TO SHIFT CONTROL LEVER
    SERIAL 00000000-03443920
  • 9
    63333A2 LEVER ASSEMBLY,SHIFT CONTROL-CAM LEVER
    SERIAL 03469428-03780849
    LEVER ASSEMBLY,SHIFT CONTROL-CAM LEVER
    SERIAL 03469428-03780849
  • 10
    16-79661 STUD,SHIFT CABLE TO LEVER (1 3/4")
    SERIAL 03469428-03780849
    STUD,SHIFT CABLE TO LEVER (1 3/4")
    SERIAL 03469428-03780849
  • 11
    23-31866 SPACER,SHIFT CABLE STUD
    SERIAL 03469428-03780849
    SPACER,SHIFT CABLE STUD
    SERIAL 03469428-03780849
  • 12
    12-39143 WASHER,SHIFT CABLE STUD
    SERIAL 03469428-03780849
    WASHER,SHIFT CABLE STUD
    SERIAL 03469428-03780849
  • 13
    11-8267089 NUT,SHIFT CABLE STUD
    SERIAL 03469428-03780849
    NUT,SHIFT CABLE STUD
    SERIAL 03469428-03780849
  • 14
    16-63335 STUD,CABLE TO SHIFT CONTROL LEVER (2")
    SERIAL 03469428-03780849
    STUD,CABLE TO SHIFT CONTROL LEVER (2")
    SERIAL 03469428-03780849
  • 16
    11-63341 NUT,CABLE TO SHIFT CONTROL LEVER
    SERIAL 03469428-03780849
    NUT,CABLE TO SHIFT CONTROL LEVER
    SERIAL 03469428-03780849
  • 17
    13051A4 ARM ASSEMBLY,SWITCH ACTUATIN
    ARM ASSEMBLY,SWITCH ACTUATIN
  • 18
    23-45600 SLEEVE,SWITCH ACTUATING ARM STUD
    SLEEVE,SWITCH ACTUATING ARM STUD
  • 19
    24-862850 SPRING,TENSION-SWITCH ACTUATING ARM
    SPRING,TENSION-SWITCH ACTUATING ARM
  • 20
    10-98257 SCREW,TENSION SPRING TO ARM (1/2")
    SCREW,TENSION SPRING TO ARM (1/2")
  • 21
    12-26825 WASHER,TENSION SPRING SCREW
    WASHER,TENSION SPRING SCREW
  • 22
    18-328571 COTTER PIN,SHIFT ACTUATING CABLE TO TRANSOM PLATE
    COTTER PIN,SHIFT ACTUATING CABLE TO TRANSOM PLATE
  • 23
    16-66373 STUD,SWITCH ACTUATING ARM TO TRANSOM PLATE (2 5/16")
    STUD,SWITCH ACTUATING ARM TO TRANSOM PLATE (2 5/16")
  • 24
    23-37981 SPACER,SWITCH ACTUATING ARM TO TRANSOM PLATE
    SPACER,SWITCH ACTUATING ARM TO TRANSOM PLATE
  • 25
    12-26825 WASHER,SWITCH ACTUATING ARM STUD
    WASHER,SWITCH ACTUATING ARM STUD
  • 26
    11-82670911 NUT,SWITCH ACTUATING ARM STUD
    NUT,SWITCH ACTUATING ARM STUD
  • 27
    49646A2 SWITCH ASSEMBLY,CUT-OUT-TRANSOM PLATE
    SWITCH ASSEMBLY,CUT-OUT-TRANSOM PLATE
  • 28
    10-30902 SCREW,SWITCH ASSEMBLY TO TRANSOM PLATE(3/4")
    SCREW,SWITCH ASSEMBLY TO TRANSOM PLATE(3/4")
