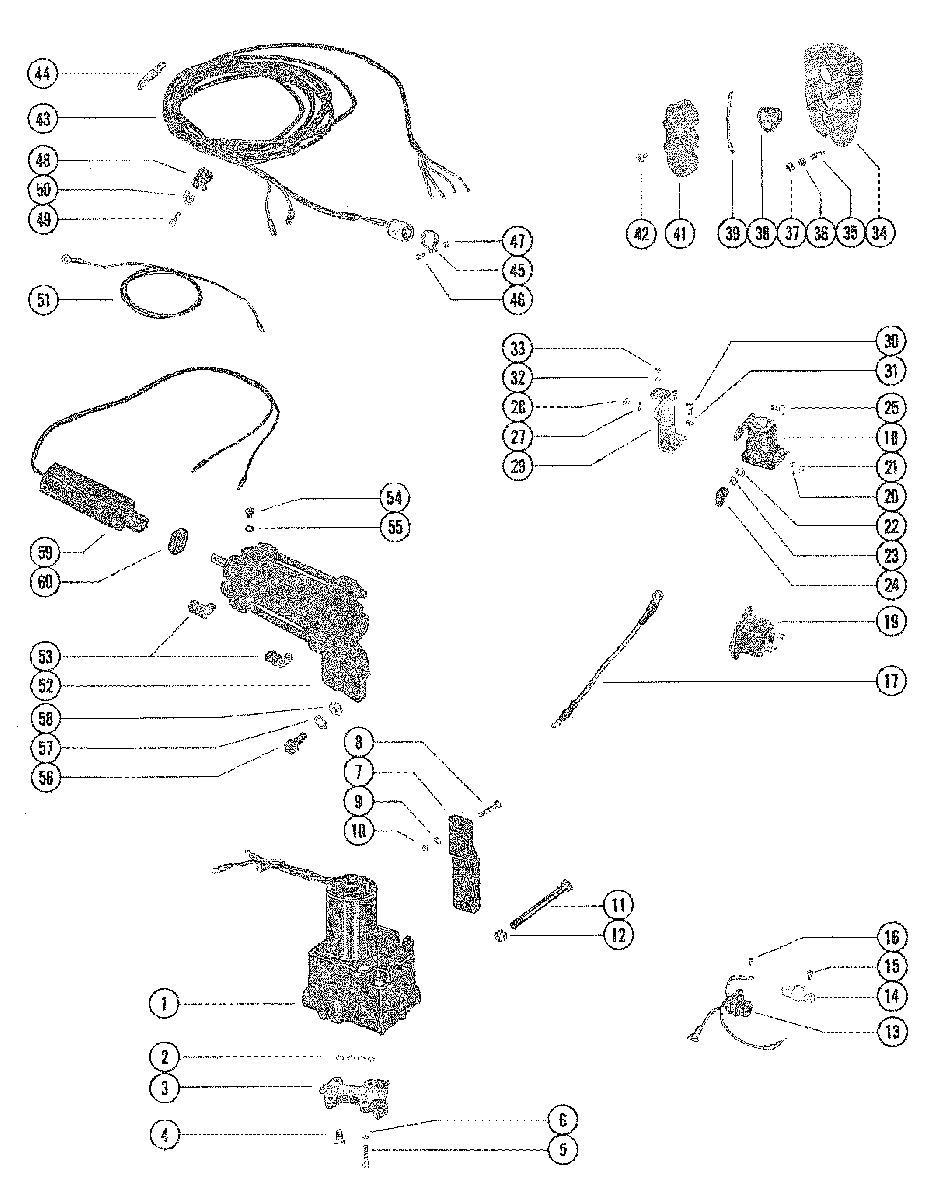

HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    93247A7 HYDRAULIC PUMP ASSEMBLY
    HYDRAULIC PUMP ASSEMBLY
  • 2
    25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
    "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 3
    48077T3 CONTROL VALVE ASSEMBLY
    CONTROL VALVE ASSEMBLY
  • 3
    25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
    SEE REFERENCE #2
    "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
    SEE REFERENCE #2
  • 4
    22-38609 PLUG, CONTROL VALVE
    PLUG, CONTROL VALVE
  • 5
    10-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
    SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
  • 6
    13-26992 LOCKWASHER, CONTROL VALVE SCREW
    LOCKWASHER, CONTROL VALVE SCREW
  • 7
    94225A1 BRACKET ASSEMBLY, HYDRAULIC PUMP MOUNTING
    BRACKET ASSEMBLY, HYDRAULIC PUMP MOUNTING
  • 8
    10-26066 SCREW, HYDRAULIC PUMP TO BRACKET (1 1/4")
    SCREW, HYDRAULIC PUMP TO BRACKET (1 1/4")
  • 9
    12-20546 WASHER, HYDRAULIC PUMP SCREW
    WASHER, HYDRAULIC PUMP SCREW
  • 10
    11-82670911 NUT, HYDRAULIC PUMP SCREW
    NUT, HYDRAULIC PUMP SCREW
  • 11
    10-29877 SCREW, MOUNTING BRACKET TO TRANSOM PLATE (3 1/4")
    SCREW, MOUNTING BRACKET TO TRANSOM PLATE (3 1/4")
  • 11
    10-45765 SCREW, MOUNTING BRACKET TO TRANSOM PLATE (4 1/4")
    SCREW, MOUNTING BRACKET TO TRANSOM PLATE (4 1/4")
  • 12
    11-82670911 NUT, MOUNTING BRACKET SCREW
    NUT, MOUNTING BRACKET SCREW
  • 13
    45325A1 CONNECTOR AND HARNESS (GREEN LEAD 3" LONG)
    CONNECTOR AND HARNESS (GREEN LEAD 3" LONG)
  • 13
    84-74023A1 CONNECTOR AND HARNESS (GREEN LEAD 5 1/2" LONG)
    CONNECTOR AND HARNESS (GREEN LEAD 5 1/2" LONG)
  • 14
    45559 TERMINAL BLOCK, HYDRAULIC PUMP
    TERMINAL BLOCK, HYDRAULIC PUMP
  • 15
    10-35519 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
  • 16
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
  • 17
    52752 JUMPER WIRE, STARTER SOLENOID TO MOUNTING BRACKET
    JUMPER WIRE, STARTER SOLENOID TO MOUNTING BRACKET
  • 18
    25661T1 STARTER SOLENOID
    SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
    STARTER SOLENOID
    SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
  • 19
    89-853654A1 STARTER SOLENOID
    SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
    STARTER SOLENOID
    SEE PHOTO FOR CORRECT SOLENOID REPLACEMENT
  • 20
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 21
    11-68219 NUT, STARTER SOLENOID TERMINAL (#10)
    NUT, STARTER SOLENOID TERMINAL (#10)
  • 22
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 23
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16-24")
    NUT, STARTER SOLENOID TERMINAL (5/16-24")
  • 23
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16"-18)
    NUT, STARTER SOLENOID TERMINAL (5/16"-18)
  • 24
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 25
    10-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 25
    10-98256 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")
  • 27
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 28
    11-21825 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 29
    74407T BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 30
    10-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
    SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
  • 31
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 32
    13-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLT
    LOCKWASHER, HYDRAULIC PUMP THRU BOLT
  • 33
    11-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • 33
    55642A13 CONTROL PANEL ASSEMBLY, COMPLETE
    CONTROL PANEL ASSEMBLY, COMPLETE
  • 34
    55642A17 PANEL ASSEMBLY, CONTROL
    PANEL ASSEMBLY, CONTROL
  • 35
    16-55422 STUD, CONTROL PANEL TO BOAT (2")
    STUD, CONTROL PANEL TO BOAT (2")
  • 36
    12-24676 WASHER, CONTROL PANEL STUD
    WASHER, CONTROL PANEL STUD
  • 37
    11-27164 NUT, CONTROL PANEL STUD
    NUT, CONTROL PANEL STUD
  • 38
    55738A1 SWITCH, PUSH BUTTON - CONTROL PANEL
    SWITCH, PUSH BUTTON - CONTROL PANEL
  • 39
    48078 JUMPPER WIRE, PUSH BUTTON SWITCH (RED - 3 1/4")
    JUMPPER WIRE, PUSH BUTTON SWITCH (RED - 3 1/4")
  • 39
    53107 JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")
    JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")
  • 41
    55641 RETAINER, PUSH BUTTON SWITCH
    RETAINER, PUSH BUTTON SWITCH
  • 42
    10-62568 SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2")
    SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2")
  • 43
    84-87394A20 HARNESS, CONTROL PANEL
    HARNESS, CONTROL PANEL
  • 44
    33865 BINDER, NYLON - CONTROL PANEL HARNESS
    BINDER, NYLON - CONTROL PANEL HARNESS
  • 45
    95814 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 46
    10-29227 SCREW, HARNESS ATTACHING CLAMP (1/2")
    SCREW, HARNESS ATTACHING CLAMP (1/2")
  • 47
    11-34388 NUT, HARNESS ATTACHING CLAMP SCREW
    NUT, HARNESS ATTACHING CLAMP SCREW
  • 48
    54-24836 CLAMP, HARNESS TO BOAT (1/4")
    CLAMP, HARNESS TO BOAT (1/4")
  • 49
    10-35401 SCREW, WOOD - HARNESS CLAMP TO BOAT (1")
    SCREW, WOOD - HARNESS CLAMP TO BOAT (1")
  • 50
    8M0084613 "D" WASHER, HARNESS CLAMP SCREW
    "D" WASHER, HARNESS CLAMP SCREW
  • 51
    45551 BATTERY LEAD (POSITIVE)
    BATTERY LEAD (POSITIVE)
  • 51
    45552 BATTER LEAD (NEGATIVE)
    BATTER LEAD (NEGATIVE)
  • 52
    48170A4 SENDER ASSEMBLY, TRIM INDICATOR
    B-25-48177A1 SEALING RING KIT WITHOUT GIMBAL TRIM SENDER
    SENDER ASSEMBLY, TRIM INDICATOR
    B-25-48177A1 SEALING RING KIT WITHOUT GIMBAL TRIM SENDER
  • 53
    22-48169 ELBOW, HYDRAULIC HOSE TO TRIM INDICATOR SENDER
    WITHOUT GIMBAL TRIM SENDER
    ELBOW, HYDRAULIC HOSE TO TRIM INDICATOR SENDER
    WITHOUT GIMBAL TRIM SENDER
  • 54
    10-45265 SCREW, BLEED - TRIM INDICATOR SENDER (5/16")
    WITHOUT GIMBAL TRIM SENDER
    SCREW, BLEED - TRIM INDICATOR SENDER (5/16")
    WITHOUT GIMBAL TRIM SENDER
  • 55
    25-45016 "O" RING, BLEED SCREW
    WITHOUT GIMBAL TRIM SENDER
    "O" RING, BLEED SCREW
    WITHOUT GIMBAL TRIM SENDER
  • 56
    10-23703 SCREW, TGRIM INDICATOR SENDER TO TRANSFORM (7/8")
    WITHOUT GIMBAL TRIM SENDER SERIAL 00000000-03780849
    SCREW, TGRIM INDICATOR SENDER TO TRANSFORM (7/8")
    WITHOUT GIMBAL TRIM SENDER SERIAL 00000000-03780849
  • 57
    13-21804 LOCKWASHER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER SERIAL 00000000-03780849
    LOCKWASHER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER SERIAL 00000000-03780849
  • 56
    10-66482 SCREW, TRIM INDICATOR TO TRANSFORM (2")
    WITHOUT GIMBAL TRIM SENDER SERIAL 03780850-09999999
    SCREW, TRIM INDICATOR TO TRANSFORM (2")
    WITHOUT GIMBAL TRIM SENDER SERIAL 03780850-09999999
  • 57
    46170 LOCKWASHER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER SERIAL 03780850-09999999
    LOCKWASHER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER SERIAL 03780850-09999999
  • 58
    23-52095 SPACER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER SERIAL 03780850-09999999
    SPACER, TRIM INDICATOR SENDER SCREW
    WITHOUT GIMBAL TRIM SENDER SERIAL 03780850-09999999
  • 59
    56046A1 TRIM SENDER ASSEMBLY
    WITHOUT GIMBAL TRIM SENDER
    TRIM SENDER ASSEMBLY
    WITHOUT GIMBAL TRIM SENDER
  • 60
    11-8M0041651 NUT, TRIM SENDER
    WITHOUT GIMBAL TRIM SENDER
    NUT, TRIM SENDER
    WITHOUT GIMBAL TRIM SENDER
