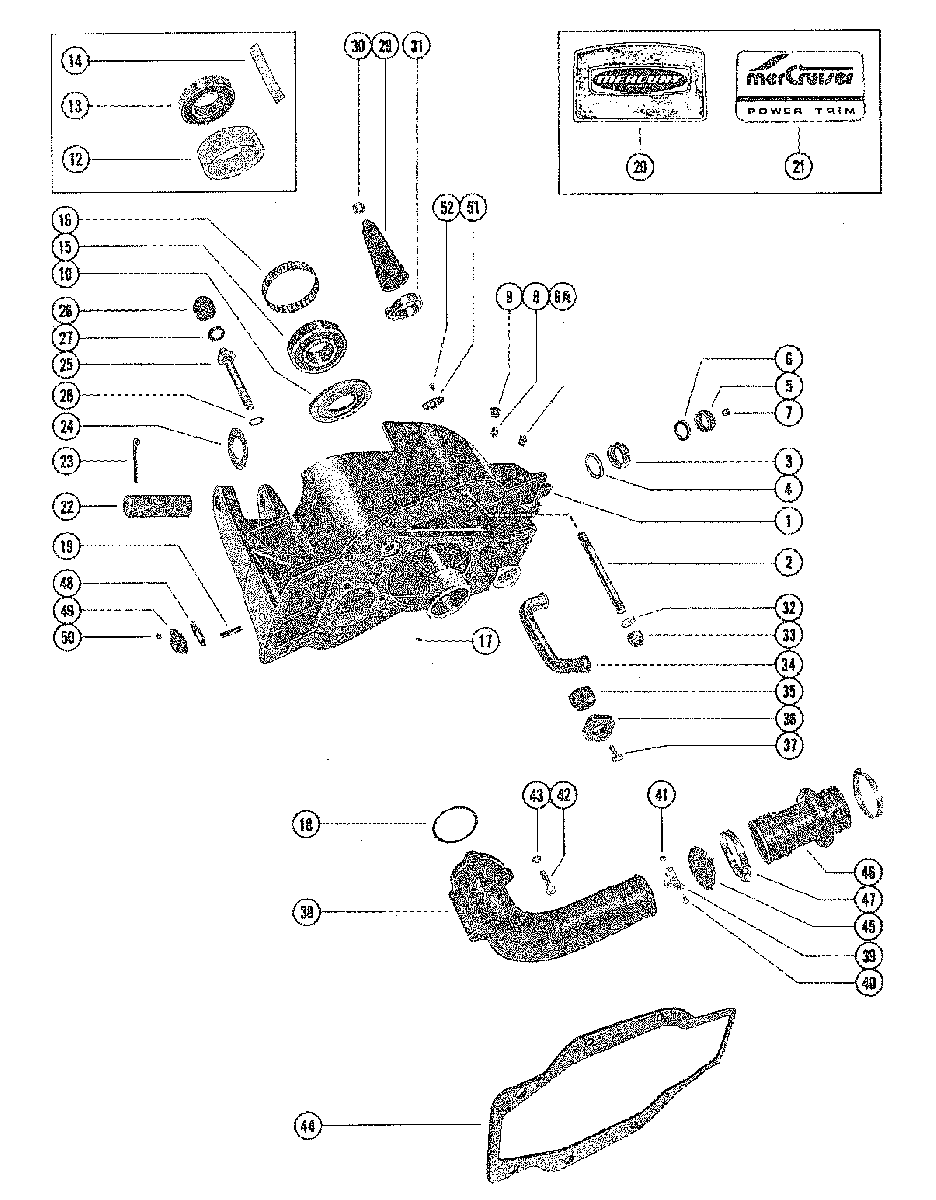

GIMBAL HOUSING ASSEMBLY AND EXHAUST ELBOW для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    63503A1 GIMBAL HOUSING ASSEMBLY
    WITHOUT GIMBAL TRIM SENDER
    GIMBAL HOUSING ASSEMBLY
    WITHOUT GIMBAL TRIM SENDER
  • 1
    70861A1 GIMBAL HOUSING ASSEMBLY()
    WITH GIMBAL TRIM SENDER
    GIMBAL HOUSING ASSEMBLY()
    WITH GIMBAL TRIM SENDER
  • 2
    16-56296 STUD,GIMBAL HOUSING TO TRANSOM PLATE (4 3/4")
    STUD,GIMBAL HOUSING TO TRANSOM PLATE (4 3/4")
  • 3
    31-32536 BEARING,ROLLER-GIMBAL HOUSING (LOWER)
    BEARING,ROLLER-GIMBAL HOUSING (LOWER)
  • 4
    26-32911 OIL SEAL,UPPER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL,UPPER GIMBAL HOUSING ROLLER BEARING
  • 5
    23-38634 BUSHING,SYNTHANE-GIMBAL HOUSING (UPPER) WITHOUT GIMBAL TRIM
    WITHOUT GIMBAL TRIM SENDER
    BUSHING,SYNTHANE-GIMBAL HOUSING (UPPER) WITHOUT GIMBAL TRIM
    WITHOUT GIMBAL TRIM SENDER
  • 6
    26-32540 OIL SEAL,UPPER GIMBAL HOUSING BUSHING
    WITHOUT GIMBAL TRIM SENDER
    OIL SEAL,UPPER GIMBAL HOUSING BUSHING
    WITHOUT GIMBAL TRIM SENDER
  • 5
    31-21145 ROLLER BEARING,GIMBAL HOUSING (UPPER) WITH GIMBAL TRIM SEND
    WITH GIMBAL TRIM SENDER
    ROLLER BEARING,GIMBAL HOUSING (UPPER) WITH GIMBAL TRIM SEND
    WITH GIMBAL TRIM SENDER
  • 6
    26-54925 OIL SEAL,UPPER GIMBAL HOUSING BEARING
    WITH GIMBAL TRIM SENDER
    OIL SEAL,UPPER GIMBAL HOUSING BEARING
    WITH GIMBAL TRIM SENDER
  • 7
    22-390721 PLUG,PIPE-GIMBAL HOUSING
    PLUG,PIPE-GIMBAL HOUSING
  • 8
    22-74036 FITTING,GREASE-GIMBAL HOUSING
    FITTING,GREASE-GIMBAL HOUSING
  • 8
    22-74036 FITTING,GREASE-GIMBAL HOUSING(STAINLESS STEEL)
    FITTING,GREASE-GIMBAL HOUSING(STAINLESS STEEL)
  • 8A
    22-428611 PLUG,PLASTIC-GIMBAL HOUSING-
    FOR USE ON B-58880A1,B-59844A5 AND B-63503A1 HSG. ASSEMBLY
    PLUG,PLASTIC-GIMBAL HOUSING-
    FOR USE ON B-58880A1,B-59844A5 AND B-63503A1 HSG. ASSEMBLY
  • 9
    19-77633Q LUBRICAP,GIMBAL HOUSING GREASE FITTING
    LUBRICAP,GIMBAL HOUSING GREASE FITTING
  • 10
    26-88416 SEAL,GREASE-GIMBAL HOUSING
    SEAL,GREASE-GIMBAL HOUSING
  • 12
    23-35130 ADAPTOR,BEARING CARRIER
    FOR USE ON B-55698A4 AND B-58880A1 HSG. ASSEMBLY
    ADAPTOR,BEARING CARRIER
    FOR USE ON B-55698A4 AND B-58880A1 HSG. ASSEMBLY
  • 13
    30-36418 BEARING,BALL-GIMBAL HOUSING
    OR USE ON B-55698A4 AND B-58880A1 HSG. ASSEMBLY
    BEARING,BALL-GIMBAL HOUSING
    OR USE ON B-55698A4 AND B-58880A1 HSG. ASSEMBLY
  • 14
    15-35244A1 SHIM,GIMBAL HOUSING BEARING(.002 THRU .010)
    OR USE ON B-55698A4 AND B-58880A1 HSG. ASSEMBLY
    SHIM,GIMBAL HOUSING BEARING(.002 THRU .010)
    OR USE ON B-55698A4 AND B-58880A1 HSG. ASSEMBLY
  • 15
    30-879194A02 BEARING ASSEMBLY,GIMBAL HOUSING
    FOR USE ON B-58880A5,B-59844A5, B-63503A1 AND B-70861A1 HSG ASSEMBLY
    BEARING ASSEMBLY,GIMBAL HOUSING
    FOR USE ON B-58880A5,B-59844A5, B-63503A1 AND B-70861A1 HSG ASSEMBLY
  • 16
    61075 TOLERANCE RING,GIMBAL HOUSING BEARING
    TOLERANCE RING,GIMBAL HOUSING BEARING
  • 17
    10-25612 SCREW,DRIVE-GIMBAL HOUSING EXHAUST FLANGE
    SCREW,DRIVE-GIMBAL HOUSING EXHAUST FLANGE
  • 18
    25-20863 "O" RING,GIMBAL HOUSING
    "O" RING,GIMBAL HOUSING
  • 19
    16-56766 STUD,HYDRAULIC CONNECTOR TO GIMBAL HOUSING(1 3/8")
    STUD,HYDRAULIC CONNECTOR TO GIMBAL HOUSING(1 3/8")
  • 20
    37-1368211 EMBLEM,GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
    EMBLEM,GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
  • 21
    37-87018 DECAL,GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
    DECAL,GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
  • 22
    17-45212 PIN,SWIVEL-GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN,SWIVEL-GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 23
    18-34212 COTTER PIN,RETAINING-LOWER SWIVEL PIN
    COTTER PIN,RETAINING-LOWER SWIVEL PIN
  • 24
    12-32518 WASHER,GIMBAL HOUSING TO LOWER SWIVEL PIN
    WASHER,GIMBAL HOUSING TO LOWER SWIVEL PIN
  • 25
    8M0030655 BOLT ASSEMBLY,ANODIC-GIMBAL HOUSING TO TRANSOM PLATE
    BOLT ASSEMBLY,ANODIC-GIMBAL HOUSING TO TRANSOM PLATE
  • 26
    97-55989Q9 ANODIC HEAD,BOLT ASSEMBLY
    ANODIC HEAD,BOLT ASSEMBLY
  • 27
    12-56085 WASHERM,ANODIC BOLT ASSEMBLY
    WASHERM,ANODIC BOLT ASSEMBLY
  • 28
    12-32620 WASHER,GIMBAL HOUSING BOLT
    WASHER,GIMBAL HOUSING BOLT
  • 29
    74639A2 BELLOWS,SHIFT ACTUATING CABLE
    BELLOWS,SHIFT ACTUATING CABLE
  • 30
    54-8M0090424 CLAMP,ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
    CLAMP,ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
  • 31
    54-815504320 CLAMP,SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
    CLAMP,SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
  • 32
    12-22248 WASHER,GIMBAL HOUSING STUD
    WASHER,GIMBAL HOUSING STUD
  • 33
    11-34933 NUT,GIMBAL HOUSING STUD
    NUT,GIMBAL HOUSING STUD
  • 34
    32-41672A01 TUBE,WATER-GIMBAL HOUSING
    TUBE,WATER-GIMBAL HOUSING
  • 35
    23-28055 BUSHING,RUBBER-WATER TUBE SEALING
    BUSHING,RUBBER-WATER TUBE SEALING
  • 36
    32517 COVER,WATER TUBE SEALING BUSHING-GIMBAL HOUSING
    COVER,WATER TUBE SEALING BUSHING-GIMBAL HOUSING
  • 37
    10-28635 SCREW,WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
    SCREW,WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
  • 38
    53272A5 ELBOW ASSEMBLY,EXHAUST(MERCRUISER 120)
    ELBOW ASSEMBLY,EXHAUST(MERCRUISER 120)
  • 38
    53113A7 ELBOW ASSEMBLY,EXHAUST(MERCRUISER 140 AND 165)
    ELBOW ASSEMBLY,EXHAUST(MERCRUISER 140 AND 165)
  • 39
    45798 BRACKET,SUPPORT-WATER SEALING
    BRACKET,SUPPORT-WATER SEALING
  • 40
    10-37655 SCREW,SUPPORT BRACKET TO EXHAUST ELBOW(1/2")
    SCREW,SUPPORT BRACKET TO EXHAUST ELBOW(1/2")
  • 41
    11-859124 NUT,SUPPORT BRACKET SCREW
    NUT,SUPPORT BRACKET SCREW
  • 42
    10-35787 SCREW,EXHAUST ELBOW TO GIMBAL HAOUSING(2 1/4")-
    MERCRUISER 120
    SCREW,EXHAUST ELBOW TO GIMBAL HAOUSING(2 1/4")-
    MERCRUISER 120
  • 42
    10-37612 SCREW,EXHAUST ELBOW TO GIMBAL HOUSING(1 1/4")-
    MERCRUISER 140 AND 165
    SCREW,EXHAUST ELBOW TO GIMBAL HOUSING(1 1/4")-
    MERCRUISER 140 AND 165
  • 43
    13-35048 LOCKWASHER,EXHAUST ELBOW SCREW
    LOCKWASHER,EXHAUST ELBOW SCREW
  • 44
    27-70974 GASKET,GIMBAL HOUSING TO TRANSOM
    FOR USE WITH B-55698A4,B-58880A1 AND A5 HSG. ASS'Y
    GASKET,GIMBAL HOUSING TO TRANSOM
    FOR USE WITH B-55698A4,B-58880A1 AND A5 HSG. ASS'Y
  • 44
    27-65373 GASKET,GIMBAL HOUSING TO TRANSOM
    FOR USE WITH B-59844A5 AND B-63503A1 HOUSING ASS'Y
    GASKET,GIMBAL HOUSING TO TRANSOM
    FOR USE WITH B-59844A5 AND B-63503A1 HOUSING ASS'Y
  • 44
    65533A1 SEAL,GIMBAL HOUSING TO TRANSOM
    FOR USE WITH B-70861A1 HOUSING ASSEMBLY
    SEAL,GIMBAL HOUSING TO TRANSOM
    FOR USE WITH B-70861A1 HOUSING ASSEMBLY
  • 45
    45586 SHUTTER,WATER-EXHAUST ELBOW
    SHUTTER,WATER-EXHAUST ELBOW
  • 46
    45597A1 BELLOWS,EXHAUST ELBOW TO ENGINE(MERCRUISER 120)
    BELLOWS,EXHAUST ELBOW TO ENGINE(MERCRUISER 120)
  • 46
    53114A1 BELLOWS,EXHAUST ELBOW TO ENGINE (MERCRUISER 140 AND 165)
    BELLOWS,EXHAUST ELBOW TO ENGINE (MERCRUISER 140 AND 165)
  • 47
    54-815504352 CLAMP,BELLOWS ATTACHING(MERCRUISER 120)
    CLAMP,BELLOWS ATTACHING(MERCRUISER 120)
  • 47
    54-815504456 CLAMP,BELLOWS ATTACHING (MERCRUISER 140 AND 165)
    CLAMP,BELLOWS ATTACHING (MERCRUISER 140 AND 165)
  • 48
    27-476441 GASKET,HYDRAULIC CONNECTOR
    GASKET,HYDRAULIC CONNECTOR
  • 49
    47347 CONNECTOR,HYDRAULIC-GIMBAL HOUISNG
    CONNECTOR,HYDRAULIC-GIMBAL HOUISNG
  • 50
    11-35888 NUT,GIMBAL HOUISING TO HYDRAULIC CONNECTOR STUD
    NUT,GIMBAL HOUISING TO HYDRAULIC CONNECTOR STUD
  • 51
    57322T COVER,RETAINING-GIMBAL HOUSING
    WITH GIMBAL TRIM SENDER
    COVER,RETAINING-GIMBAL HOUSING
    WITH GIMBAL TRIM SENDER
  • 52
    10-28635 SCREW,COVER TO GIMBAL HOUSING (5/8")
    WITH GIMBAL TRIM SENDER
    SCREW,COVER TO GIMBAL HOUSING (5/8")
    WITH GIMBAL TRIM SENDER
  • 52
    337491 SEALER,EXHAUST ELBOW ATTACHING
    SEALER,EXHAUST ELBOW ATTACHING
