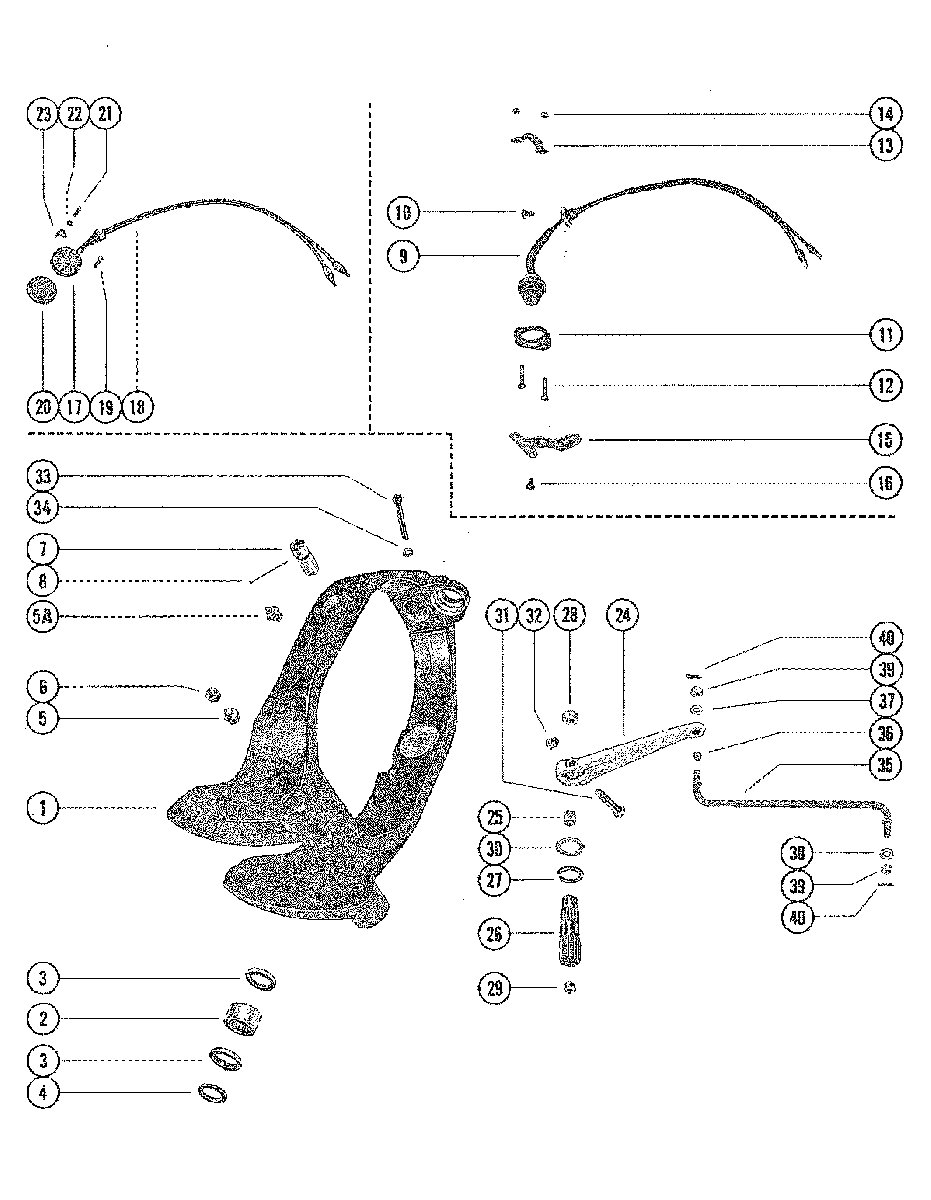

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - 165 1970-1977 2763442 THRU 4890459

  • №
    Артикул
    Название
  • 1
    87356A1 GIMBAL RING ASSEMBLY
    WITHOUT GIMBAL TRIM SENDER
    GIMBAL RING ASSEMBLY
    WITHOUT GIMBAL TRIM SENDER
  • 1
    88302A1 GIMBAL RING ASSEMBLY
    WITH GIMBAL TRIM SENDER
    GIMBAL RING ASSEMBLY
    WITH GIMBAL TRIM SENDER
  • 1
    88302A1 GIMBAL RING ASSEMBLY
    WITH GIMBAL TRIM SENDER AND GREASE FITTINGS FOR HINGE PINS
    GIMBAL RING ASSEMBLY
    WITH GIMBAL TRIM SENDER AND GREASE FITTINGS FOR HINGE PINS
  • 2
    31-32538 BEARING,ROLLER-GIMABL RING
    BEARING,ROLLER-GIMABL RING
  • 3
    26-32541 OIL SEAL,GIMBAL RING
    OIL SEAL,GIMBAL RING
  • 4
    23-39273 SPACER,GIMBAL RING
    SPACER,GIMBAL RING
  • 5
    22-69059 FITTING,GREASE-GIMBAL RING91/8-270
    FITTING,GREASE-GIMBAL RING91/8-270
  • 5A
    22-74036 FITTING,GREASE-GIMBAL RING (1/4-28)-USED WITH B-77124A2
    FITTING,GREASE-GIMBAL RING (1/4-28)-USED WITH B-77124A2
  • 6
    19-77633Q LUBRICAP,GIMBAL RING GREASE FITTING
    LUBRICAP,GIMBAL RING GREASE FITTING
  • 7
    17-77361A1 PIN,HINGE-GIMBAL RING TO BELL HOUSING
    PIN,HINGE-GIMBAL RING TO BELL HOUSING
  • 8
    17-77039 PIN,HINGE PIN RETAINING-GIMBAL RING
    PIN,HINGE PIN RETAINING-GIMBAL RING
  • 7
    77123 PIN,HINGE-THREADED WITHOUT GREASE GROOVE
    WITH GIMBAL TRIM SENDER
    PIN,HINGE-THREADED WITHOUT GREASE GROOVE
    WITH GIMBAL TRIM SENDER
  • 7
    77123 PIN,HINGE-THREADED WITH GREASE GROOVE
    WITH GIMBAL TRIM SENDER
    PIN,HINGE-THREADED WITH GREASE GROOVE
    WITH GIMBAL TRIM SENDER
  • 9
    45942A1 TILT STOP SWITCH ASSEMBLY,GIMBAL RING
    WITHOUT GIMBAL TRIM SENDER
    TILT STOP SWITCH ASSEMBLY,GIMBAL RING
    WITHOUT GIMBAL TRIM SENDER
  • 10
    10-20367 SCREW,TILT STOP SWITCH COVER TO GIMBAL RING(7/16")
    WITHOUT GIMBAL TRIM SENDER
    SCREW,TILT STOP SWITCH COVER TO GIMBAL RING(7/16")
    WITHOUT GIMBAL TRIM SENDER
  • 11
    31899 PLATE,RETAINING-TILT STOP SWITCH TO GIMBAL RING
    WITHOUT GIMBAL TRIM SENDER
    PLATE,RETAINING-TILT STOP SWITCH TO GIMBAL RING
    WITHOUT GIMBAL TRIM SENDER
  • 12
    10-45862 SCREW,RETAINING PLATE AND STRAP TO GIMBAL RING (7/8")
    WITHOUT GIMBAL TRIM SENDER
    SCREW,RETAINING PLATE AND STRAP TO GIMBAL RING (7/8")
    WITHOUT GIMBAL TRIM SENDER
  • 13
    32637 STRAP,TILT STOP SWITCH RETAINING
    WITHOUT GIMBAL TRIM SENDER
    STRAP,TILT STOP SWITCH RETAINING
    WITHOUT GIMBAL TRIM SENDER
  • 14
    11-20110 NUT,RETAINING PLATE AND STRAP SCREW
    WITHOUT GIMBAL TRIM SENDER
    NUT,RETAINING PLATE AND STRAP SCREW
    WITHOUT GIMBAL TRIM SENDER
  • 15
    49343 LEVER,ACTUATING-GIMBAL RING
    WITHOUT GIMBAL TRIM SENDER
    LEVER,ACTUATING-GIMBAL RING
    WITHOUT GIMBAL TRIM SENDER
  • 16
    10-31903 SCREW,ACTUATING LEVER TO GIMBAL RING (3/8")
    WITHOUT GIMBAL TRIM SENDER
    SCREW,ACTUATING LEVER TO GIMBAL RING (3/8")
    WITHOUT GIMBAL TRIM SENDER
  • 17
    64947 SENDER,DUMMY(STARBOARD SIDE)
    WITH GIMBAL TRIM SENDER
    SENDER,DUMMY(STARBOARD SIDE)
    WITH GIMBAL TRIM SENDER
  • 18
    84-19280 HARNESS,DUMMY SENDER
    WITH GIMBAL TRIM SENDER
    HARNESS,DUMMY SENDER
    WITH GIMBAL TRIM SENDER
  • 19
    10-46942 SCREW,HARNESS ATTCHING (5/16")
    WITH GIMBAL TRIM SENDER
    SCREW,HARNESS ATTCHING (5/16")
    WITH GIMBAL TRIM SENDER
  • 17
    63115A2 SWITCH ASSEMBLY,TRIM LIMIT (PORT SIDE)
    WITH GIMBAL TRIM SENDER
    SWITCH ASSEMBLY,TRIM LIMIT (PORT SIDE)
    WITH GIMBAL TRIM SENDER
  • 18
    84-19292 HARNESS,TRIM LIMIT SWITCH
    WITH GIMBAL TRIM SENDER
    HARNESS,TRIM LIMIT SWITCH
    WITH GIMBAL TRIM SENDER
  • 19
    10-63400 SCREW,HARNESS ATTACHING (5/32")
    WITH GIMBAL TRIM SENDER
    SCREW,HARNESS ATTACHING (5/32")
    WITH GIMBAL TRIM SENDER
  • 20
    85-63990 INSULATOR,SWITCH AND SENDER
    WITH GIMBAL TRIM SENDER
    INSULATOR,SWITCH AND SENDER
    WITH GIMBAL TRIM SENDER
  • 21
    10-37978 SCREW,SWITCH AND SENDER TO GIMBAL RING (3/4")
    WITH GIMBAL TRIM SENDER
    SCREW,SWITCH AND SENDER TO GIMBAL RING (3/4")
    WITH GIMBAL TRIM SENDER
  • 22
    13-26996 LOCKWASHE,SWITCH AND SENDER SCREW
    WITH GIMBAL TRIM SENDER
    LOCKWASHE,SWITCH AND SENDER SCREW
    WITH GIMBAL TRIM SENDER
  • 23
    57008 RETAINER,SWITCH AND SENDER SCREW
    WITH GIMBAL TRIM SENDER
    RETAINER,SWITCH AND SENDER SCREW
    WITH GIMBAL TRIM SENDER
  • 24
    88771A1 STEERING LEVER ASSEMBLY
    USE WITH LINK ROD NOT DRILLED FOR COTTER PIN
    STEERING LEVER ASSEMBLY
    USE WITH LINK ROD NOT DRILLED FOR COTTER PIN
  • 24
    88771A1 STEERING LEVER ASSEMBLY
    USE WITH LINK ROD DRILLED FOR COTTER PIN
    STEERING LEVER ASSEMBLY
    USE WITH LINK ROD DRILLED FOR COTTER PIN
  • 25
    23-52698 SLEEVE,STEERING LEVER
    SLEEVE,STEERING LEVER
  • 26
    32582 SHAFT,UPPER SWIVE
    WITHOUT GIMBAL TRIM SENDER
    SHAFT,UPPER SWIVE
    WITHOUT GIMBAL TRIM SENDER
  • 26
    88302A1 SHAFT,UPPER SWIVEL
    WITH GIMBAL TRIM SENDER
    SHAFT,UPPER SWIVEL
    WITH GIMBAL TRIM SENDER
  • 28
    11-8M2014641 NUT,UPPER SWIVEL SHAFT
    WITH GIMBAL TRIM SENDER
    NUT,UPPER SWIVEL SHAFT
    WITH GIMBAL TRIM SENDER
  • 29
    22-32561 PLUG,-PIPE-UPPER SWIVEL SHAFT
    WITH GIMBAL TRIM SENDER
    PLUG,-PIPE-UPPER SWIVEL SHAFT
    WITH GIMBAL TRIM SENDER
  • 30
    12-32996 WASHER,UPPER SWIVEL SHAFT (0.15)
    WITHOUT GIMBAL TRIM SENDER
    WASHER,UPPER SWIVEL SHAFT (0.15)
    WITHOUT GIMBAL TRIM SENDER
  • 30
    12-32997 WASHER,UPPER SWIVEL SHAFT(.063)
    WITHOUT GIMBAL TRIM SENDER
    WASHER,UPPER SWIVEL SHAFT(.063)
    WITHOUT GIMBAL TRIM SENDER
  • 30
    12-47683 WASHER,UPPER SWIVEL SHAFT(.0310)
    WITH GIMBAL TRIM SENDER
    WASHER,UPPER SWIVEL SHAFT(.0310)
    WITH GIMBAL TRIM SENDER
  • 30
    12-32997 WASHER,UPPER SWIVEL SHAFT (.063)
    WITH GIMBAL TRIM SENDER
    WASHER,UPPER SWIVEL SHAFT (.063)
    WITH GIMBAL TRIM SENDER
  • 31
    10-807204 SCREW,STEERING LEVER TO UPPER SWIVEL SHAFT (2")
    SCREW,STEERING LEVER TO UPPER SWIVEL SHAFT (2")
  • 32
    11-20696 NUT,STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
    NUT,STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
  • 33
    10-45833 SCREW,UPPER SWIVEL SHAFT(2 1/2")
    WITHOUT GIMBAL TRIM SENDER
    SCREW,UPPER SWIVEL SHAFT(2 1/2")
    WITHOUT GIMBAL TRIM SENDER
  • 34
    12-20546 WASHER,UPPER SWIVEL SHAFT SCREW
    WITHOUT GIMBAL TRIM SENDER
    WASHER,UPPER SWIVEL SHAFT SCREW
    WITHOUT GIMBAL TRIM SENDER
  • 35
    68291A2 STEERING LINK ROD ASSEMBLY
    LINK ROD NOT DRILLED FOR COTTER PIN
    STEERING LINK ROD ASSEMBLY
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 36
    23-52698 SLEEVE,STEERING LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
    SLEEVE,STEERING LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 37
    12-20086 WASHER,STEERING LINK ROD (1/16"THICK)
    LINK ROD NOT DRILLED FOR COTTER PIN
    WASHER,STEERING LINK ROD (1/16"THICK)
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 39
    11-8M0042636 NUT,STEERING LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
    NUT,STEERING LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 35
    68291A2 STEERING LINK ROD ASSEMBLY
    LINK ROD DRILLED FOR COTTER PIN
    STEERING LINK ROD ASSEMBLY
    LINK ROD DRILLED FOR COTTER PIN
  • 35
    68291A2 STEERING LINK ROD ASSEMBLY
    LINK ROD DRILLED FOR COTTER PIN
    STEERING LINK ROD ASSEMBLY
    LINK ROD DRILLED FOR COTTER PIN
  • 36
    23-52698 SLEEVE,STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN
    SLEEVE,STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN
  • 37
    12-20086 WASHER,STEERING LINK ROD (1/16"THICK)
    LINK ROD DRILLED FOR COTTER PIN
    WASHER,STEERING LINK ROD (1/16"THICK)
    LINK ROD DRILLED FOR COTTER PIN
  • 37
    12-46132 WASHER,STEERING LINK ROD (1/8"THICK)3
    LINK ROD DRILLED FOR COTTER PIN
    WASHER,STEERING LINK ROD (1/8"THICK)3
    LINK ROD DRILLED FOR COTTER PIN
  • 38
    11-55438 NUT,STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN
    NUT,STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN
  • 40
    18-45882 COTTER PIN,STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN
    COTTER PIN,STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN
