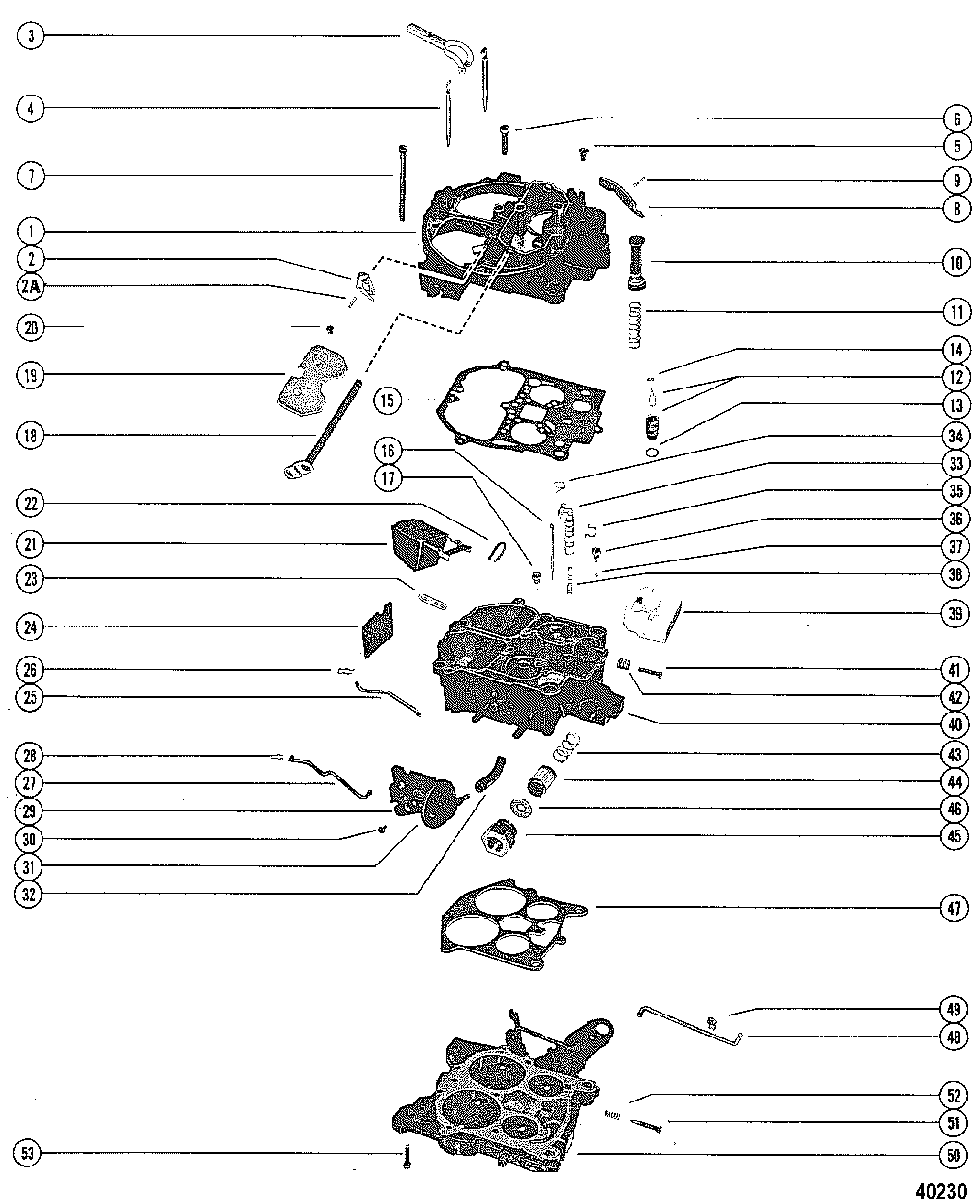

CARBURETOR ASSEMBLY, COMPLETE (Sight Glass on Fuel Pump) для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057
-
№АртикулНазвание
-
-1347-804623R02 CARBURETOR, COMPLETE
(STERNDRIVE)CARBURETOR, COMPLETE
(STERNDRIVE) -
-1347-804623R02 CARBURETOR, COMPLETE
(INBOARD)CARBURETOR, COMPLETE
(INBOARD) -
1N.S.S. Not Sold Separate, AIR HORN ASSEMBLYNot Sold Separate, AIR HORN ASSEMBLY
-
2N.S.S. Not Sold Separate, LEVER
(ROCHESTER #7048169)Not Sold Separate, LEVER
(ROCHESTER #7048169) -
2AN.S.S. Not Sold Separate, ROLL PIN, Lockout LeverNot Sold Separate, ROLL PIN, Lockout Lever
-
3N.S.S. Not Sold Separate, HOLDER KIT, Secondary Metering Rod
(ROCHESTER #7034522)Not Sold Separate, HOLDER KIT, Secondary Metering Rod
(ROCHESTER #7034522) -
4N.S.S. Not Sold Separate, METERING ROD, Secondary (STERNDRIVE)
ROCHESTER #7048092Not Sold Separate, METERING ROD, Secondary (STERNDRIVE)
ROCHESTER #7048092 -
4N.S.S. Not Sold Separate, METERING ROD, Secondary (INBOARD)
ROCHESTER #17053531Not Sold Separate, METERING ROD, Secondary (INBOARD)
ROCHESTER #17053531 -
5N.S.S. Not Sold Separate, SCREW (3/8")
ROCHESTER #7031105Not Sold Separate, SCREW (3/8")
ROCHESTER #7031105 -
6N.S.S. Not Sold Separate, SCREW (1")
ROCHESTER #7014699Not Sold Separate, SCREW (1")
ROCHESTER #7014699 -
7N.S.S. Not Sold Separate, SCREW (3")
ROCHESTER #7029912Not Sold Separate, SCREW (3")
ROCHESTER #7029912 -
8N.S.S. Not Sold Separate, LEVER, Actuating-Pump
(ROCHESTER #7048169)Not Sold Separate, LEVER, Actuating-Pump
(ROCHESTER #7048169) -
9N.S.S. Not Sold Separate, ROLL PIN, Hinge-Pump LeverNot Sold Separate, ROLL PIN, Hinge-Pump Lever
-
10N.S.S. Not Sold Separate, PUMP ASSEMBLYNot Sold Separate, PUMP ASSEMBLY
-
11N.S.S. Not Sold Separate, SPRING, Pump ReturnNot Sold Separate, SPRING, Pump Return
-
12N.S.S. Not Sold Separate, NEEDLE AND SEAT ASSEMBLYNot Sold Separate, NEEDLE AND SEAT ASSEMBLY
-
13N.S.S. Not Sold Separate, GASKET, Needle & SeatNot Sold Separate, GASKET, Needle & Seat
-
14N.S.S. Not Sold Separate, PULL CLIP, Float NeedleNot Sold Separate, PULL CLIP, Float Needle
-
15N.S.S. Not Sold Separate, GASKET, Air HornNot Sold Separate, GASKET, Air Horn
-
16N.S.S. Not Sold Separate, METERING ROD, PrimaryNot Sold Separate, METERING ROD, Primary
-
17N.S.S. Not Sold Separate, JET, PrimaryNot Sold Separate, JET, Primary
-
18N.S.S. Not Sold Separate, CHOKE SHAFT & LEVER ASSEMBLY
(ROCHESTER #7036059)Not Sold Separate, CHOKE SHAFT & LEVER ASSEMBLY
(ROCHESTER #7036059) -
19N.S.S. Not Sold Separate, VALVE, Choke-Choke Shaft
(ROCHESTER #7036021)Not Sold Separate, VALVE, Choke-Choke Shaft
(ROCHESTER #7036021) -
20N.S.S. Not Sold Separate, SCREW
(ROCHESTER #7029866)Not Sold Separate, SCREW
(ROCHESTER #7029866) -
211397-3327 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
2217-48140 PIN, HINGE - FLOATPIN, HINGE - FLOAT
-
23N.S.S. Not Sold Separate, LEVER, Intermediate Choke
(ROCHESTER #7031231)Not Sold Separate, LEVER, Intermediate Choke
(ROCHESTER #7031231) -
24N.S.S. Not Sold Separate, BAFFLE, Float Bowl
(ROCHESTER #7031365)Not Sold Separate, BAFFLE, Float Bowl
(ROCHESTER #7031365) -
25N.S.S. Not Sold Separate, ROD, Choke
(ROCHESTER #7031394)Not Sold Separate, ROD, Choke
(ROCHESTER #7031394) -
26N.S.S. Not Sold Separate, CLIP, Choke RodNot Sold Separate, CLIP, Choke Rod
-
27N.S.S. Not Sold Separate, ROD, Vacuum Control
(ROCHESTER #7038167)Not Sold Separate, ROD, Vacuum Control
(ROCHESTER #7038167) -
28N.S.S. Not Sold Separate, CLIP, Vacuum Control RodNot Sold Separate, CLIP, Vacuum Control Rod
-
29N.S.S. Not Sold Separate, BRACKET ASSEMBLY, Vacuum Control
(ROCHESTER #17060265)Not Sold Separate, BRACKET ASSEMBLY, Vacuum Control
(ROCHESTER #17060265) -
30N.S.S. Not Sold Separate, SCREW, Vacuum Control Bracket to Float Bowl
(ROCHESTER #7031925)Not Sold Separate, SCREW, Vacuum Control Bracket to Float Bowl
(ROCHESTER #7031925) -
311397-3317 CONTROL ASSEMBLY, VacuumCONTROL ASSEMBLY, Vacuum
-
32N.S.S. Not Sold Separate, HOSE, Vacuum
(ROCHESTER #7026339)Not Sold Separate, HOSE, Vacuum
(ROCHESTER #7026339) -
33N.S.S. Not Sold Separate, POWER PISTON ASSEMBLY
(ROCHESTER #7034637)Not Sold Separate, POWER PISTON ASSEMBLY
(ROCHESTER #7034637) -
34N.S.S. Not Sold Separate, SPRING, Metering Rod-Primary
(ROCHESTER #7029862)Not Sold Separate, SPRING, Metering Rod-Primary
(ROCHESTER #7029862) -
35N.S.S. Not Sold Separate, RETAINER, Power Piston
(ROCHESTER #7034339)Not Sold Separate, RETAINER, Power Piston
(ROCHESTER #7034339) -
36N.S.S. Not Sold Separate, RETAINER, Pump Dishcarge Ball
(ROCHESTER #7029849)Not Sold Separate, RETAINER, Pump Dishcarge Ball
(ROCHESTER #7029849) -
37N.S.S. Not Sold Separate, BALL, Pump DischargeNot Sold Separate, BALL, Pump Discharge
-
38N.S.S. Not Sold Separate, SPRING, Power Piston
(ROCHESTER #7029529)Not Sold Separate, SPRING, Power Piston
(ROCHESTER #7029529) -
39N.S.S. Not Sold Separate, INSERT, Float Bowl
(ROCHESTER #7034361)Not Sold Separate, INSERT, Float Bowl
(ROCHESTER #7034361) -
40N.S.S. Not Sold Separate, FLOAT BOWL ASSEMBLY
(ROCHESTER #7035358)Not Sold Separate, FLOAT BOWL ASSEMBLY
(ROCHESTER #7035358) -
41N.S.S. Not Sold Separate, SCREW, Idle Stop
(ROCHESTER#7002121)Not Sold Separate, SCREW, Idle Stop
(ROCHESTER#7002121) -
42N.S.S. Not Sold Separate, SPRING, Idle Stop Screw
(ROCHESTER#7003176)Not Sold Separate, SPRING, Idle Stop Screw
(ROCHESTER#7003176) -
433302-9032 SPRING, Filter NutSPRING, Filter Nut
-
4435-53336Q STRAINER, Fuel InletSTRAINER, Fuel Inlet
-
451397-3330 NUT, Filter-Fuel InletNUT, Filter-Fuel Inlet
-
46N.S.S. Not Sold Separate, GASKET, Filter NutNot Sold Separate, GASKET, Filter Nut
-
47N.S.S. Not Sold Separate, GASKET, Throttle Body
(ROCHESTER #7026138)Not Sold Separate, GASKET, Throttle Body
(ROCHESTER #7026138) -
48N.S.S. Not Sold Separate, ROD, Pump
(ROCHESTER #7026138)Not Sold Separate, ROD, Pump
(ROCHESTER #7026138) -
49N.S.S. Not Sold Separate, CLIP, Pump RodNot Sold Separate, CLIP, Pump Rod
-
50N.S.S. Not Sold Separate, THROTTLE BODY ASSEMBLY (Sterndrive)
(ROCHESTER #17058973)Not Sold Separate, THROTTLE BODY ASSEMBLY (Sterndrive)
(ROCHESTER #17058973) -
50N.S.S. Not Sold Separate, THROTTLE BODY ASSEMBLY (Inboard)
(ROCHESTER #17053531)Not Sold Separate, THROTTLE BODY ASSEMBLY (Inboard)
(ROCHESTER #17053531) -
51N.S.S. Not Sold Separate, IDLE NEEDLE, Throttle BodyNot Sold Separate, IDLE NEEDLE, Throttle Body
-
5224-87734 SPRING, Idle NeedleSPRING, Idle Needle
-
53N.S.S. Not Sold Separate, SCREW
(ROCHESTER #7035790)Not Sold Separate, SCREW
(ROCHESTER #7035790) -
--1397-3315 SPRING AND CAM KIT, Air ValveSPRING AND CAM KIT, Air Valve
-
--823426A1 OVERHAUL KIT
(STERNDRIVE)OVERHAUL KIT
(STERNDRIVE) -
--823426A1 OVERHAUL KIT
(INBOARD)OVERHAUL KIT
(INBOARD) -
--823426A1 GASKET SETGASKET SET
