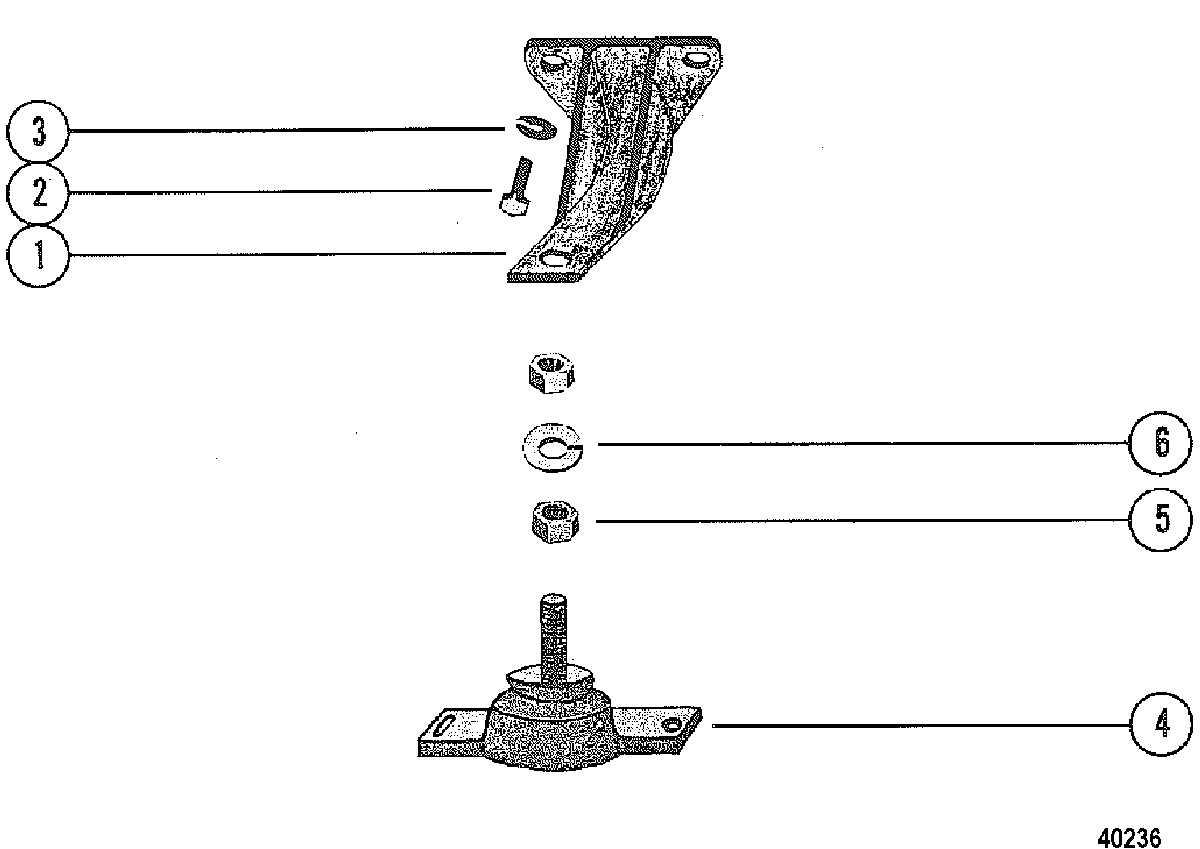

ENGINE MOUNTING(STERN DRIVE) для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE
    BRACKET, MOUNTING - ENGINE
  • 2
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
  • 2
    10-48424 SCREW, (.375-16 x 1.620), MOUNTING BRACKET TO ENGINE
    SCREW, (.375-16 x 1.620), MOUNTING BRACKET TO ENGINE
  • 3
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 4
    66284A2 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 5
    11-20739 NUT, (.750-16), JAM - MOUNTING BRACKET
    NUT, (.750-16), JAM - MOUNTING BRACKET
  • 6
    13-68102 LOCKWASHER, (.750), MOUNTING BRACKET
    LOCKWASHER, (.750), MOUNTING BRACKET
