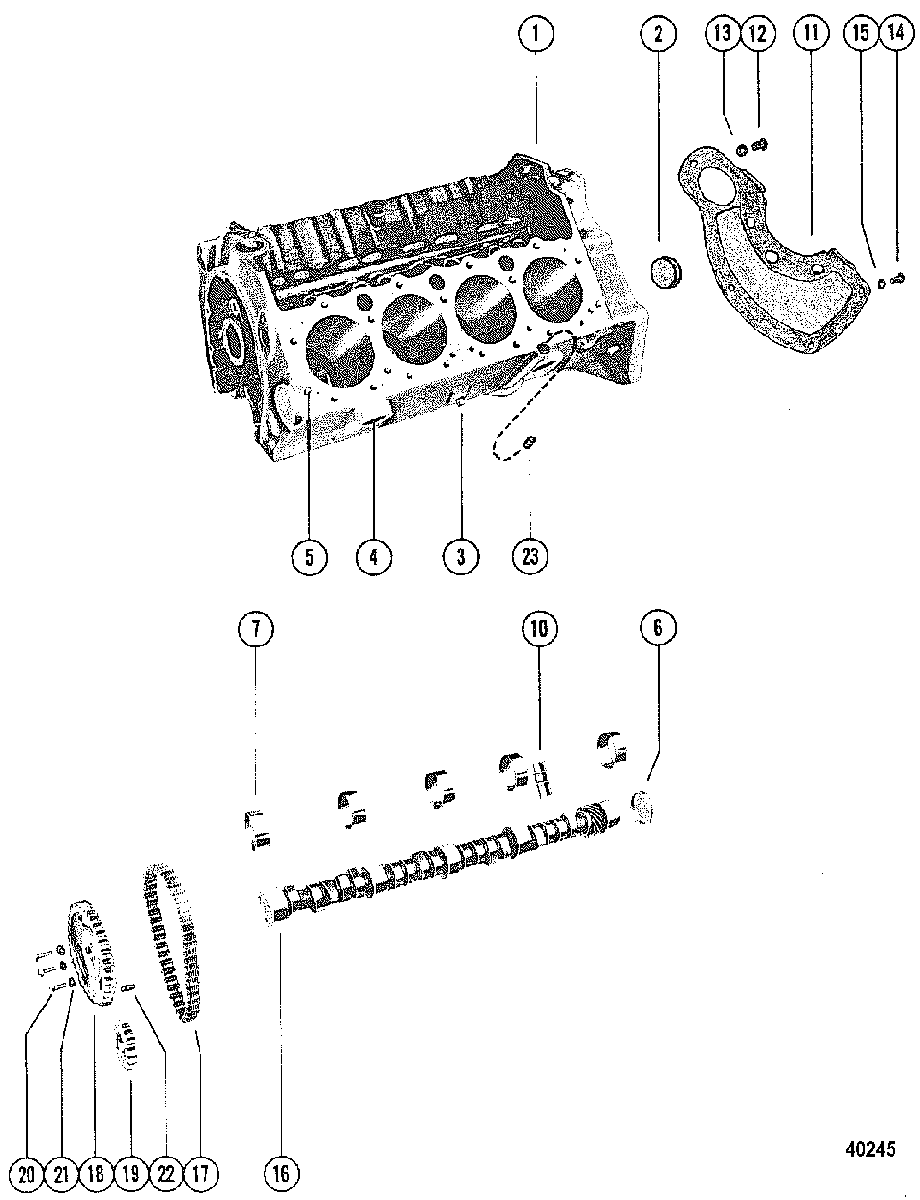

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057

  • №
    Артикул
    Название
  • 1
    841-6535 CYLINDER BLOCK
    (Includes only standard pistons, piston rings & crankshaft bearings) SN# 5515813 & Below
    CYLINDER BLOCK
    (Includes only standard pistons, piston rings & crankshaft bearings) SN# 5515813 & Below
  • 1
    841-8161 CYLINDER BLOCK ASSEMBLY
    (Includes only standard pistons, piston rings & crankshaft bearings) SN# 5515814 & Up
    CYLINDER BLOCK ASSEMBLY
    (Includes only standard pistons, piston rings & crankshaft bearings) SN# 5515814 & Up
  • 2
    19-35308 PLUG, (1.25 In.), EXPANSION - CYLINDER BLOCK
    PLUG, (1.25 In.), EXPANSION - CYLINDER BLOCK
  • 3
    22-16951Q1 FITTING, CYLINDER BLOCK
    FITTING, CYLINDER BLOCK
  • 4
    19-34270 EXPANSION PLUG, (1.625), CYLINDER BLOCK
    EXPANSION PLUG, (1.625), CYLINDER BLOCK
  • -
    22-32561 PLUG, (.250-18 x .41), PIPE - CYLINDER BLOCK
    PLUG, (.250-18 x .41), PIPE - CYLINDER BLOCK
  • 5
    17-35465 PIN, Dowel (.312), CYLINDER BLOCK TO CYLINDER HEAD
    PIN, Dowel (.312), CYLINDER BLOCK TO CYLINDER HEAD
  • 6
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-85674 BEARING SET, CAMSHAFT
    BEARING SET, CAMSHAFT
  • 10
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 11
    71995 COVER, TRANSMISSION HOUSING
    Sterndrive
    COVER, TRANSMISSION HOUSING
    Sterndrive
  • 12
    10-98253 SCREW, (1/2 In.), COVER ATTACHING
    Sterndrive
    SCREW, (1/2 In.), COVER ATTACHING
    Sterndrive
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel, COVER SCREW
    Sterndrive
    LOCKWASHER, (.250) Stainless Steel, COVER SCREW
    Sterndrive
  • 14
    10-98257 SCREW, (1/2 In.), COVER ATTACHING
    Sterndrive
    SCREW, (1/2 In.), COVER ATTACHING
    Sterndrive
  • 15
    13-39107 LOCKWASHER, (.312-24), COVER SCREW
    Sterndrive
    LOCKWASHER, (.312-24), COVER SCREW
    Sterndrive
  • 16
    431-5943 CAMSHAFT
    (L.H. ROTATION)
    CAMSHAFT
    (L.H. ROTATION)
  • 16
    431-884035 CAMSHAFT
    (R.H. ROTATION)
    CAMSHAFT
    (R.H. ROTATION)
  • 17
    35378 CHAIN, CAMSHAFT TIMING
    CHAIN, CAMSHAFT TIMING
  • 18
    17161A1 SPROCKET, CAMSHAFT TIMING (44 TEETH)
    (L.H. ROTATION)
    SPROCKET, CAMSHAFT TIMING (44 TEETH)
    (L.H. ROTATION)
  • 19
    17161A1 SPROCKET, CRANKSHAFT TIMING
    (L.H. ROTATION)
    SPROCKET, CRANKSHAFT TIMING
    (L.H. ROTATION)
  • 18
    43-14324 GEAR, TIMING - CAMSHAFT
    R.H. ROTATION
    GEAR, TIMING - CAMSHAFT
    R.H. ROTATION
  • 19
    43-14324 GEAR, TIMING - CRANKSHAFT
    R.H. ROTATION
    GEAR, TIMING - CRANKSHAFT
    R.H. ROTATION
  • 20
    10-34505 SCREW, (.312-18 x .875), CAMSHAFT TIMING SPROCKETS
    SCREW, (.312-18 x .875), CAMSHAFT TIMING SPROCKETS
  • 21
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 22
    17-24813 PIN, (1/4 In.), DOWEL - CAMSHAFT TIMING SPROCKET
    PIN, (1/4 In.), DOWEL - CAMSHAFT TIMING SPROCKET
  • 23
    19-71900 PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK
    Inboard
    PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK
    Inboard
  • -
    13412A1 SHORT BLOCK, MCM 228
    (Includes Internal Parts Plus Head)
    SHORT BLOCK, MCM 228
    (Includes Internal Parts Plus Head)
  • -
    87977A1 SHORT BLOCK, MIE 228 (L.H. Rotation)
    (Includes Internal Parts Plus Head)
    SHORT BLOCK, MIE 228 (L.H. Rotation)
    (Includes Internal Parts Plus Head)
  • -
    87980A1 SHORT BLOCK, MIE 228 (R.H. Rotation)
    (Includes Internal Parts Plus Head)
    SHORT BLOCK, MIE 228 (R.H. Rotation)
    (Includes Internal Parts Plus Head)
