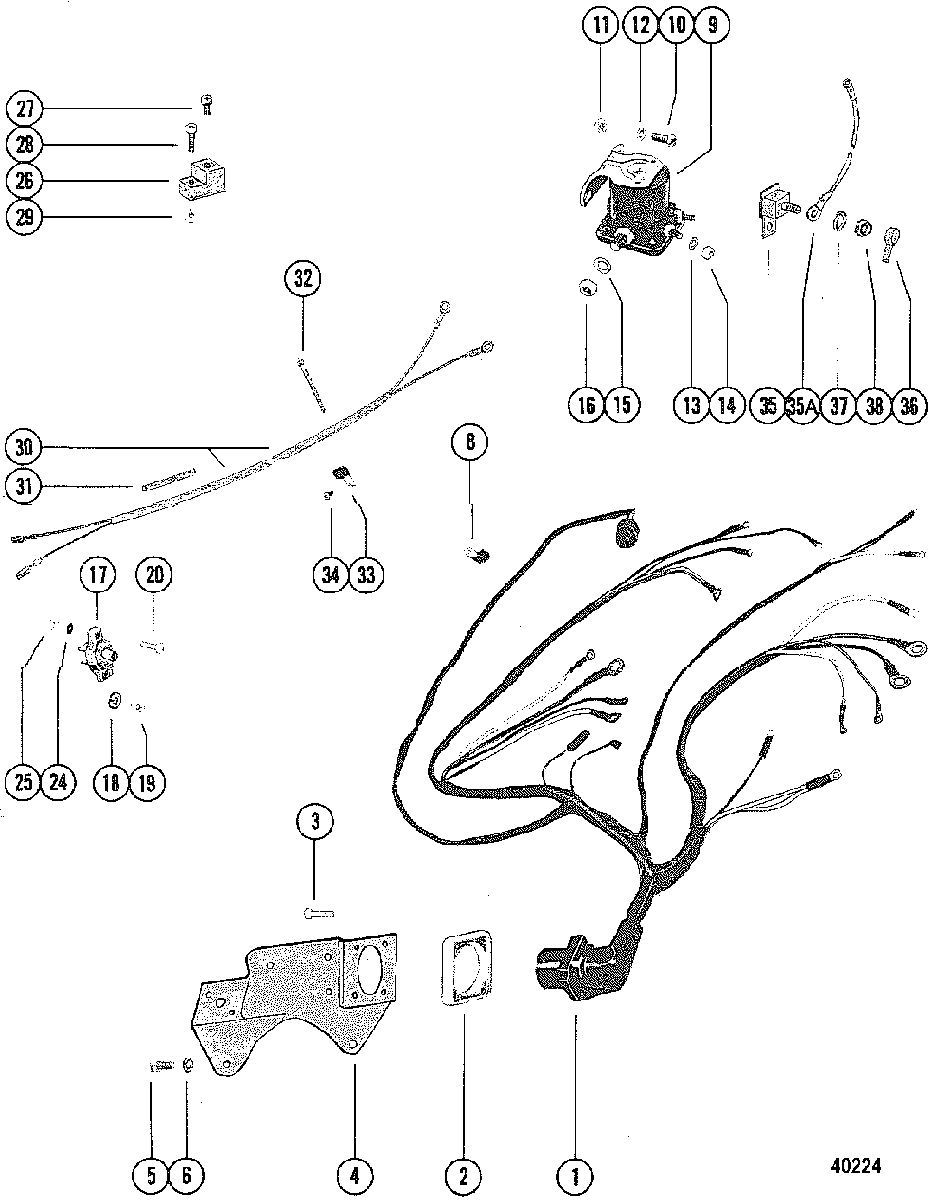

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057

  • №
    Артикул
    Название
  • 1
    84-86676A2 HARNESS ASSEMBLY (STERN DRIVE)
    SN# 5875713 & Below
    HARNESS ASSEMBLY (STERN DRIVE)
    SN# 5875713 & Below
  • 1
    84-93177A1 HARNESS ASSEMBLY (STERN DRIVE)
    SN# 5875714 & Up
    HARNESS ASSEMBLY (STERN DRIVE)
    SN# 5875714 & Up
  • 1
    84-86677A04 HARNESS ASSEMBLY (INBOARD)
    HARNESS ASSEMBLY (INBOARD)
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, (#8-32 x 3/4), WIRING HARNESS PLATE TO MOUNTING BRACKET
    SCREW, (#8-32 x 3/4), WIRING HARNESS PLATE TO MOUNTING BRACKET
  • 4
    77440A1 BRACKET, MOUNTING
    STERNDRIVE
    BRACKET, MOUNTING
    STERNDRIVE
  • 4
    87090T BRACKET, MOUNTING
    INBOARD
    BRACKET, MOUNTING
    INBOARD
  • 5
    10-34354 SCREW, (.375-16 x 1.50), MOUNTING BRACKET ATTACHING
    STERNDRIVE
    SCREW, (.375-16 x 1.50), MOUNTING BRACKET ATTACHING
    STERNDRIVE
  • 5
    10-47461 SCREW, (.437-14 x 1.00), MOUNTING BRACKET ATTACHING
    INBOARD
    SCREW, (.437-14 x 1.00), MOUNTING BRACKET ATTACHING
    INBOARD
  • 6
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    STERNDRIVE
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    STERNDRIVE
  • 6
    13-32993 LOCKWASHER, (.437), MOUNTING BRACKET SCREW
    INBOARD
    LOCKWASHER, (.437), MOUNTING BRACKET SCREW
    INBOARD
  • 8
    64884 TAB, WIRING HARNESS
    TAB, WIRING HARNESS
  • 9
    89-76416A1 SOLENOID ASSEMBLY, Starter
    STERNDRIVE
    SOLENOID ASSEMBLY, Starter
    STERNDRIVE
  • 9
    89-853654A1 SOLENOID, Starter
    INBOARD
    SOLENOID, Starter
    INBOARD
  • 10
    10-69028 SCREW, (.250-28 x .750) Stainless Steel, STARTER SOLENOID TO BRACKET
    STERNDRIVE
    SCREW, (.250-28 x .750) Stainless Steel, STARTER SOLENOID TO BRACKET
    STERNDRIVE
  • 10
    10-69054 SCREW, (.250-20 x .620), STARTER SOLENOID TO BRACKET
    INBOARD
    SCREW, (.250-20 x .620), STARTER SOLENOID TO BRACKET
    INBOARD
  • 11
    11-8267089 NUT, (.250-28), STARTER SOLENOID SCREW
    STERNDRIVE
    NUT, (.250-28), STARTER SOLENOID SCREW
    STERNDRIVE
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
    INBOARD
    LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
    INBOARD
  • 13
    13-26996 LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL
  • 14
    11-68219 NUT, (#10-32) Stainless Steel, STARTER SOLENOID TERMINAL
    NUT, (#10-32) Stainless Steel, STARTER SOLENOID TERMINAL
  • 15
    13-26993 LOCKWASHER, (.312), STARTER SOLENOID TERMINAL
    LOCKWASHER, (.312), STARTER SOLENOID TERMINAL
  • 16
    11-68292 NUT, (.312-18), STARTER SOLENOID TERMINAL
    NUT, (.312-18), STARTER SOLENOID TERMINAL
  • 17
    88-11178A01 BREAKER, Circuit, 40 AMP
    BREAKER, Circuit, 40 AMP
  • 18
    13-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 19
    11-68219 NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
    NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 20
    10-24637 SCREW, (#10-32 x .875), CIRCUIT BREAKER TO BRACKET
    SCREW, (#10-32 x .875), CIRCUIT BREAKER TO BRACKET
  • 24
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, CIRCUIT BREAKER SCREW
    WASHER, (.192 x .375 x .0312) Stainless Steel, CIRCUIT BREAKER SCREW
  • 25
    11-46438 NUT, (#10-32), CIRCUIT BREAKER SCREW
    NUT, (#10-32), CIRCUIT BREAKER SCREW
  • 26
    86-45915 TERMINAL BLOCK, ROTARY TRIM SENDER
    STERNDRIVE
    TERMINAL BLOCK, ROTARY TRIM SENDER
    STERNDRIVE
  • 27
    10-62568 SCREW, (#10-16 x .375), ROTARY TRIM SENDER LEADS
    STERNDRIVE
    SCREW, (#10-16 x .375), ROTARY TRIM SENDER LEADS
    STERNDRIVE
  • 28
    10-32228 SCREW, TERMINAL BLOCK (5/8")
    STERNDRIVE
    SCREW, TERMINAL BLOCK (5/8")
    STERNDRIVE
  • 29
    11-46438 NUT, (#10-32), TERMINAL BLOCK SCREW
    STERNDRIVE
    NUT, (#10-32), TERMINAL BLOCK SCREW
    STERNDRIVE
  • 30
    84-78581A1 HARNESS ASSEMBLY, ALTERNATOR (STERNDRIVE)
    Used With Fused Engines Only
    HARNESS ASSEMBLY, ALTERNATOR (STERNDRIVE)
    Used With Fused Engines Only
  • 30
    84-78581A1 HARNESS ASSEMBLY, ALTERNATOR (INBOARD)
    Used With Fused Engines Only
    HARNESS ASSEMBLY, ALTERNATOR (INBOARD)
    Used With Fused Engines Only
  • 31
    5790811 SLEEVE, WIRING HARNESS
    SLEEVE, WIRING HARNESS
  • 32
    61990 TIE STRAP, (14.00 Inches), WIRING HARNESS
    TIE STRAP, (14.00 Inches), WIRING HARNESS
  • 33
    54-78945 J CLAMP, Harness Support-IGNITION LEADS
    J CLAMP, Harness Support-IGNITION LEADS
  • 33
    54-78944 J CLIP, STARTER LEADS
    J CLIP, STARTER LEADS
  • 33
    54-73668 J-CLIP, MAIN HARNESS LEADS
    J-CLIP, MAIN HARNESS LEADS
  • 33
    54-54178 CLAMP, TEMPERATURE SENDER LEADS
    CLAMP, TEMPERATURE SENDER LEADS
  • 34
    10-98259 SCREW, (.375-16 x .50), "J" CLIP ATTACHING
    SCREW, (.375-16 x .50), "J" CLIP ATTACHING
  • 35
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    Used With Fused Engines Only
    FUSE ASSEMBLY, 90 Ampere
    Used With Fused Engines Only
  • 35
    84-79139A7 WIRE ASSEMBLY, 90 AMP FUSE
    Used With Fused Engines Only
    WIRE ASSEMBLY, 90 AMP FUSE
    Used With Fused Engines Only
  • 36
    85-79695T BOOT, Insulator - Black
    Used With Fused Engines Only
    BOOT, Insulator - Black
    Used With Fused Engines Only
  • 37
    13-24669 LOCKWASHER, FUSE STUD NUT
    Used With Fused Engines Only
    LOCKWASHER, FUSE STUD NUT
    Used With Fused Engines Only
  • 38
    11-21825 NUT, (.250-28), FUSE STUD
    Used With Fused Engines Only
    NUT, (.250-28), FUSE STUD
    Used With Fused Engines Only
