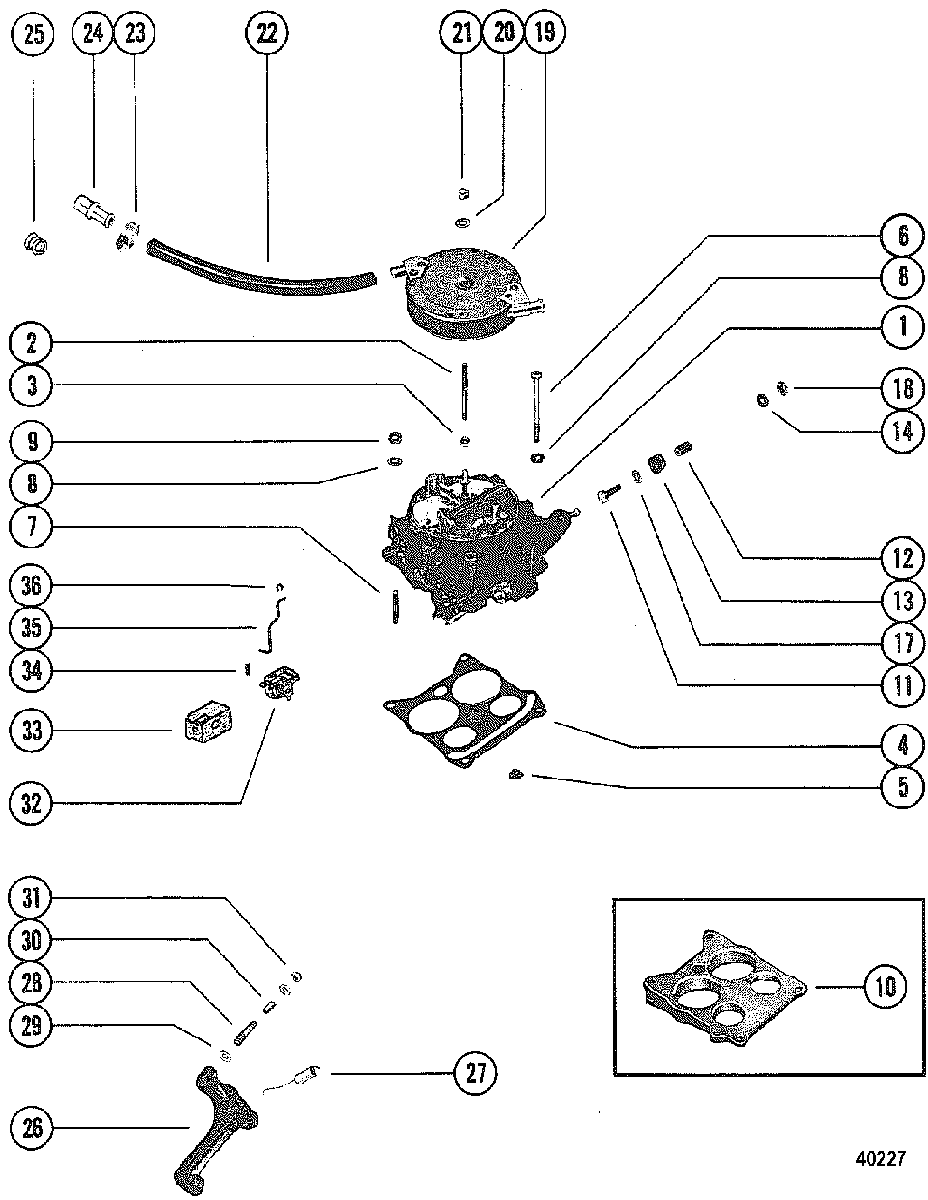

CARBURETOR AND AUTOMATIC CHOKE для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057

  • №
    Артикул
    Название
  • 1
    1347-804623R02 CARBURETOR (STERN DRIVE)
    USE WITH SIGHT GLASS
    CARBURETOR (STERN DRIVE)
    USE WITH SIGHT GLASS
  • 1
    1347-804623R02 CARBURETOR (STERN DRIVE)
    USE WITH SIGHT TUBE
    CARBURETOR (STERN DRIVE)
    USE WITH SIGHT TUBE
  • 1
    1347-804623R02 CARBURETOR (INBOARD)
    CARBURETOR (INBOARD)
  • 2
    16-91842 STUD, FLAME ARRESTOR MOUNTING-CARBURETOR
    STUD, FLAME ARRESTOR MOUNTING-CARBURETOR
  • 3
    11-8267139 NUT, JAM-FLAME ARRESTOR
    NUT, JAM-FLAME ARRESTOR
  • 4
    27-524572 GASKET, CARBURETOR
    (Quantity of 2 per Inboards)
    GASKET, CARBURETOR
    (Quantity of 2 per Inboards)
  • 5
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 6
    10-74822 SCREW, (3.5 In.), CARBURETOR MOUNTING
    STERNDRIVE
    SCREW, (3.5 In.), CARBURETOR MOUNTING
    STERNDRIVE
  • 7
    16-46857 STUD, (5/16 x 1-7/8), CARBURETOR MOUNTING
    STERNDRIVE
    STUD, (5/16 x 1-7/8), CARBURETOR MOUNTING
    STERNDRIVE
  • 8
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR MOUNTING STUD AND SCREW
    STERNDRIVE
    WASHER, (.328 x .562 x .062), CARBURETOR MOUNTING STUD AND SCREW
    STERNDRIVE
  • 9
    11-29250 NUT, (5/16-24), CARBURETOR MOUNTING STUD
    STERNDRIVE
    NUT, (5/16-24), CARBURETOR MOUNTING STUD
    STERNDRIVE
  • 7
    16-63332 STUD, (.312 x 1.2812), CARBURETOR MOUNTING
    INBOARD
    STUD, (.312 x 1.2812), CARBURETOR MOUNTING
    INBOARD
  • 7
    16-53724 STUD, (5/16 x 1-3/4), CARBURETOR MOUNTING
    INBOARD
    STUD, (5/16 x 1-3/4), CARBURETOR MOUNTING
    INBOARD
  • 7
    16-53722 STUD, (5/16 x 4-3/8), CARBURETOR MOUNTING
    INBOARD
    STUD, (5/16 x 4-3/8), CARBURETOR MOUNTING
    INBOARD
  • 8
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUDS
    INBOARD
    WASHER, (.328 x .562 x .062), CARBURETOR STUDS
    INBOARD
  • 9
    11-29250 NUT, (5/16-24), CARBURETOR STUDS
    INBOARD
    NUT, (5/16-24), CARBURETOR STUDS
    INBOARD
  • 10
    53513A4 WEDGE, CARBURETOR
    INBOARD
    WEDGE, CARBURETOR
    INBOARD
  • 11
    10-98509 SCREW, (.190-32 x 1.12), THROTTLE CABLE TO CARBURETOR
    SCREW, (.190-32 x 1.12), THROTTLE CABLE TO CARBURETOR
  • 12
    23-57938 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 13
    23-34948 SPACER, THROTTLE LEVER
    SPACER, THROTTLE LEVER
  • 14
    12-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
    WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
  • 17
    12-847883 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 18
    11-8267086 NUT, (#10-32), THROTTLE CABLE SCREW
    NUT, (#10-32), THROTTLE CABLE SCREW
  • 19
    805298A1 FLAME ARRESTOR, CARBURETOR
    FLAME ARRESTOR, CARBURETOR
  • 20
    12-86400 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 21
    11-826709109 NUT, (.250-28), FLAME ARRESTOR STUD
    NUT, (.250-28), FLAME ARRESTOR STUD
  • 22
    32-8M0062669 HOSE, VENT-CARBURETOR (12 1/2")
    HOSE, VENT-CARBURETOR (12 1/2")
  • 23
    54-53101 CLAMP, VENT HOSE ATTACHING
    CLAMP, VENT HOSE ATTACHING
  • 24
    47957 CONNECTOR, VENT HOSE TO ROCKER COVER
    CONNECTOR, VENT HOSE TO ROCKER COVER
  • 25
    23-8M0071559 GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
    GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
  • 26
    805359A02 BRACKET, MOUNTING-THROTTLE CABLE
    STERNDRIVE
    BRACKET, MOUNTING-THROTTLE CABLE
    STERNDRIVE
  • 26
    49929 BRACKET, MOUNTING-THROTTLE CABLE
    INBOARD
    BRACKET, MOUNTING-THROTTLE CABLE
    INBOARD
  • 27
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 28
    16-35897 STUD, (1 11/16), THROTTLE CABLE TO MOUNTING BRACKET
    STUD, (1 11/16), THROTTLE CABLE TO MOUNTING BRACKET
  • 29
    12-69056 WASHER, (.255 x .625 x .0312), THROTTLE CABLE STUD
    WASHER, (.255 x .625 x .0312), THROTTLE CABLE STUD
  • 30
    23-31866 SPACER, (.256 x .313 x .625), THROTTLE CABLE STUD
    SPACER, (.256 x .313 x .625), THROTTLE CABLE STUD
  • 31
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 32
    71464A01 CHOKE, AUTOMATIC-CARBURETOR
    CHOKE, AUTOMATIC-CARBURETOR
  • 33
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 34
    10-69235 SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
    SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
  • 35
    61112 ROD, AUTOMATIC CHOKE
    STERNDRIVE
    ROD, AUTOMATIC CHOKE
    STERNDRIVE
  • 35
    60915 ROD, AUTOMATIC CHOKE
    INBOARD
    ROD, AUTOMATIC CHOKE
    INBOARD
  • 36
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    STERNDRIVE
    CLIP, AUTOMATIC CHOKE ROD
    STERNDRIVE
  • 36
    54-48376 CLIP, AUTOMATIC CHOKE ROD
    INBOARD
    CLIP, AUTOMATIC CHOKE ROD
    INBOARD
