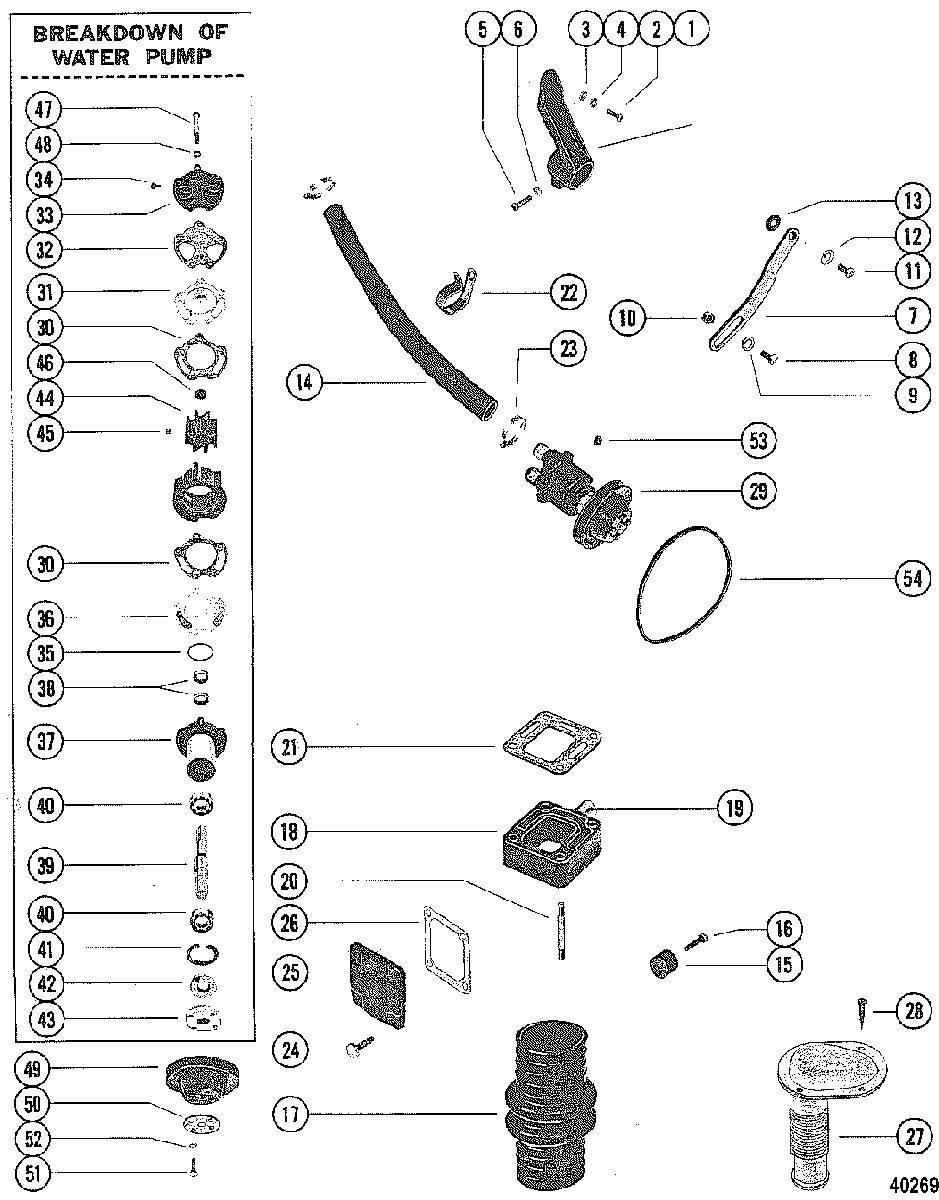

FRESH WATER COOLING INSTALLATION KIT для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057

  • №
    Артикул
    Название
  • -
    77518A1 INSTALLATION KIT, FRESH WATER COOLING
    INSTALLATION KIT, FRESH WATER COOLING
  • 1
    47488A1 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 2
    10-34353 SCREW, (.375-16 x 1.00), WATER PUMP BRACKET TO ENGINE
    SCREW, (.375-16 x 1.00), WATER PUMP BRACKET TO ENGINE
  • 3
    12-20553 WASHER, (.406 x .734 x .063), WATER PUMP BRACKET SCREW
    WASHER, (.406 x .734 x .063), WATER PUMP BRACKET SCREW
  • 4
    13-35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
    LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
  • 5
    10-34354 SCREW, (.375-16 x 1.50), CLAMPING - WATER PUMP BRACKET
    SCREW, (.375-16 x 1.50), CLAMPING - WATER PUMP BRACKET
  • 6
    13-35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
    LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
  • 7
    71648 BRACE, WATER PUMP
    BRACE, WATER PUMP
  • 8
    10-35786 SCREW, (.375-24 x 1.00), WATER PUMP BRACE TO WATER PUMP BRACKET
    SCREW, (.375-24 x 1.00), WATER PUMP BRACE TO WATER PUMP BRACKET
  • 9
    13-35048 LOCKWASHER, (3/8), WATER PUMP BRACE TO BRACKET SCREW
    LOCKWASHER, (3/8), WATER PUMP BRACE TO BRACKET SCREW
  • 10
    11-46335 NUT, WATER PUMP BRACE TO BRACKET SCREW
    NUT, WATER PUMP BRACE TO BRACKET SCREW
  • 11
    10-37612 SCREW, (.375-16 x 1.250), BRACE TO ENGINE
    SCREW, (.375-16 x 1.250), BRACE TO ENGINE
  • 12
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 13
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 14
    32-49044 HOSE, WATER PUMP TO THERMOSTAT HOUSING
    HOSE, WATER PUMP TO THERMOSTAT HOUSING
  • 15
    32877 PLUG, Transom Plate Water Inlet Block Off, WATER STOP - GIMBAL HOUSING
    PLUG, Transom Plate Water Inlet Block Off, WATER STOP - GIMBAL HOUSING
  • 16
    10-76630 SCREW, (1/4-20 x 1), Water Stop Cover Plate to Gimbal Housing
    SCREW, (1/4-20 x 1), Water Stop Cover Plate to Gimbal Housing
  • 17
    72408T BELLOWS, EXHAUST ELBOW
    BELLOWS, EXHAUST ELBOW
  • 18
    61937A1 HOUSING ASSEMBLY, Water Distribution
    HOUSING ASSEMBLY, Water Distribution
  • 19
    23-52020 SLEEVE, Hose, WATER DISTRIBUTION HOUSING
    SLEEVE, Hose, WATER DISTRIBUTION HOUSING
  • 20
    16-52988 STUD, (.375 x 3.25), EXHAUST MANIFOLD TO EXHAUST ELBOW
    STUD, (.375 x 3.25), EXHAUST MANIFOLD TO EXHAUST ELBOW
  • 21
    27-997772 GASKET, EXHAUST MANIFOLD TO EXHAUST ELBOW
    GASKET, EXHAUST MANIFOLD TO EXHAUST ELBOW
  • 22
    54-47715 CLIP, HOSE ATTACHING
    CLIP, HOSE ATTACHING
  • 23
    54-815504220 CLAMP, HOSE TO WATER PUMP AND THERMOSTAT HOUSING
    CLAMP, HOSE TO WATER PUMP AND THERMOSTAT HOUSING
  • 24
    10-25299 SCREW, (.312-18 x .75), END CAP ATTACHING
    SCREW, (.312-18 x .75), END CAP ATTACHING
  • 25
    73813A1 END CAP ASSEMBLY, Front - EXHAUST MANIFOLD - REAR
    END CAP ASSEMBLY, Front - EXHAUST MANIFOLD - REAR
  • 26
    27-807218 GASKET, END CAP TO EXHAUST MANIFOLD
    GASKET, END CAP TO EXHAUST MANIFOLD
  • 27
    68670A2 INTAKE ASSEMBLY, Water - Thru Hull
    INTAKE ASSEMBLY, Water - Thru Hull
  • 28
    10-68864 SCREW, WATER INTAKE ATTACHING
    SCREW, WATER INTAKE ATTACHING
  • --
    92-389271 LOCTITE, CAPSULE - WATER INTAKE TO TRANSOM SCREWS
    LOCTITE, CAPSULE - WATER INTAKE TO TRANSOM SCREWS
  • 29
    46-72774A32 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • 30
    27-94914 GASKET, WATER PUMP BODY TO WEAR PLATE
    GASKET, WATER PUMP BODY TO WEAR PLATE
  • 31
    94916 WEAR PLATE
    WEAR PLATE
  • 32
    27-8052151 GASKET, COVER TO OUTER WEAR PLATE
    GASKET, COVER TO OUTER WEAR PLATE
  • 33
    87631A5 COVER, WATER PUMP
    COVER, WATER PUMP
  • 34
    10-28642 SCREW, (#2 x 0.25), WATER PUMP DRIVE
    SCREW, (#2 x 0.25), WATER PUMP DRIVE
  • 35
    25-37340 O-RING, PUMP HOUSING TO INNER WEAR PLATE
    O-RING, PUMP HOUSING TO INNER WEAR PLATE
  • 36
    94576 WEAR PLATE
    WEAR PLATE
  • 37
    46-94913A1 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 38
    26-90562 SEAL, Oil, WATER PUMP SHAFT
    SEAL, Oil, WATER PUMP SHAFT
  • 39
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 40
    30-72961 BEARING, Ball, WATER PUMP SHAFT
    BEARING, Ball, WATER PUMP SHAFT
  • 41
    53-23720 RING, Retaining, SNAP
    RING, Retaining, SNAP
  • 42
    26-72785 SEAL, WATER PUMP SHAFT
    SEAL, WATER PUMP SHAFT
  • 43
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 44
    47-59362T1 IMPELLER ASSEMBLY
    IMPELLER ASSEMBLY
  • 45
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 46
    19-59504 PLUG, IMPELLER
    PLUG, IMPELLER
  • 47
    10-63328 SCREW, (.312-18 x 3.00), COVER TO BODY
    SCREW, (.312-18 x 3.00), COVER TO BODY
  • 48
    12-20084 WASHER, (.328 x .562 x .062), COVER TO BODY SCREW
    WASHER, (.328 x .562 x .062), COVER TO BODY SCREW
  • 49
    73798A1 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 50
    58265 RING, Clamping, PUMP PULLEY
    RING, Clamping, PUMP PULLEY
  • 51
    10-47277 SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
    SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
  • 52
    13-39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
    LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
  • 53
    22-390721 PLUG, (1/8 Inch Brass), WATER PUMP BODY
    PLUG, (1/8 Inch Brass), WATER PUMP BODY
  • 54
    57-74271Q BELT, WATER PUMP
    BELT, WATER PUMP
  • -
    77640A1 ADAPTOR KIT
    (Used With Power Steering Models)
    ADAPTOR KIT
    (Used With Power Steering Models)
