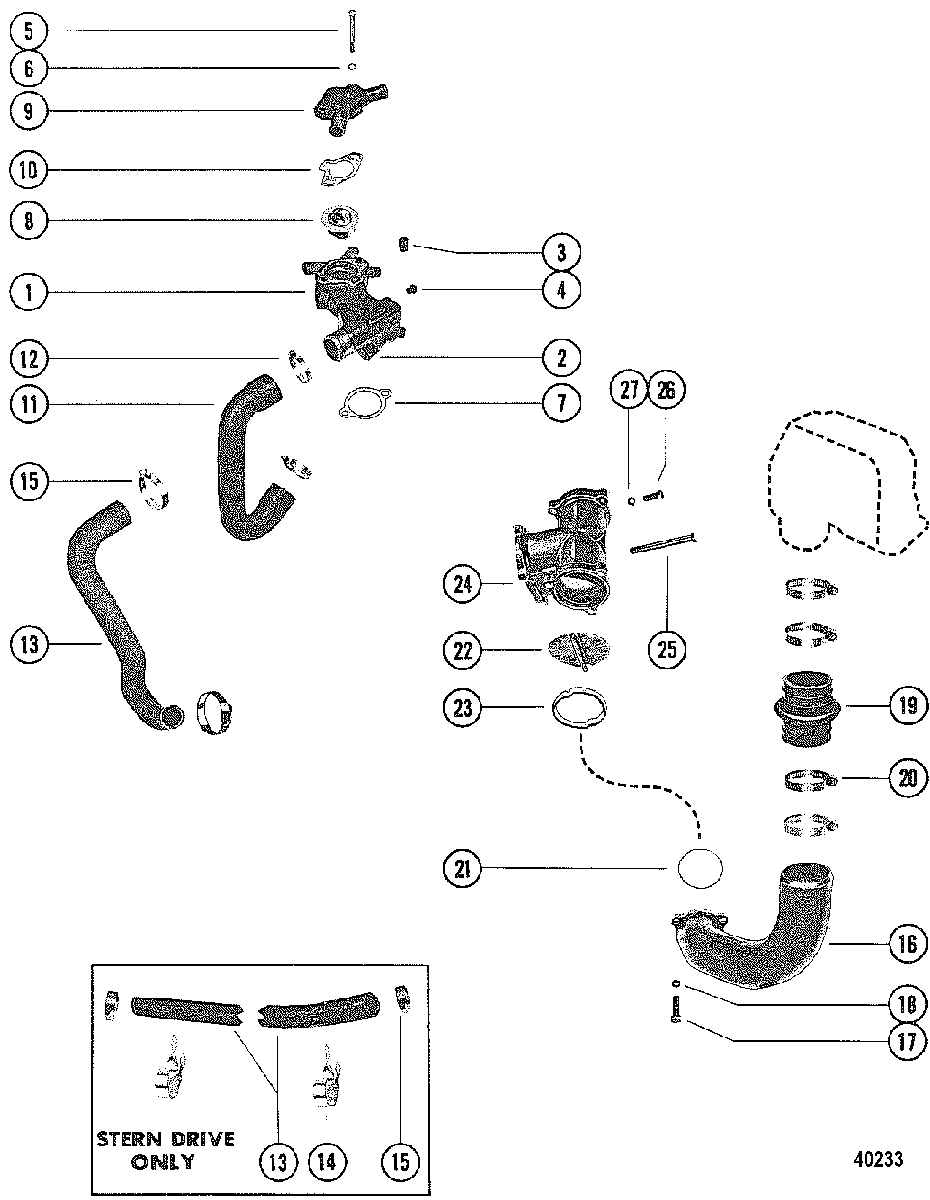

THERMOSTAT HOUSING для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057

  • №
    Артикул
    Название
  • 1
    78984A08 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 3
    22-47540 PLUG, Pipe - Allen Head (.375-18)
    PLUG, Pipe - Allen Head (.375-18)
  • 4
    22-416223 PLUG, (3/4-14), PIPE
    PLUG, (3/4-14), PIPE
  • 5
    10-60410 SCREW, (4.25 Inches), HOUSING TO INTAKE MANIFOLD
    SCREW, (4.25 Inches), HOUSING TO INTAKE MANIFOLD
  • 6
    13-35048 LOCKWASHER, (3/8), THERMOSTAT HOUSING SCREW
    LOCKWASHER, (3/8), THERMOSTAT HOUSING SCREW
  • 7
    27-530451 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 8
    8M0089715 THERMOSTAT, (140 Degrees)
    THERMOSTAT, (140 Degrees)
  • 9
    47441A1 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 10
    27-488181 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 11
    32-33189 HOSE, THERMOSTAT HOUSING TO WATER PUMP (MOLDED)
    HOSE, THERMOSTAT HOUSING TO WATER PUMP (MOLDED)
  • 12
    54-815504228 CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
    CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
  • 13
    32-77479A2 HOSE ASSEMBLY, HOUSING TO COOLER
    (STERNDRIVE) With Power Steering
    HOSE ASSEMBLY, HOUSING TO COOLER
    (STERNDRIVE) With Power Steering
  • 13
    32-76847A1 HOSE ASSEMBLY, HOUSING TO TRANSOM
    (STERNDRIVE) Without Power Steering
    HOSE ASSEMBLY, HOUSING TO TRANSOM
    (STERNDRIVE) Without Power Steering
  • 14
    54-47715 CLIP, HOSE ATTACHING
    (STERNDRIVE) Without Power Steering
    CLIP, HOSE ATTACHING
    (STERNDRIVE) Without Power Steering
  • 14
    54-64489 CLAMP, HOSE ATTACHING
    (STERNDRIVE) Without Power Steering
    CLAMP, HOSE ATTACHING
    (STERNDRIVE) Without Power Steering
  • 15
    54-815504220 CLAMP, HOSE ATTACHING
    (STERNDRIVE) Without Power Steering
    CLAMP, HOSE ATTACHING
    (STERNDRIVE) Without Power Steering
  • 16
    73738A4 ELBOW, EXHAUST
    (STERNDRIVE)
    ELBOW, EXHAUST
    (STERNDRIVE)
  • 17
    10-60992 SCREW, (.375-16 x 1.250), EXHAUST ELBOW
    (STERNDRIVE)
    SCREW, (.375-16 x 1.250), EXHAUST ELBOW
    (STERNDRIVE)
  • 18
    13-35048 LOCKWASHER, (.375), ELBOW SCREW
    (STERNDRIVE)
    LOCKWASHER, (.375), ELBOW SCREW
    (STERNDRIVE)
  • 19
    70981A3 BELLOWS, EXHAUST ELBOW
    (STERNDRIVE)
    BELLOWS, EXHAUST ELBOW
    (STERNDRIVE)
  • 20
    54-815504456 CLAMP, BELLOW TO EXHAUST ELBOW (UPPER)
    (STERNDRIVE)
    CLAMP, BELLOW TO EXHAUST ELBOW (UPPER)
    (STERNDRIVE)
  • 20
    54-815504372 CLAMP, BELLOW TO EXHAUST ELBOW (LOWER)
    (STERNDRIVE)
    CLAMP, BELLOW TO EXHAUST ELBOW (LOWER)
    (STERNDRIVE)
  • 21
    25-35029 O-RING, 78.97 X 3.53 MM, EXHAUST ELBOW TO TRANSOM PLATE
    (STERNDRIVE)
    O-RING, 78.97 X 3.53 MM, EXHAUST ELBOW TO TRANSOM PLATE
    (STERNDRIVE)
  • 22
    60930 SHUTTER, Water
    (STERNDRIVE)
    SHUTTER, Water
    (STERNDRIVE)
  • 23
    60931 RETAINER, WATER SHUTTER
    (STERNDRIVE)
    RETAINER, WATER SHUTTER
    (STERNDRIVE)
  • 24
    59825A9 SEPARATOR, EXHAUST
    (STERNDRIVE)
    SEPARATOR, EXHAUST
    (STERNDRIVE)
  • 25
    10-60835 SCREW, (5 In.), SEPERATOR TO HOUSING
    (STERNDRIVE)
    SCREW, (5 In.), SEPERATOR TO HOUSING
    (STERNDRIVE)
  • 26
    10-37612 SCREW, (.375-16 x 1.250), SEPARATOR TO HOUSING
    (STERNDRIVE)
    SCREW, (.375-16 x 1.250), SEPARATOR TO HOUSING
    (STERNDRIVE)
  • 27
    13-35048 LOCKWASHER, (.375), SEPARATOR SCREW
    (STERNDRIVE)
    LOCKWASHER, (.375), SEPARATOR SCREW
    (STERNDRIVE)
