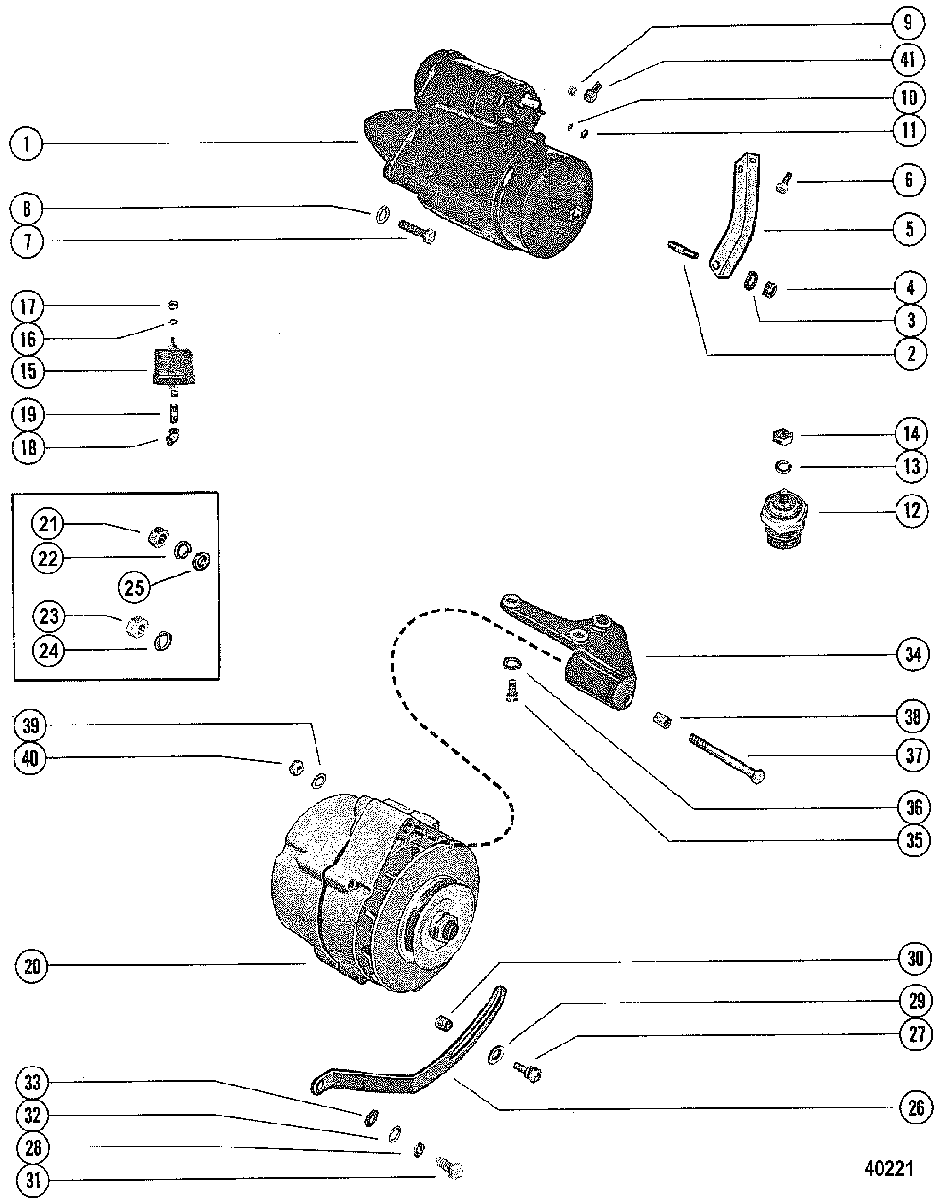

STARTER MOTOR AND ALTERNATOR для Mercruiser - 228 MIE (4 BBL.) GM 305 V-8 1979-1980 5170009 THRU 5907057

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY, STERN DRIVE
    (DELCO REMY #1108755)
    STARTER MOTOR ASSEMBLY, STERN DRIVE
    (DELCO REMY #1108755)
  • 1
    50-808011A05 STARTER MOTOR ASSEMBLY, INBOARD
    (DELCO REMY #1109485)
    STARTER MOTOR ASSEMBLY, INBOARD
    (DELCO REMY #1109485)
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY, INBOARD
    (DELCO REMY #1109484)
    STARTER MOTOR ASSEMBLY, INBOARD
    (DELCO REMY #1109484)
  • 3
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, STERN DRIVE
    WASHER, (.281 x .500 x .060) Stainless Steel, STERN DRIVE
  • 4
    11-29031 NUT, (1/4-20), STERN DRIVE
    NUT, (1/4-20), STERN DRIVE
  • 5
    35363 BRACE, STERN DRIVE
    BRACE, STERN DRIVE
  • 6
    10-35765A1 SCREW, (5/8), STERN DRIVE
    SCREW, (5/8), STERN DRIVE
  • 7
    10-94435001 BOLT, (.375-16 x 4.600), STARTER MOTOR TO CYLINDER BLOCK
    STERN DRIVE
    BOLT, (.375-16 x 4.600), STARTER MOTOR TO CYLINDER BLOCK
    STERN DRIVE
  • 7
    10-8053433 BOLT, (1 15/16), STARTER MOTOR TO CYLINDER BLOCK (1 15/16")
    STERN DRIVE
    BOLT, (1 15/16), STARTER MOTOR TO CYLINDER BLOCK (1 15/16")
    STERN DRIVE
  • 7
    10-47462 SCREW, (.437-14 x 1.250), STARTER MOTOR TO CYLINDER BLOCK
    INBOARD
    SCREW, (.437-14 x 1.250), STARTER MOTOR TO CYLINDER BLOCK
    INBOARD
  • 8
    13-32993 LOCKWASHER, (.437), INBOARD
    LOCKWASHER, (.437), INBOARD
  • 9
    11-32219 NUT, (.375-16), NON METRIC
    NUT, (.375-16), NON METRIC
  • 9
    11-400214 NUT, (M10 x 1.5), METRIC
    NUT, (M10 x 1.5), METRIC
  • 10
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 11
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 12
    97258A1 SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 13
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 14
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 15
    8M0068784 SENDER
    SENDER
  • 15
    87-805605A1 SWITCH, OIL PRESSURE
    INBOARD
    SWITCH, OIL PRESSURE
    INBOARD
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel, SWITCH TERMINAL
    INBOARD
    LOCKWASHER, (#10) Stainless Steel, SWITCH TERMINAL
    INBOARD
  • 17
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 17
    11-68219 NUT, (#10-32) Stainless Steel, SWITCH TERMINAL
    INBOARD
    NUT, (#10-32) Stainless Steel, SWITCH TERMINAL
    INBOARD
  • 18
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 19
    22-885153 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 20
    78403A2 ALTERNATOR ASSEMBLY
    (MOTOROLA #8MR2023F)
    ALTERNATOR ASSEMBLY
    (MOTOROLA #8MR2023F)
  • 21
    11-30968 NUT, (10-24), GROUND CABLE TO ALTERNATOR ATTACHING
    NUT, (10-24), GROUND CABLE TO ALTERNATOR ATTACHING
  • 22
    13-26996 LOCKWASHER, (#10) Stainless Steel, GROUND CABLE ATTACHING NUT
    LOCKWASHER, (#10) Stainless Steel, GROUND CABLE ATTACHING NUT
  • 23
    11-20890 NUT, (.250-20), ALTERNATOR TERMINAL
    NUT, (.250-20), ALTERNATOR TERMINAL
  • 24
    13-26992 LOCKWASHER, (.250) Stainless Steel, ALTERNATOR TERMINAL NUT
    LOCKWASHER, (.250) Stainless Steel, ALTERNATOR TERMINAL NUT
  • 25
    12-96457 WASHER, Phenolic (.27 x .81 x .062), BOOT ATTACHING (PHENOLIC)
    WASHER, Phenolic (.27 x .81 x .062), BOOT ATTACHING (PHENOLIC)
  • 26
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 27
    10-73657 SCREW, (.312-18 x 1.50), ALTERNATOR BRACE TO ALTERNATOR-STERN DRIVE
    SCREW, (.312-18 x 1.50), ALTERNATOR BRACE TO ALTERNATOR-STERN DRIVE
  • 27
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE TO ALTERNATOR -INBOARD
    SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE TO ALTERNATOR -INBOARD
  • 28
    13-39107 LOCKWASHER, (.312-24), ALTERNATOR BRACE SCREW
    LOCKWASHER, (.312-24), ALTERNATOR BRACE SCREW
  • 29
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 30
    23-90523 BUSHING, ALTERNATOR BRACE SCREW(STERN DRIVE)
    BUSHING, ALTERNATOR BRACE SCREW(STERN DRIVE)
  • 31
    10-98261 SCREW, (.375-16 x .75), ALTERNATOR BRACE TO CYLINDER BLOCK
    INBOARD
    SCREW, (.375-16 x .75), ALTERNATOR BRACE TO CYLINDER BLOCK
    INBOARD
  • 32
    13-35048 LOCKWASHER, (.375), ALTERNATOR
    INBOARD
    LOCKWASHER, (.375), ALTERNATOR
    INBOARD
  • 33
    12-20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACE SCREW
    INBOARD
    WASHER, (.406 x .734 x .063), ALTERNATOR BRACE SCREW
    INBOARD
  • 34
    48104A1 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 35
    10-76926 SCREW, (.375-16 x .875), ALTERNATOR BRACKET TO EXHAUST MANIFOLD
    SCREW, (.375-16 x .875), ALTERNATOR BRACKET TO EXHAUST MANIFOLD
  • 36
    13-35048 LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
    LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
  • 37
    10-48308 SCREW, (.375-24 x 3.750), ALTERNATOR TO ALTERNATOR BRACKET
    SCREW, (.375-24 x 3.750), ALTERNATOR TO ALTERNATOR BRACKET
  • 38
    23-33186 BUSHING, ALTERNATOR TO BRACKET SCREW
    BUSHING, ALTERNATOR TO BRACKET SCREW
  • 39
    12-20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREW
    WASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREW
  • 40
    11-23161 NUT, (.375-24), ALTERNATOR BRACKET SCREW
    NUT, (.375-24), ALTERNATOR BRACKET SCREW
  • 41
    85-79695T BOOT, Insulator - Black, STARTER TERMINAL
    BOOT, Insulator - Black, STARTER TERMINAL
