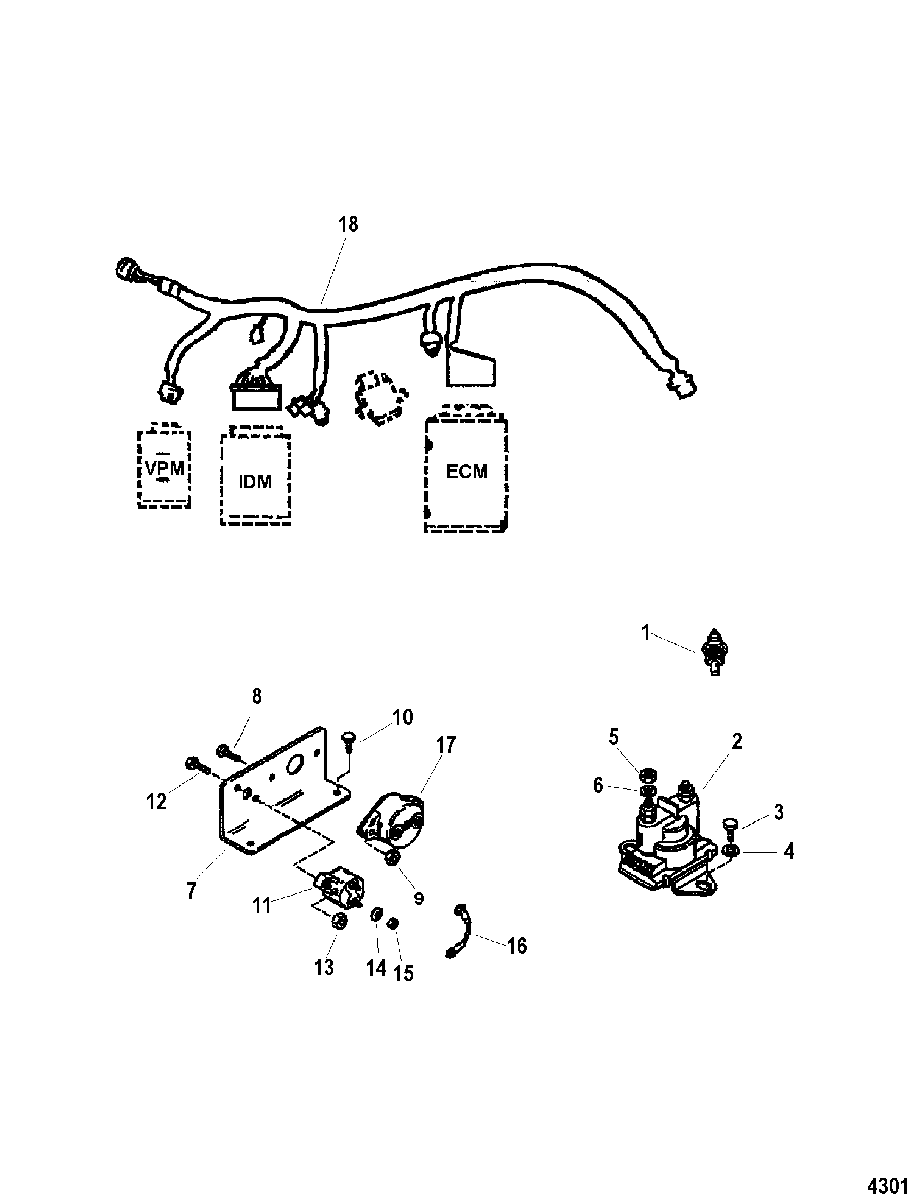

Wiring And Controls для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • 1
    87-806028 SWITCH, Water Temperature
    SWITCH, Water Temperature
  • 2
    89-850187T1 SOLENOID, Starter
    SOLENOID, Starter
  • 3
    10-802783 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 4
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 5
    11-20890 NUT, (.250-20)
    NUT, (.250-20)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    853244T BRACKET
    BRACKET
  • 8
    10-802784 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 9
    11-400211 NUT, (M5)
    NUT, (M5)
  • 10
    10-853442 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 11
    853404 BREAKER, Circuit - 30 Ampere
    BREAKER, Circuit - 30 Ampere
  • 12
    10-802784 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 13
    11-400211 NUT, (M5)
    NUT, (M5)
  • 14
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 15
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 16
    84-853507 WIRE, Breaker To Glow Plug
    WIRE, Breaker To Glow Plug
  • 16
    84-853444 WIRE, Breaker To Starter
    WIRE, Breaker To Starter
  • 16
    84-853506 WIRE, Breaker To Breaker
    WIRE, Breaker To Breaker
  • 16
    84-853493 WIRE, Breaker To Alternator
    WIRE, Breaker To Alternator
  • 16
    84-853500 WIRE, Battery To Mercathode
    WIRE, Battery To Mercathode
  • 16
    84-853415 WIRE, Mercathode To Engine
    WIRE, Mercathode To Engine
  • 17
    88-805692 BREAKER, Circuit - 150 Ampere
    BREAKER, Circuit - 150 Ampere
  • -
    853502 SENSOR, Air
    SENSOR, Air
  • 18
    84-853426 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
