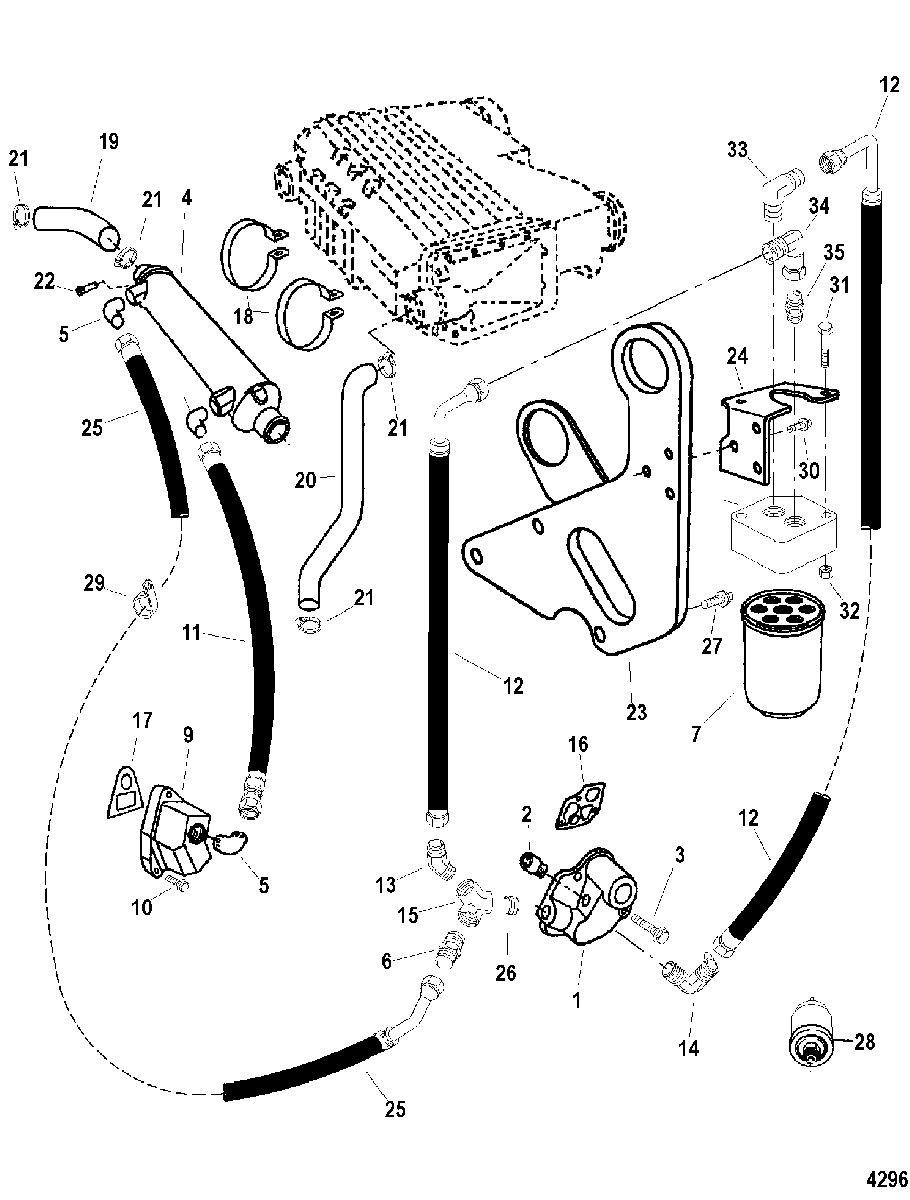

Oil Regulator And Cooler для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • 1
    862896A2 REGULATOR ASSEMBLY, Oil
    REGULATOR ASSEMBLY, Oil
  • 2
    19-853411 PLUG, (.75-14)
    PLUG, (.75-14)
  • 3
    10-853219 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 3
    10-853412 SCREW, (M8 x 70)
    SCREW, (M8 x 70)
  • 4
    853400T1 COOLER
    COOLER
  • 5
    22-853401 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 6
    22-853409 CONNECTOR
    CONNECTOR
  • 7
    35-805809T FILTER, (5.5 Inches - 139.7 mm)
    FILTER, (5.5 Inches - 139.7 mm)
  • 8
    863148A3 HEADER, Oil
    HEADER, Oil
  • 9
    863608 COVER, Oil Outlet
    COVER, Oil Outlet
  • 10
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 11
    32-853417 HOSE, Cooler To Engine
    HOSE, Cooler To Engine
  • 12
    32-802729 HOSE, Filter To Regulator
    HOSE, Filter To Regulator
  • 13
    22-802725 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 14
    22-853408 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 15
    22-862860 JUNCTION
    JUNCTION
  • 16
    27-853413 GASKET
    GASKET
  • 17
    27-853418 GASKET, Oil Cooler
    GASKET, Oil Cooler
  • 18
    54-853420 STRAP, Oil Cooler
    STRAP, Oil Cooler
  • 19
    32-853397 HOSE, Heat Exchanger To Oil Cooler
    HOSE, Heat Exchanger To Oil Cooler
  • 20
    32-853422 HOSE, Seawater Pump To Air Cooler
    HOSE, Seawater Pump To Air Cooler
  • 21
    54-8M2001502 CLAMP
    CLAMP
  • 22
    97-808112 ANODE
    ANODE
  • 23
    862887 BRACKET
    BRACKET
  • 24
    853047 BRACKET, Oil Header
    BRACKET, Oil Header
  • 25
    32-802728 HOSE, Cooler To Regulator
    HOSE, Cooler To Regulator
  • 26
    22-862860 CONNECTOR
    CONNECTOR
  • 27
    10-853451 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 28
    805267T SENDER, Oil Pressure
    SENDER, Oil Pressure
  • 29
    54-802792 CLAMP
    CLAMP
  • 30
    10-853466 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 31
    10-853377001 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 32
    11-853468 NUT, (M8)
    NUT, (M8)
  • 33
    22-853401 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 34
    22-802730 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 35
    22-802726 CONNECTOR
    CONNECTOR
