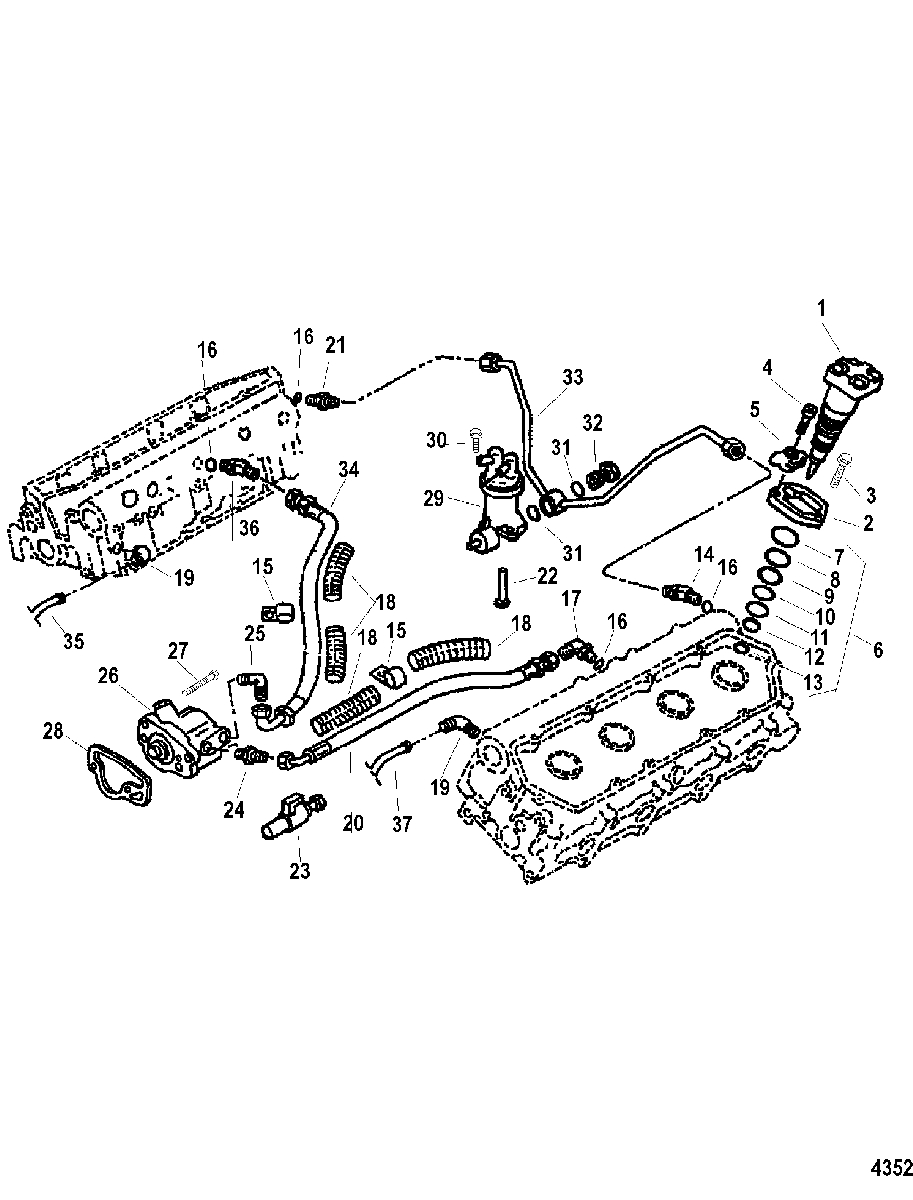

Injector Pressure And Fuel Pump для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • 1
    853280T INJECTOR
    INJECTOR
  • 2
    NSS NOT SOLD SEPARATE, Clamp, Injector
    NOT SOLD SEPARATE, Clamp, Injector
  • 3
    10-853281 SCREW, Injector Hold Down
    SCREW, Injector Hold Down
  • 3
    10-853282 SCREW, Injector Hold Down, Shoulder
    SCREW, Injector Hold Down, Shoulder
  • 4
    10-853278 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 5
    853279 SPOUT
    SPOUT
  • 6
    853428A1 SEAL SET, Injector
    SEAL SET, Injector
  • 7
    853428A1 RING, Injector Back-Up
    RING, Injector Back-Up
  • 8
    853428A1 RING, Injector Upper Cushion
    RING, Injector Upper Cushion
  • 9
    853428A1 SEAL, Injector Upper
    SEAL, Injector Upper
  • 10
    853428A1 SEAL, Injector Middle
    SEAL, Injector Middle
  • 11
    853428A1 RING, Injector Middle Cushion
    RING, Injector Middle Cushion
  • 12
    853428A1 SEAL, Injector Lower
    SEAL, Injector Lower
  • 13
    853428A1 GASKET, Injector
    GASKET, Injector
  • 14
    22-853290 CONNECTOR, (90 Degree)
    CONNECTOR, (90 Degree)
  • 15
    54-853368 CLAMP
    CLAMP
  • 16
    25-853134 O-RING
    O-RING
  • 17
    22-853295 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 18
    32-802774 CONDUIT
    CONDUIT
  • 19
    22-853297 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 20
    32-853298 HOSE, High Pressure Oil
    HOSE, High Pressure Oil
  • 21
    22-853150 CONNECTOR
    CONNECTOR
  • 22
    853205 TAPPET
    TAPPET
  • 23
    8M0060807 REGULATOR, Injection Oil Control
    REGULATOR, Injection Oil Control
  • 24
    NSS NOT SOLD SEPARATE, Connector
    NOT SOLD SEPARATE, Connector
  • 25
    NSS NOT SOLD SEPARATE, Elbow
    NOT SOLD SEPARATE, Elbow
  • 26
    853142 PUMP
    PUMP
  • 27
    10-853255 SCREW, (50 mm)
    SCREW, (50 mm)
  • 27
    10-853247 SCREW, (70 mm)
    SCREW, (70 mm)
  • 28
    27-853267 GASKET
    GASKET
  • 29
    853361 PUMP
    PUMP
  • 30
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 31
    27-853362 GASKET
    GASKET
  • 32
    10-853363 SCREW
    SCREW
  • 33
    32-8M0072614 TUBE, Fuel Supply
    TUBE, Fuel Supply
  • 34
    32-853365 HOSE, High Pressure Oil
    HOSE, High Pressure Oil
  • 35
    32-853366 HOSE, To Fuel Pressure Regulator
    HOSE, To Fuel Pressure Regulator
  • 36
    22-853367 CONNECTOR
    CONNECTOR
  • 37
    32-853430 HOSE, To Fuel Pressure Regulator
    HOSE, To Fuel Pressure Regulator
