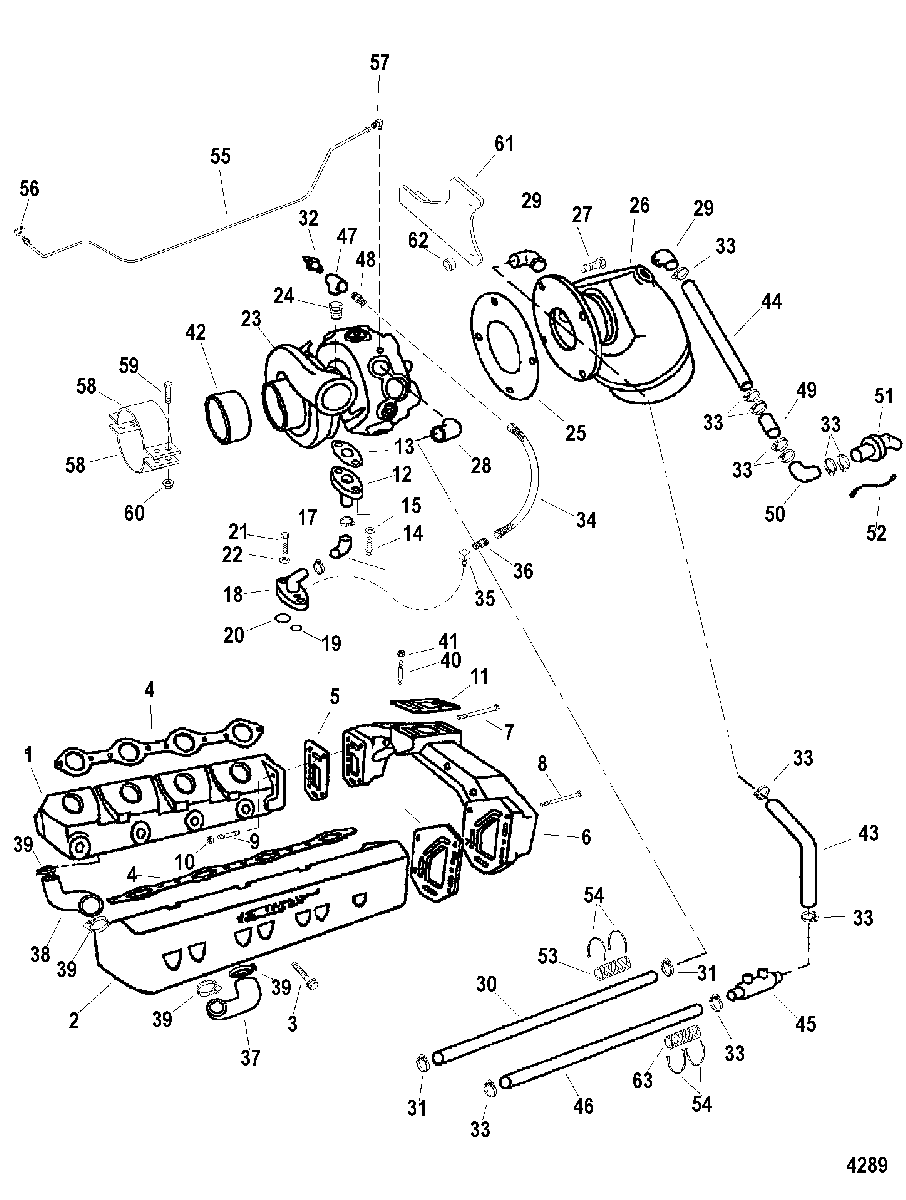

Exhaust Manifold And Turbocharger для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • 1
    853145T1 MANIFOLD ASSEMBLY, Exhaust, Starboard
    MANIFOLD ASSEMBLY, Exhaust, Starboard
  • 2
    853148T1 MANIFOLD ASSEMBLY, Exhaust, Port
    MANIFOLD ASSEMBLY, Exhaust, Port
  • -
    19-805921 PLUG, (1.25 Inch)
    PLUG, (1.25 Inch)
  • -
    853146 TUBE, Hose Connector
    TUBE, Hose Connector
  • 3
    10-853147 SCREW, (M10 x 90)
    SCREW, (M10 x 90)
  • 4
    27-853151 GASKET, Exhaust Manifold
    GASKET, Exhaust Manifold
  • 5
    27-853152 GASKET, Exhaust, Rear
    GASKET, Exhaust, Rear
  • 6
    853153A1 MANIFOLD ASSEMBLY, Rear
    MANIFOLD ASSEMBLY, Rear
  • -
    19-805921 PLUG, (1.25 Inch)
    PLUG, (1.25 Inch)
  • 7
    10-853155 SCREW, (M10 x 140)
    SCREW, (M10 x 140)
  • 8
    10-824848110 SCREW, (M10 x 110)
    SCREW, (M10 x 110)
  • 9
    16-802780 STUD, (M10 x 50)
    STUD, (M10 x 50)
  • 10
    11-853447 NUT, (M10)
    NUT, (M10)
  • 11
    27-853157 GASKET, Turbo
    GASKET, Turbo
  • 12
    853158T PIPE, Worm Gear, Upper Drain
    PIPE, Worm Gear, Upper Drain
  • 13
    27-805842 GASKET
    GASKET
  • 14
    10-30206 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 15
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 16
    32-853477 HOSE, Power Steering Cooler To Exhaust Elbow, Turbo Oil Drain
    HOSE, Power Steering Cooler To Exhaust Elbow, Turbo Oil Drain
  • 17
    54-815504210 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 18
    32-853162 PIPE, Power Steering, Lower
    PIPE, Power Steering, Lower
  • 19
    25-853159 O-RING, Small
    O-RING, Small
  • 20
    25-853160 O-RING, Large
    O-RING, Large
  • 21
    10-853219 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 22
    12-853373 WASHER
    WASHER
  • 23
    853164T TURBOCHARGER
    TURBOCHARGER
  • 24
    22-48556 BUSHING, Reducer
    BUSHING, Reducer
  • 25
    27-853166 GASKET, Exhaust Elbow
    GASKET, Exhaust Elbow
  • 26
    853167A1 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 27
    10-853266002 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 27
    10-853451 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 28
    22-805846 ELBOW, (1 NPT x 1.25 Hose Bib)
    ELBOW, (1 NPT x 1.25 Hose Bib)
  • 29
    22-853168 ELBOW, (1.25 NPT x 1.50 Hose Bib)
    ELBOW, (1.25 NPT x 1.50 Hose Bib)
  • 30
    32-853169 HOSE, Turbo To Heat Exchanger
    HOSE, Turbo To Heat Exchanger
  • 31
    54-815504222 CLAMP, (8.00 Inches)
    CLAMP, (8.00 Inches)
  • 32
    87-805605A1 SWITCH, Oil Pressure
    SWITCH, Oil Pressure
  • 33
    54-8M2001502 CLAMP
    CLAMP
  • 34
    32-805839 HOSE
    HOSE
  • 35
    22-853173 ELBOW
    ELBOW
  • 36
    22-806133 CONNECTOR
    CONNECTOR
  • 37
    32-898419 HOSE, Port
    HOSE, Port
  • 38
    32-853179 HOSE, Starboard
    HOSE, Starboard
