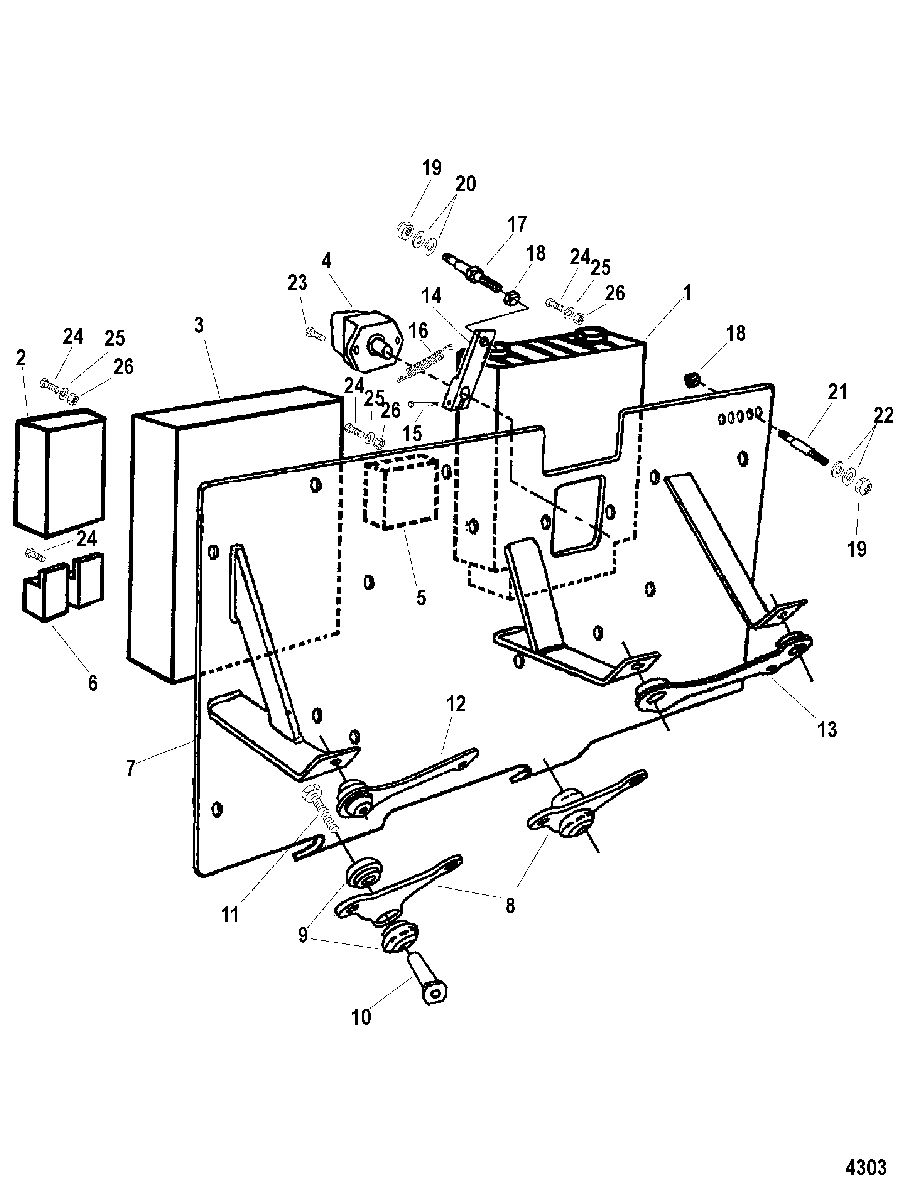

Electronic Panel для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • 1
    853503 MODULE
    MODULE
  • 2
    853501T Vessel Protection Module
    Vessel Protection Module
  • 3
    853495 MODULE
    MODULE
  • -
    16-802779 STUD, Injection Driver Module
    STUD, Injection Driver Module
  • -
    12-853211 WASHER
    WASHER
  • -
    11-802777 NUT, (M6)
    NUT, (M6)
  • 4
    853497 CONTROL, Throttle
    CONTROL, Throttle
  • 5
    853494 SENSOR, Map
    SENSOR, Map
  • -
    32-8M0108355 HOSE, (57.00 Inches Bulk), Map Sensor
    HOSE, (57.00 Inches Bulk), Map Sensor
  • -
    54-805816 CLAMP, Hose, Map Sensor
    CLAMP, Hose, Map Sensor
  • 6
    821509T01 RELAY
    RELAY
  • 7
    853496 BRACKET, Electronics
    BRACKET, Electronics
  • 8
    853499 BRACKET, Isolator, Small
    BRACKET, Isolator, Small
  • 9
    25-853470 ISOLATOR
    ISOLATOR
  • 10
    853504 SPACER
    SPACER
  • 11
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 12
    853109 BRACKET
    BRACKET
  • 13
    853293T BRACKET, Isolator, Large
    BRACKET, Isolator, Large
  • 14
    853498 LEVER, Throttle Control
    LEVER, Throttle Control
  • 15
    10-853097 SCREW, (M4 x 20)
    SCREW, (M4 x 20)
  • 16
    24-91821 SPRING
    SPRING
  • 17
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 18
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 19
    11-826709109 NUT, (.250-28), Thin
    NUT, (.250-28), Thin
  • 20
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 21
    16-818192 STUD
    STUD
  • 22
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 23
    10-802783 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 24
    10-4009416 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 25
    12-853211 WASHER
    WASHER
  • 26
    11-802777 NUT, (M6)
    NUT, (M6)
