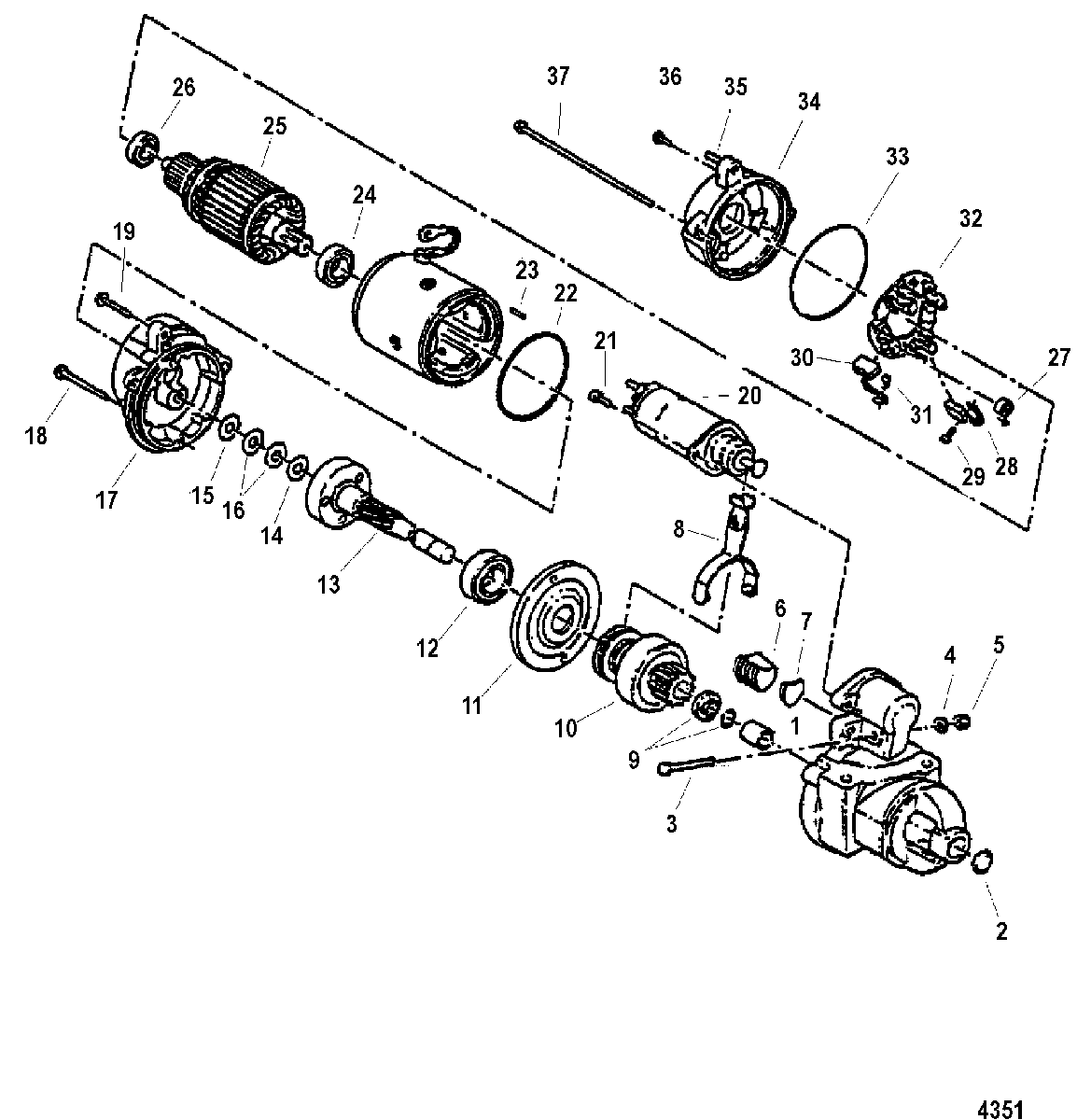

Starter Motor для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • -
    50-805833T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    23-808305 BUSHING
    BUSHING
  • 2
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 3
    NSS NOT SOLD SEPARATE, Screw (M6 x 50.8)
    NOT SOLD SEPARATE, Screw (M6 x 50.8)
  • 4
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 5
    NSS NOT SOLD SEPARATE, Nut (M6)
    NOT SOLD SEPARATE, Nut (M6)
  • 6
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 7
    NSS NOT SOLD SEPARATE, Plate
    NOT SOLD SEPARATE, Plate
  • 8
    808310 LEVER, Shift
    LEVER, Shift
  • 9
    808311 STOP, Pinion
    STOP, Pinion
  • 10
    808301T DRIVE, Clutch
    DRIVE, Clutch
  • 11
    808316 BRACKET, Support
    BRACKET, Support
  • 12
    30-808309 BEARING, Ball, Center Support
    BEARING, Ball, Center Support
  • 13
    803862 DRIVESHAFT
    DRIVESHAFT
  • 14
    NSS NOT SOLD SEPARATE, Washer, Thick
    NOT SOLD SEPARATE, Washer, Thick
  • 15
    NSS NOT SOLD SEPARATE, Washer, Thin
    NOT SOLD SEPARATE, Washer, Thin
  • 16
    NSS NOT SOLD SEPARATE, Washer, Fiber
    NOT SOLD SEPARATE, Washer, Fiber
  • 17
    803873 BRACKET, Support
    BRACKET, Support
  • 18
    NSS NOT SOLD SEPARATE, Screw (M6 x 60)
    NOT SOLD SEPARATE, Screw (M6 x 60)
  • 19
    NSS NOT SOLD SEPARATE, Screw (M6 x 35)
    NOT SOLD SEPARATE, Screw (M6 x 35)
  • 20
    808299 SOLENOID
    SOLENOID
  • 21
    NSS NOT SOLD SEPARATE, Screw (M6 x 19.1)
    NOT SOLD SEPARATE, Screw (M6 x 19.1)
  • 22
    NSS NOT SOLD SEPARATE, Spacer
    NOT SOLD SEPARATE, Spacer
  • 23
    NSS NOT SOLD SEPARATE, Pin, Roll
    NOT SOLD SEPARATE, Pin, Roll
  • 24
    30-808307 BEARING, Ball, Drive End
    BEARING, Ball, Drive End
  • 25
    808312T ARMATURE
    ARMATURE
  • 26
    30-808308 BEARING, Ball, Commutator End
    BEARING, Ball, Commutator End
  • 27
    24-808306 SPRING, Brush
    SPRING, Brush
  • 28
    808303 GROUND BRUSH
    GROUND BRUSH
  • 29
    NSS NOT SOLD SEPARATE, Screw (M4 x 4.94)
    NOT SOLD SEPARATE, Screw (M4 x 4.94)
  • 30
    808304 GROUND
    GROUND
  • 31
    NSS NOT SOLD SEPARATE, Screw (M4 x 4.8)
    NOT SOLD SEPARATE, Screw (M4 x 4.8)
  • 32
    808302 HOLDER, Brush
    HOLDER, Brush
  • 33
    25-803863 O-RING
    O-RING
  • 34
    808313 FRAME, Commutator End
    FRAME, Commutator End
  • 35
    NSS NOT SOLD SEPARATE, Stud
    NOT SOLD SEPARATE, Stud
  • 36
    NSS NOT SOLD SEPARATE, Screw (M5 x 14.3)
    NOT SOLD SEPARATE, Screw (M5 x 14.3)
  • 37
    NSS NOT SOLD SEPARATE, Bolt, Thru (M6 x 181)
    NOT SOLD SEPARATE, Bolt, Thru (M6 x 181)
