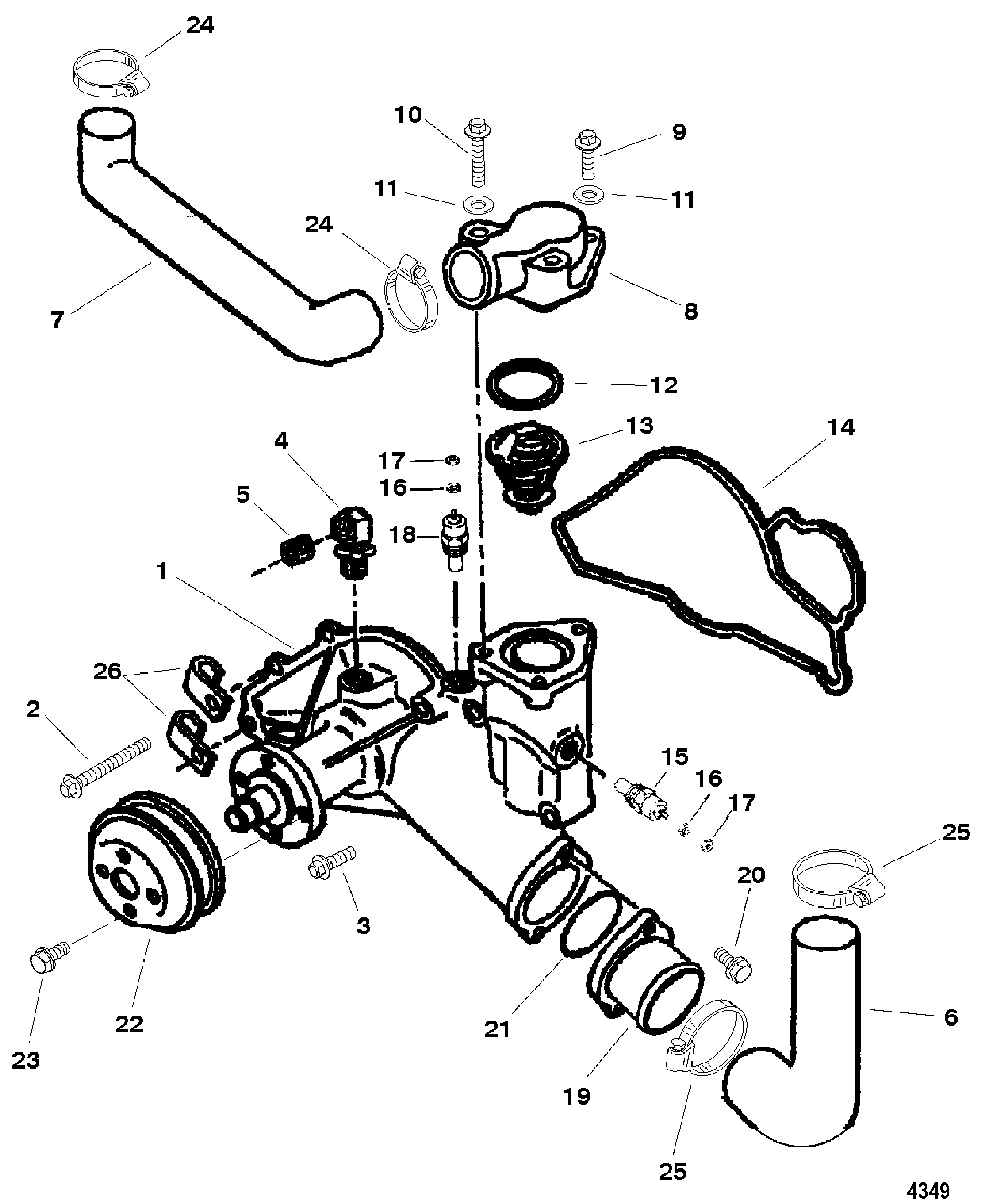

Water Pump для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • 1
    853224T PUMP, Water
    PUMP, Water
  • 2
    10-853226 SCREW, (M8 x 100)
    SCREW, (M8 x 100)
  • 3
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 4
    22-853196 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 5
    19-853228 PLUG
    PLUG
  • 6
    32-853229 HOSE, Water Pump To Heat Exchanger
    HOSE, Water Pump To Heat Exchanger
  • 7
    32-853231 HOSE, Thermostat Housing To Heat Exchanger
    HOSE, Thermostat Housing To Heat Exchanger
  • 8
    853208 HOUSING, Thermostat
    HOUSING, Thermostat
  • 9
    10-853209 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 10
    10-853210 SCREW, (M6 x 45)
    SCREW, (M6 x 45)
  • 11
    12-853211 WASHER
    WASHER
  • 12
    853213002 SEAL
    SEAL
  • 13
    853213002 THERMOSTAT
    THERMOSTAT
  • 14
    27-853214 GASKET
    GASKET
  • 15
    806490T SENDER ASSEMBLY, Water Temperature, Single Station
    SENDER ASSEMBLY, Water Temperature, Single Station
  • 15
    49734 SENDER, Temperature, Dual Station
    SENDER, Temperature, Dual Station
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 17
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 18
    853203 SENDER, Temperature
    SENDER, Temperature
  • 19
    22-853218 INLET, Water Pump
    INLET, Water Pump
  • 20
    10-853219 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 21
    25-33465 O-RING
    O-RING
  • 22
    853221 PULLEY, Water Pump
    PULLEY, Water Pump
  • 23
    10-853466 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 24
    54-815504228 CLAMP
    CLAMP
  • 25
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 26
    54-853223 CLAMP
    CLAMP
