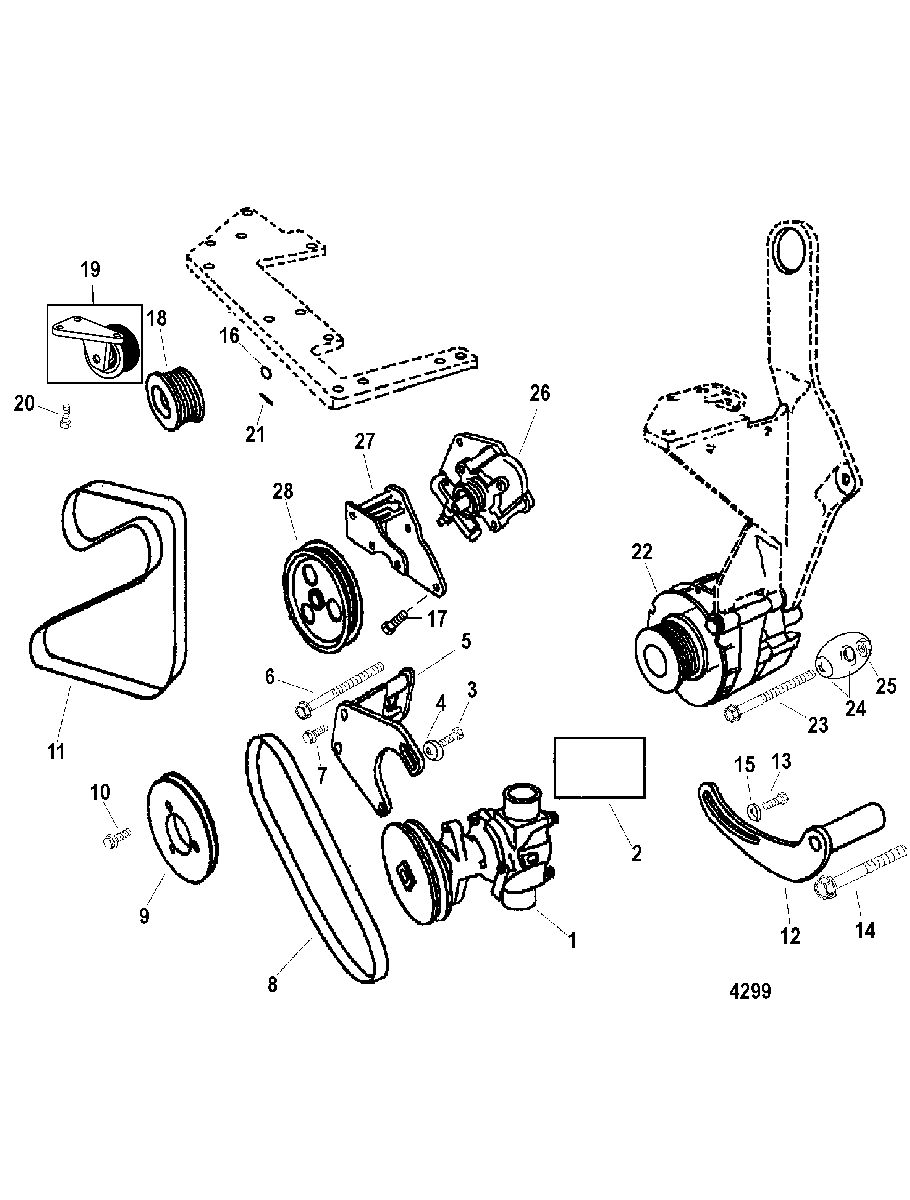

Alternator And Seawater Pump для Mercruiser - D7.3L D-TRONIC 1998 0K095775 & Up

  • №
    Артикул
    Название
  • 1
    805835 PUMP ASSEMBLY, Seawater
    PUMP ASSEMBLY, Seawater
  • -
    47-853126 IMPELLER
    IMPELLER
  • 2
    808145T REPAIR KIT, Seawater Pump
    REPAIR KIT, Seawater Pump
  • 3
    10-30206 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 4
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 5
    862985T BRACKET
    BRACKET
  • 6
    10-853155 SCREW, (M10 x 140)
    SCREW, (M10 x 140)
  • 6
    10-853238 SCREW, (M12 x 140)
    SCREW, (M12 x 140)
  • 7
    10-853156 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 8
    57-806851Q BELT, Seawater Pump
    BELT, Seawater Pump
  • 9
    853241 PULLEY, Mounts To Front Of Crankshaft
    PULLEY, Mounts To Front Of Crankshaft
  • 10
    10-853402 SCREW, (M10 x 50)
    SCREW, (M10 x 50)
  • 11
    57-853243 BELT, Seawater
    BELT, Seawater
  • 12
    862982 STRAP, Alternator Adjusting
    STRAP, Alternator Adjusting
  • 13
    10-853078 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 14
    10-853421 SCREW, (M12 x 90)
    SCREW, (M12 x 90)
  • 15
    12-4002317 WASHER
    WASHER
  • 16
    53-853251 RING, Retaining
    RING, Retaining
  • 17
    853253T3 SHAFT
    SHAFT
  • 18
    853253T4 IDLER
    IDLER
  • 19
    853253T3 SUPPORT, Belt Idler
    SUPPORT, Belt Idler
  • 20
    10-853466 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 21
    17-853256 PIN
    PIN
  • 22
    805884T1 ALTERNATOR, 65 Ampere
    (See "Alternator" For Breakdown)
    ALTERNATOR, 65 Ampere
    (See "Alternator" For Breakdown)
  • 23
    10-805769 SCREW, (.375-16 x 5.00)
    SCREW, (.375-16 x 5.00)
  • 24
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 25
    11-805781 NUT, (.375-16)
    NUT, (.375-16)
  • 26
    853399 PUMP, Power Steering
    PUMP, Power Steering
  • 27
    862916T BRACKET
    BRACKET
  • 28
    853059 PULLEY, Power Steering
    PULLEY, Power Steering
