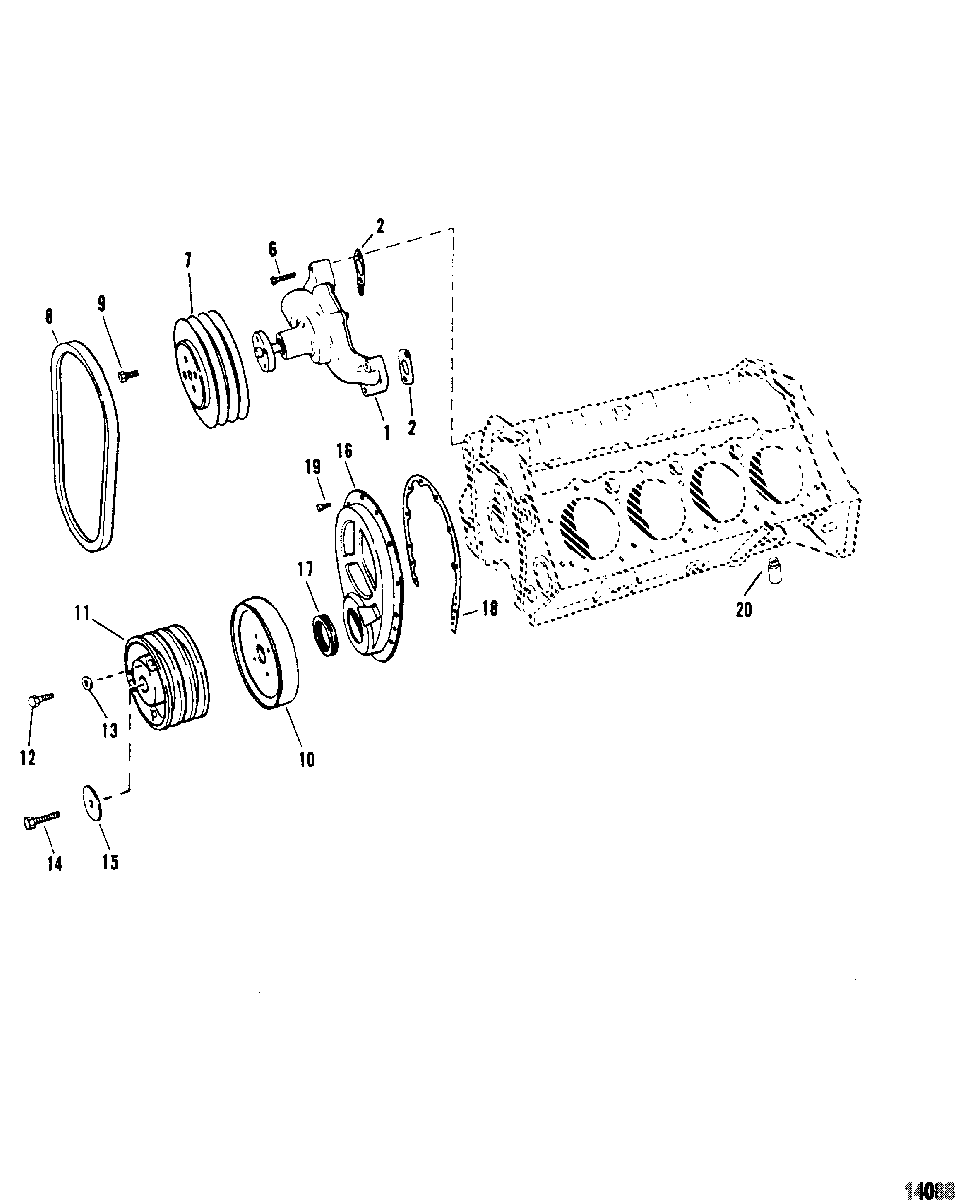

Water Pump And Front Cover для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

  • №
    Артикул
    Название
  • 1
    46-8M0113735 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 6
    10-805611 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 7
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 8
    57-48122Q BELT, (48 Inches)
    BELT, (48 Inches)
  • 9
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 10
    8M0082186 HARMONIC BALANCER
    HARMONIC BALANCER
  • 11
    90081T PULLEY
    PULLEY
  • 12
    10-75334 SCREW, (.375-24 x 3.00)
    SCREW, (.375-24 x 3.00)
  • 13
    12-34714 WASHER
    WASHER
  • 14
    10-845627 SCREW, (.500-20 x 2.500)
    SCREW, (.500-20 x 2.500)
  • 15
    12-49103 WASHER
    WASHER
  • 16
    811570 COVER ASSEMBLY
    COVER ASSEMBLY
  • 17
    26-8219471 SEAL
    SEAL
  • 18
    27-811572 GASKET
    GASKET
  • 19
    10-8M0040582 SCREW, (.250-20 x .563)
    SCREW, (.250-20 x .563)
  • 20
    807211 VALVE, Relief (30 PSI)
    VALVE, Relief (30 PSI)
