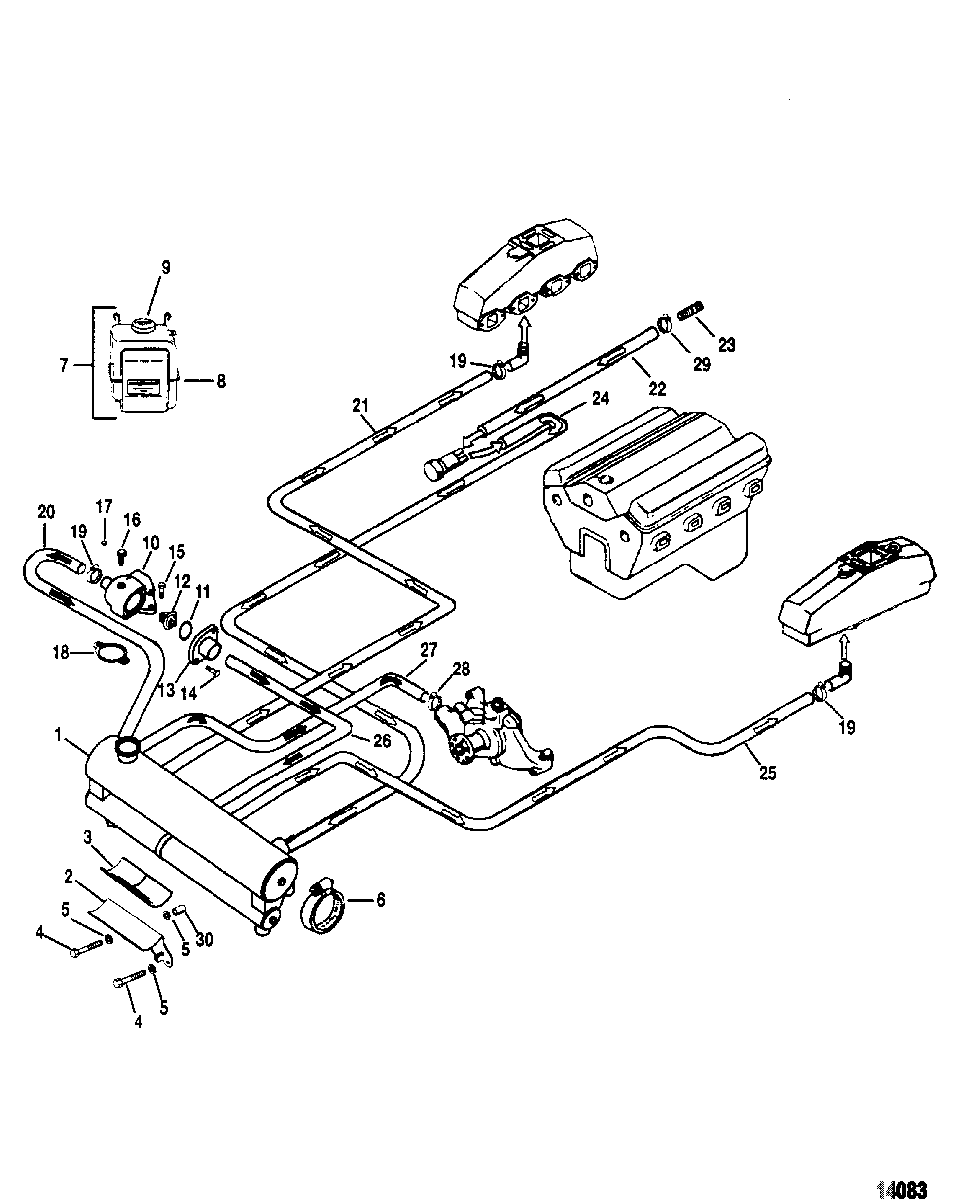

Closed Cooling System для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

  • №
    Артикул
    Название
  • 1
    807637A1 HEAT EXCHANGER ASSEMBLY
    HEAT EXCHANGER ASSEMBLY
  • 2
    807077A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 3
    18431 PAD
    PAD
  • 4
    10-91903 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 5
    12-31263 WASHER
    WASHER
  • 6
    54-815504388 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 7
    71587A10 RECOVERY KIT, Coolant
    Coolant Recovery System Is Sold As A Complete Kit Only Part
    RECOVERY KIT, Coolant
    Coolant Recovery System Is Sold As A Complete Kit Only Part
  • -
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 8
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 9
    72058 CAP
    CAP
  • 10
    861188A1 THERMOSTAT HOUSING ASSEMBLY
    THERMOSTAT HOUSING ASSEMBLY
  • 11
    25-8071341 SEAL
    SEAL
  • 12
    99155T1 THERMOSTAT KIT
    THERMOSTAT KIT
  • 13
    807075A1 COVER
    COVER
  • 14
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 15
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 16
    22-818390 DRAIN COCK
    DRAIN COCK
  • 17
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 18
    27-530451 GASKET
    GASKET
  • 19
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 20
    32-807271 HOSE, Thermostat By-Pass
    HOSE, Thermostat By-Pass
  • 21
    32-861306 HOSE, Heat Exchanger To Exhaust Manifold, Reservoir To Manifold (Starboard)
    HOSE, Heat Exchanger To Exhaust Manifold, Reservoir To Manifold (Starboard)
  • 22
    32-897145 HOSE, Seawater Pump To T-Fitting, Sea Pump Inlet
    HOSE, Seawater Pump To T-Fitting, Sea Pump Inlet
  • 23
    805135 COUPLER, Hose
    COUPLER, Hose
  • 24
    32-807136 HOSE, Water Pump To Reservoir
    HOSE, Water Pump To Reservoir
  • 25
    32-807141 HOSE, Reservoir To Manifold (Port)
    HOSE, Reservoir To Manifold (Port)
  • 26
    32-807137 HOSE, Thermostat Housing To Heat Exchanger
    HOSE, Thermostat Housing To Heat Exchanger
  • 27
    32-805138 HOSE, Water Pump To Heat Exchanger, Water Pump To Reservoir
    HOSE, Water Pump To Heat Exchanger, Water Pump To Reservoir
  • 28
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 29
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 30
    23-74756 SPACER
    SPACER
