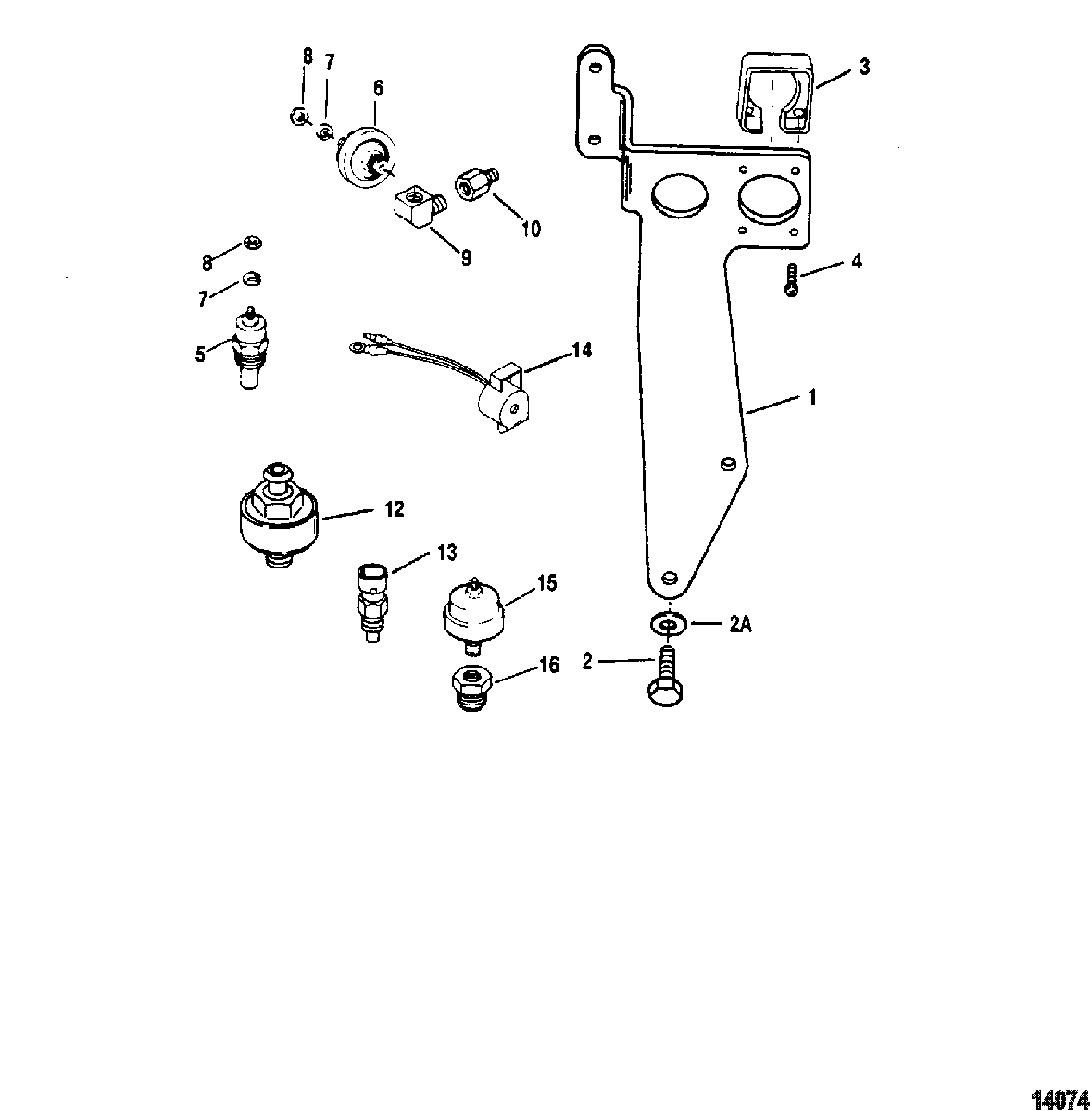

Senders And Harness Bracket для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

  • №
    Артикул
    Название
  • 1
    805441T1 BRACKET/LIFTING EYE, Rear
    BRACKET/LIFTING EYE, Rear
  • 2
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 2A
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 3
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 4
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 5
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 5
    49734 SENDER ASSEMBLY, Water Temperature (Dual)
    SENDER ASSEMBLY, Water Temperature (Dual)
  • 6
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 6
    37293T SENDER ASSEMBLY, Oil Pressure (Dual)
    SENDER ASSEMBLY, Oil Pressure (Dual)
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    22-8M0123050 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 10
    22-805059 FITTING
    FITTING
  • 12
    8M0077616 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 13
    805218T SENSOR
    SENSOR
  • 14
    816492A6 ALARM KIT
    ALARM KIT
  • 15
    87-805605A1 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 16
    22-64013 FITTING, (.375 Male To .125 Female)
    FITTING, (.375 Male To .125 Female)
