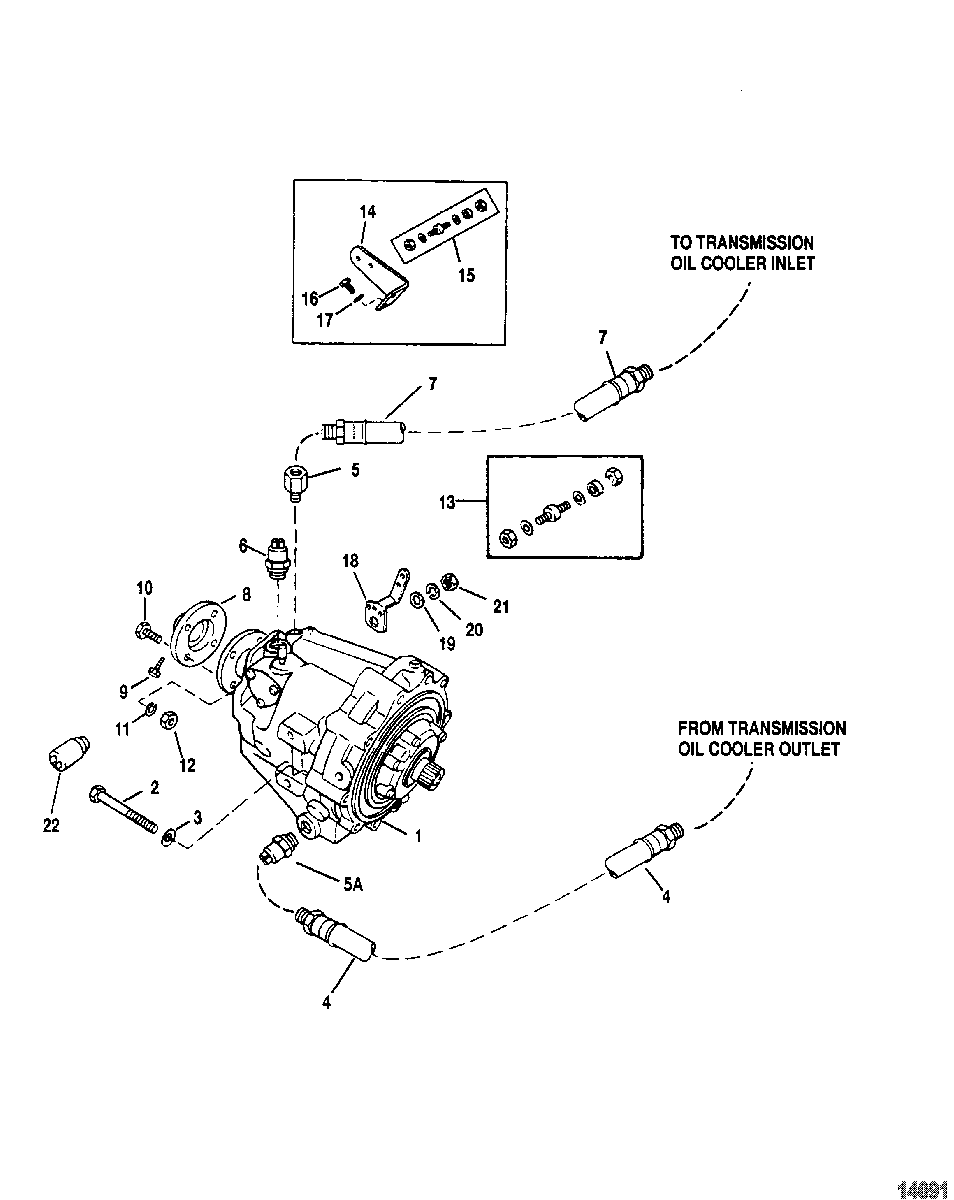

Transmission And Related Parts(Borg Warner 72) для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

  • №
    Артикул
    Название
  • 1
    47810A19 TRANSMISSION (1.1:1) Direct Drive
    TRANSMISSION (1.1:1) Direct Drive
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    32-807291 HOSE, Oil
    HOSE, Oil
  • 5
    22-93190 FITTING, (.375 NPTF x .50 Inverted Flare)
    FITTING, (.375 NPTF x .50 Inverted Flare)
  • 5A
    22-807272 FITTING, (.50) Inch Flare To (.375) Inch NPT
    FITTING, (.50) Inch Flare To (.375) Inch NPT
  • 6
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 7
    32-807290 HOSE, Oil
    HOSE, Oil
  • 8
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 8
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 8
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 8
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 8
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 8
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 8
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 9
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 9
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 10
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 13
    16-97477A3 STUD KIT
    STUD KIT
  • 14
    18351A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 15
    16-97477A3 STUD KIT
    STUD KIT
  • 16
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 18
    43325 LEVER
    LEVER
  • 19
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 20
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 21
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 22
    47613 SWITCH
    SWITCH
