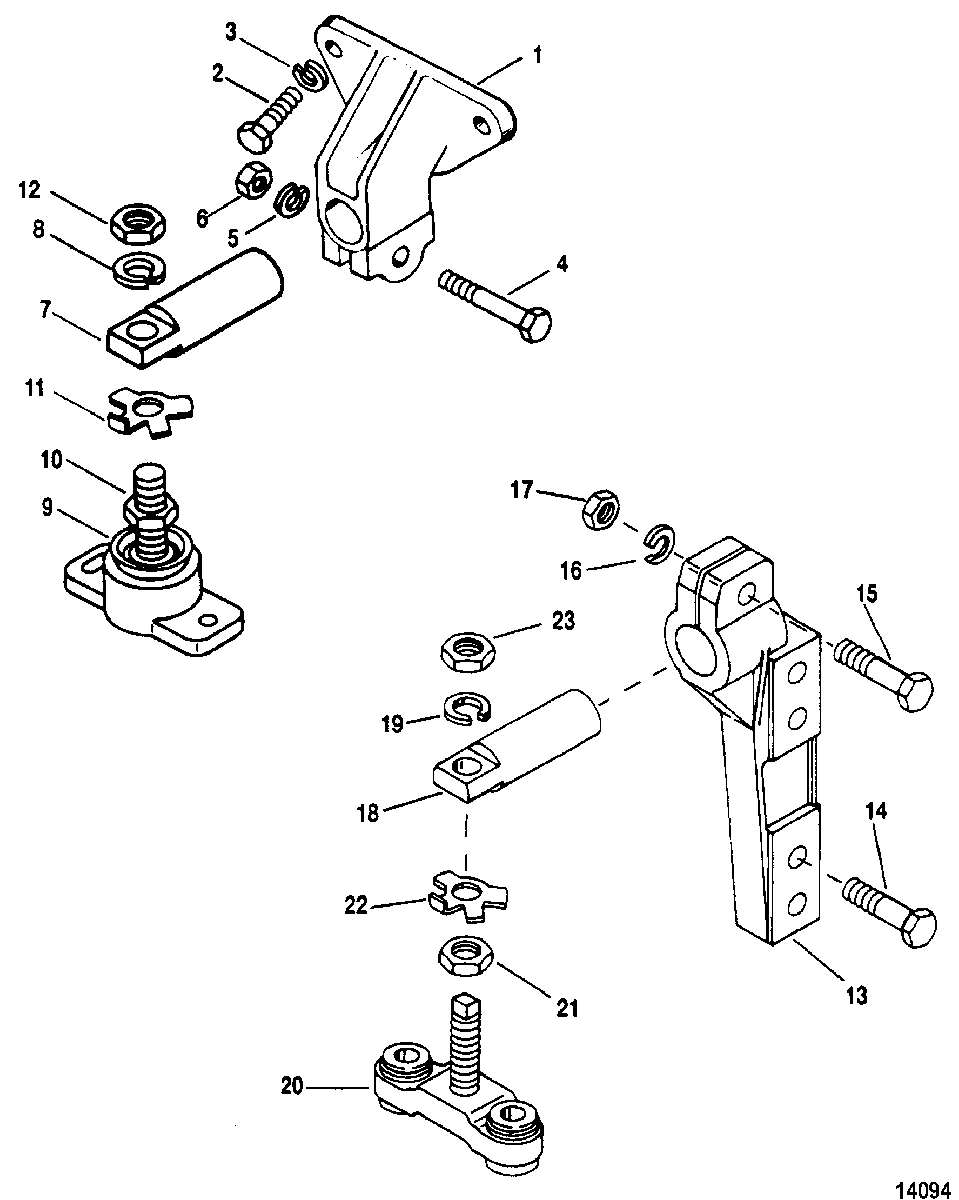

Transmission And Engine Mounting(Borg Warner 5000) для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

  • №
    Артикул
    Название
  • 1
    66418T BRACKET, Front
    BRACKET, Front
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 3
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 4
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 6
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 7
    66166A4 TRUNNION
    TRUNNION
  • 8
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 9
    66284A2 BASE ASSEMBLY, Engine End (Front)
    BASE ASSEMBLY, Engine End (Front)
  • 10
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 11
    14-66658 TAB WASHER
    TAB WASHER
  • 12
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 13
    805496T BRACKET, Port
    BRACKET, Port
  • 13
    805496T1 BRACKET, Starboard
    BRACKET, Starboard
  • 14
    10-4009760 SCREW, (M12 x 60)
    SCREW, (M12 x 60)
  • 15
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 16
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 17
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 18
    66166A4 TRUNNION
    TRUNNION
  • 19
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 20
    816326A2 BASE ASSEMBLY, Rear
    BASE ASSEMBLY, Rear
  • 21
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 22
    14-66658 TAB WASHER
    TAB WASHER
  • 23
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
