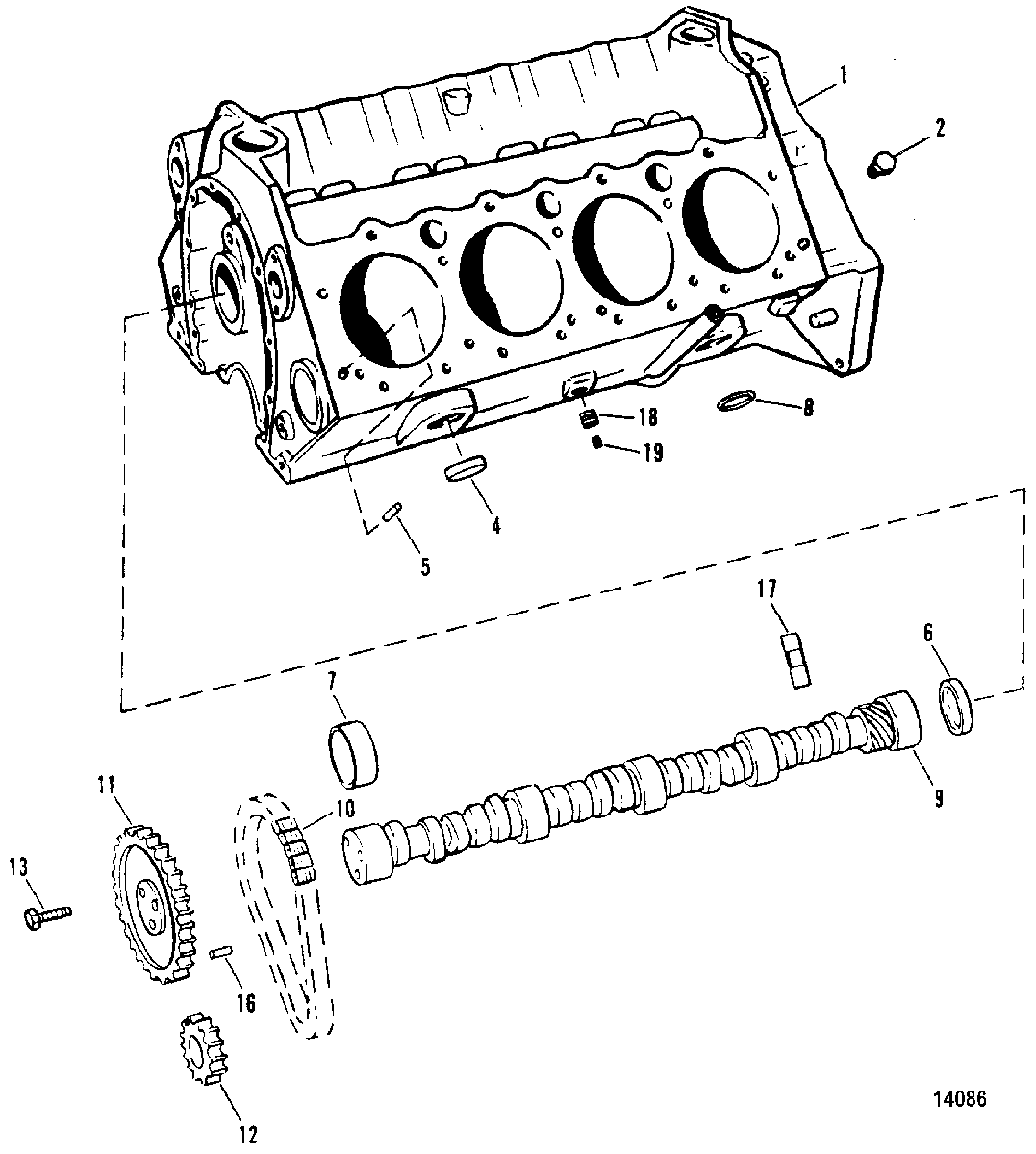

Cylinder Block And Camshaft для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

  • №
    Артикул
    Название
  • 1
    842-801872 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 2
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 4
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 5
    17-52190 PIN
    PIN
  • 6
    19-94140 EXPANSION PLUG
    EXPANSION PLUG
  • 7
    23-85684 BEARING SET
    BEARING SET
  • 8
    25-69756 O-RING, (.500 Inch)
    O-RING, (.500 Inch)
  • 9
    431-4734 CAMSHAFT
    CAMSHAFT
  • 10
    845796T CHAIN
    CHAIN
  • 11
    43-811578 SPROCKET
    SPROCKET
  • 12
    43-845794T SPROCKET
    SPROCKET
  • 13
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 16
    17-843378 PIN, Dowel (1/4 n. Diameter) (.250 Inch Diameter)
    PIN, Dowel (1/4 n. Diameter) (.250 Inch Diameter)
  • 17
    811584 LIFTER
    LIFTER
  • 18
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 19
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • -
    807739R5 LONG BLOCK ENGINE, See Note
    LONG BLOCK ENGINE, See Note
  • -
    27-805396A95 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    92-809826 SEALER, Red RTV
    SEALER, Red RTV
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
