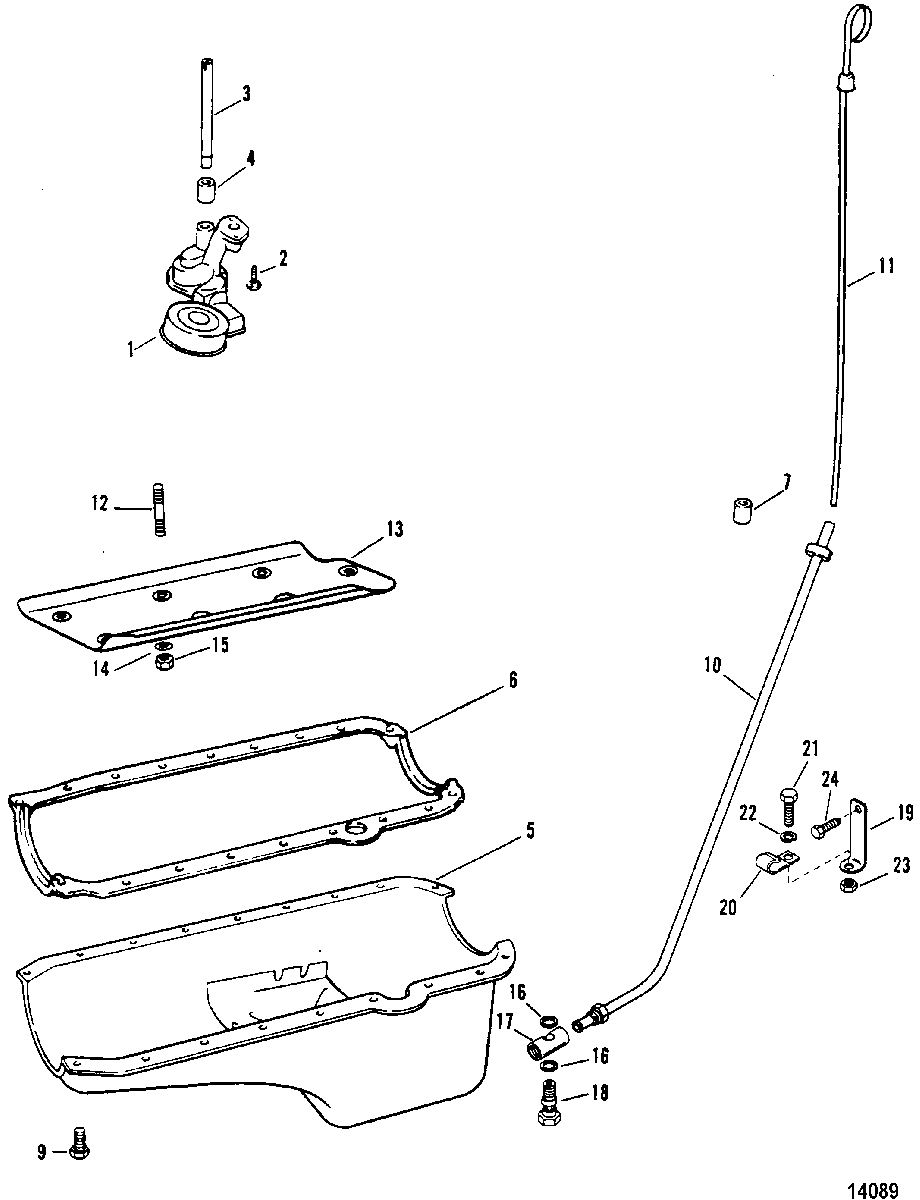

Oil Pan And Oil Pump для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

  • №
    Артикул
    Название
  • 1
    827643 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    10-813071 SCREW
    SCREW
  • 3
    8M0046892 SHAFT AND RETAINER
    SHAFT AND RETAINER
  • 4
    23-36183 RETAINER
    RETAINER
  • 5
    845668T PAN ASSEMBLY
    PAN ASSEMBLY
  • 6
    27-845628 GASKET
    GASKET
  • 7
    19-818841 PLUG, Oil Pan Dipstick Hole
    PLUG, Oil Pan Dipstick Hole
  • 9
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 10
    805162T1 TUBE, Dipstick, Port
    TUBE, Dipstick, Port
  • 10
    805162T TUBE, Dipstick, Starboard
    TUBE, Dipstick, Starboard
  • 11
    861942T5 DIPSTICK, Hurth 630 / Borg Warner 5000
    DIPSTICK, Hurth 630 / Borg Warner 5000
  • 11
    861942T4 DIPSTICK, Borg Warner 72 Series
    DIPSTICK, Borg Warner 72 Series
  • 12
    16-843375 STUD, (.375-16/.500-12 x 5.500)
    STUD, (.375-16/.500-12 x 5.500)
  • 13
    843945T BAFFLE
    BAFFLE
  • 14
    12-49112 WASHER
    WASHER
  • 15
    11-37500 NUT
    NUT
  • 16
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 17
    821504 FITTING, Banjo
    FITTING, Banjo
  • 18
    10-805498 BOLT
    BOLT
  • 19
    48134 BRACKET
    BRACKET
  • 20
    54-92338 CLIP
    CLIP
  • 21
    10-54630 SCREW, (.312-24 x .625)
    SCREW, (.312-24 x .625)
  • 22
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 23
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 24
    10-98260 SCREW, (.375-16 x .620)
    SCREW, (.375-16 x .620)
