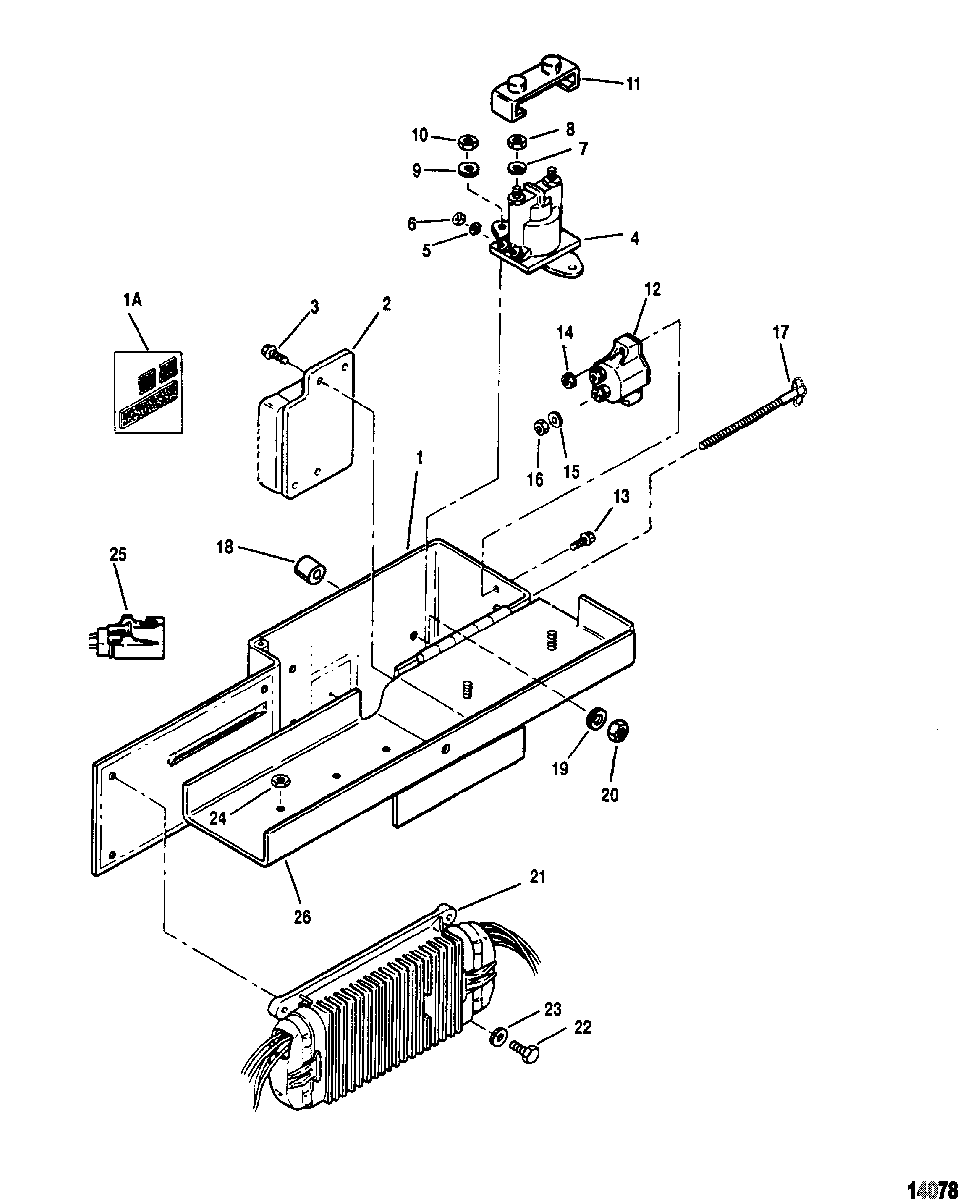

Electrical Box And Components для Mercruiser - 7.4L MIE MPI (LH) GEN. V GM 454 V-8 1995-1996 0F563052 THRU 0F820103

№

Артикул

Название
1

807323A5 BOX ASSEMBLY, Electrical Components - Use With Locking Clip

BOX ASSEMBLY, Electrical Components - Use With Locking Clip
1A

806762A1 VELCRO KIT

VELCRO KIT
2

805443 MODULE ASSEMBLY

MODULE ASSEMBLY
3

10-73286 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel
4

89-96054T SOLENOID ASSEMBLY, Starter

SOLENOID ASSEMBLY, Starter
5

13-26995 LOCKWASHER, (#8) Stainless Steel

LOCKWASHER, (#8) Stainless Steel
6

11-26419 NUT, (#8-32) Brass

NUT, (#8-32) Brass
7

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel
8

11-94330 NUT, (.250-20) Brass

NUT, (.250-20) Brass
9

12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel

WASHER, (.2656 x .625 x .0625) Stainless Steel
10

11-64015 NUT, (.250-20)

NUT, (.250-20)
11

85-97861 INSULATOR

INSULATOR
12

88-11178A01 BREAKER, Circuit - 50 Ampere

BREAKER, Circuit - 50 Ampere
13

10-45862 SCREW, (#10-32 x .875)

SCREW, (#10-32 x .875)
14

11-61356 NUT, (#10-32) Reduced Hex

NUT, (#10-32) Reduced Hex
15

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel
16

11-68219 NUT, (#10-32) Stainless Steel

NUT, (#10-32) Stainless Steel
17

805615A2 THUMB SCREW ASSEMBLY

THUMB SCREW ASSEMBLY
18

23-92152T SPACER, (.27 x .75 x .38)

SPACER, (.27 x .75 x .38)
19

12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel

WASHER, (.2656 x .625 x .0625) Stainless Steel
20

11-64015 NUT, (.250-20)

NUT, (.250-20)
21

807210T2 MODULE ASSEMBLY, Electronic Control

MODULE ASSEMBLY, Electronic Control
22

10-54615 SCREW, (.250-20 x .625)

SCREW, (.250-20 x .625)
23

12-20533 WASHER

WASHER
24

11-805562 NUT, (#10-24)

NUT, (#10-24)
25

88-804642 FUSE, 15 Ampere

FUSE, 15 Ampere
25

862647 FUSE, 10 Ampere

FUSE, 10 Ampere
26

805439T3 LID, Electrical Box

LID, Electrical Box
