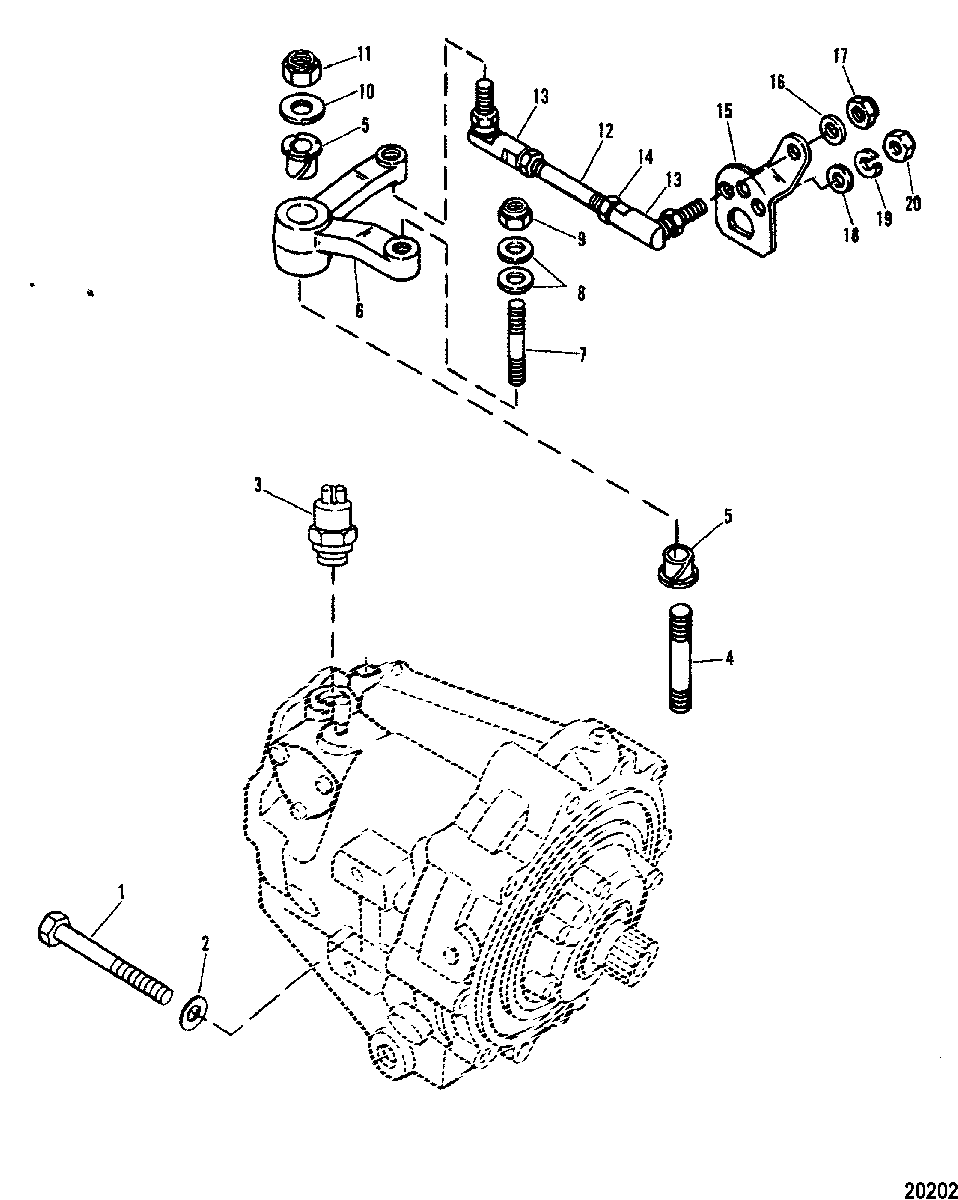

Shift Linkage для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

№

Артикул

Название
1

10-60179 SCREW, (.437-14 x 3.500), TRANSMISSION TO ENGINE

SCREW, (.437-14 x 3.500), TRANSMISSION TO ENGINE
2

13-32993 LOCKWASHER, (.437), TRANSMISSION SCREW

LOCKWASHER, (.437), TRANSMISSION SCREW
3

87-88031 SWITCH ASSEMBLY, TEMPERATURE

SWITCH ASSEMBLY, TEMPERATURE
4

16-8M0034438 STUD, (.375-24/.375-16 x 2.250), SHIFT CRANK TO TAILSTOCK

STUD, (.375-24/.375-16 x 2.250), SHIFT CRANK TO TAILSTOCK
5

23-26954 BUSHING, SHIFT CRANK STUD

BUSHING, SHIFT CRANK STUD
6

98301A3 SHIFT CRANK ASSEMBLY

SHIFT CRANK ASSEMBLY
7

16-728091 STUD, (.250-20/.250-28 x 1.620), SHIFT CRANK

STUD, (.250-20/.250-28 x 1.620), SHIFT CRANK
8

12-69056 WASHER, (.255 x .620 x .030) Stainless Steel, SHIFT CRANK STUD

WASHER, (.255 x .620 x .030) Stainless Steel, SHIFT CRANK STUD
9

11-35888 NUT, (.250-28) Stainless Steel, SHIFT CRANK STUD

NUT, (.250-28) Stainless Steel, SHIFT CRANK STUD
10

12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, SHIFT CRANK STUD

WASHER, (.406 x .734 x .063) Stainless Steel, SHIFT CRANK STUD
11

11-862903 NUT, (.375-24), SHIFT CRANK STUD

NUT, (.375-24), SHIFT CRANK STUD
12

98299A2 SHIFT ROD ASSEMBLY

SHIFT ROD ASSEMBLY
13

73393 BALL JOINT

BALL JOINT
14

11-25168 NUT, (.250-28), SHIFT ROD

NUT, (.250-28), SHIFT ROD
15

43325 LEVER, SHIFT - TRANSMISSION

LEVER, SHIFT - TRANSMISSION
16

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT ROD

WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT ROD
17

11-35888 NUT, (.250-28) Stainless Steel, SHIFT ROD

NUT, (.250-28) Stainless Steel, SHIFT ROD
18

12-20722 WASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSION

WASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSION
19

13-26993 LOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSION

LOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSION
20

11-22053 NUT, (.312-24), SHIFT LEVER TO TRANSMISSION

NUT, (.312-24), SHIFT LEVER TO TRANSMISSION
