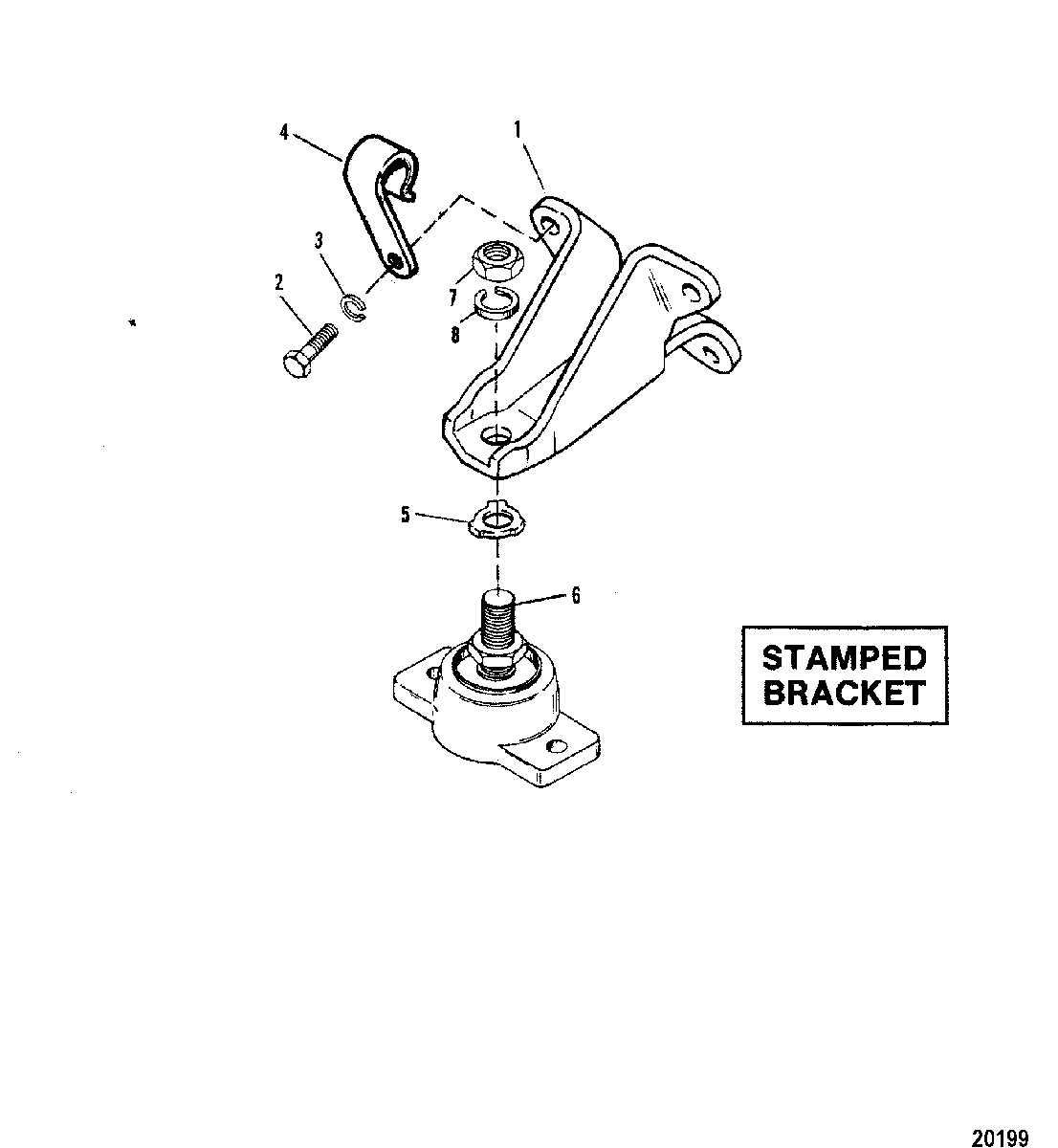

Engine Mounting(Stamped Bracket) для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET ASSEMBLY, MOUNTING - ENGINE (FRONT)
    BRACKET ASSEMBLY, MOUNTING - ENGINE (FRONT)
  • 2
    10-34353 SCREW, (.375-16 x 1.00), MOUNTING BRACKET TO ENGINE
    SCREW, (.375-16 x 1.00), MOUNTING BRACKET TO ENGINE
  • 3
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 3
    12-34714 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 4
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 5
    14-12657 TAB WASHER
    TAB WASHER
  • 6
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 7
    11-20739 NUT, (.750-16), JAM - ENGINE MOUNT BASE
    NUT, (.750-16), JAM - ENGINE MOUNT BASE
  • 8
    13-68102 LOCKWASHER, (.750), MOUNTING BRACKET
    LOCKWASHER, (.750), MOUNTING BRACKET
