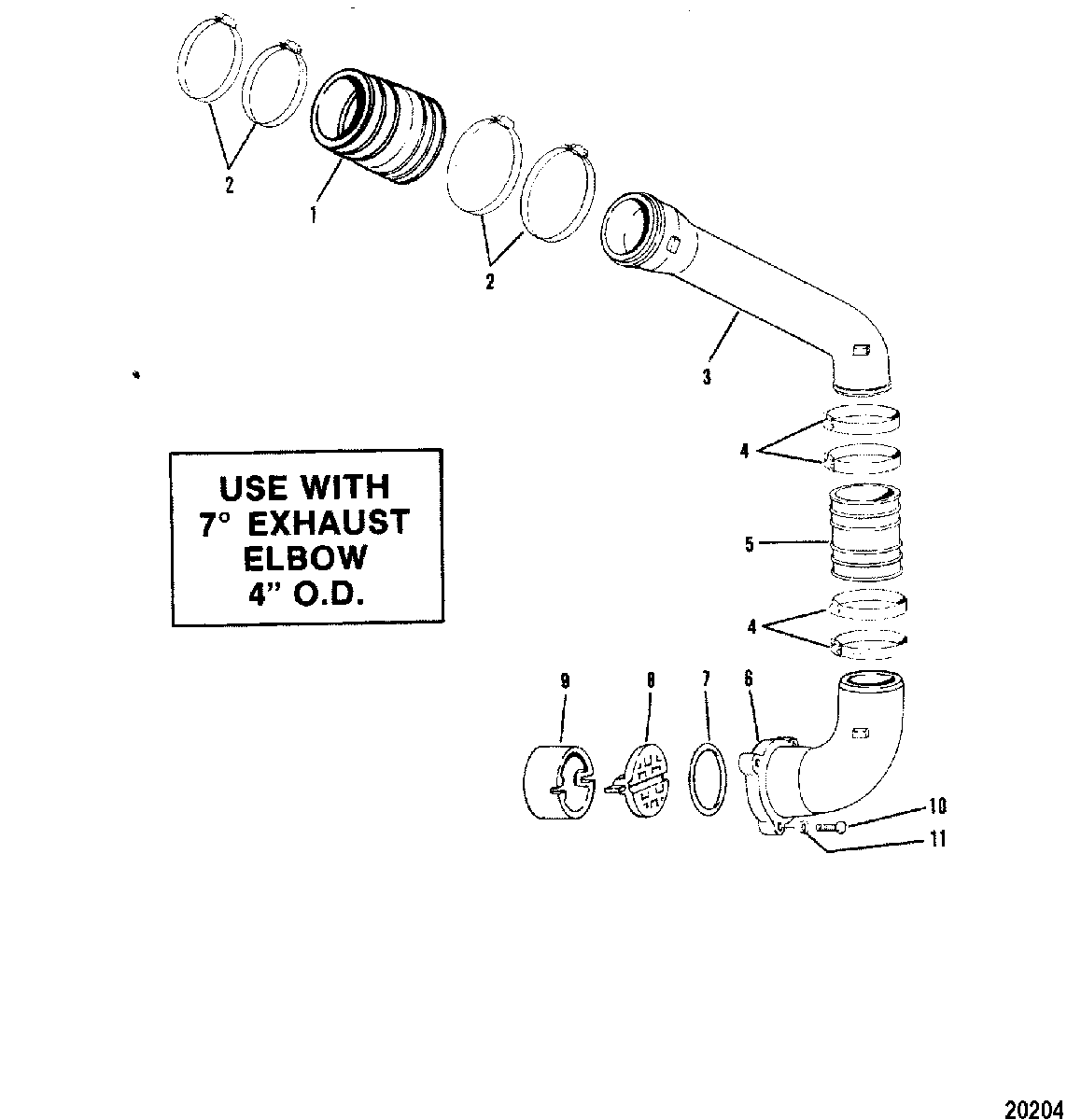

Exhaust System(Use With 7 Degree Exhaust Elbow) для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

  • №
    Артикул
    Название
  • 1
    32-44348001 TUBE, EXHAUST
    TUBE, EXHAUST
  • 2
    54-815504372 CLAMP, EXHAUST BELLOWS
    CLAMP, EXHAUST BELLOWS
  • 3
    44391A1 PIPE ASSEMBLY, Exhaust
    PIPE ASSEMBLY, Exhaust
  • 4
    54-815504456 CLAMP, EXHAUST TUBE
    CLAMP, EXHAUST TUBE
  • 5
    32-90949T TUBE, Exhaust
    TUBE, Exhaust
  • 6
    98311A2 ELBOW ASSEMBLY, Exhaust, PORT
    ELBOW ASSEMBLY, Exhaust, PORT
  • 6
    98312A2 ELBOW ASSEMBLY, Exhaust, STARBOARD
    ELBOW ASSEMBLY, Exhaust, STARBOARD
  • 7
    25-35029 O-RING, 78.97 X 3.53 MM
    O-RING, 78.97 X 3.53 MM
  • 8
    60930 SHUTTER, Water
    SHUTTER, Water
  • 9
    63151T RETAINER, WATER SHUTTER
    RETAINER, WATER SHUTTER
  • 10
    10-8M0113174 SCREW, (.375-16 x 1.25), EXHAUST ELBOW
    SCREW, (.375-16 x 1.25), EXHAUST ELBOW
  • 11
    13-41471 LOCKWASHER, (.375), EXHAUST ELBOW SCREW
    LOCKWASHER, (.375), EXHAUST ELBOW SCREW
