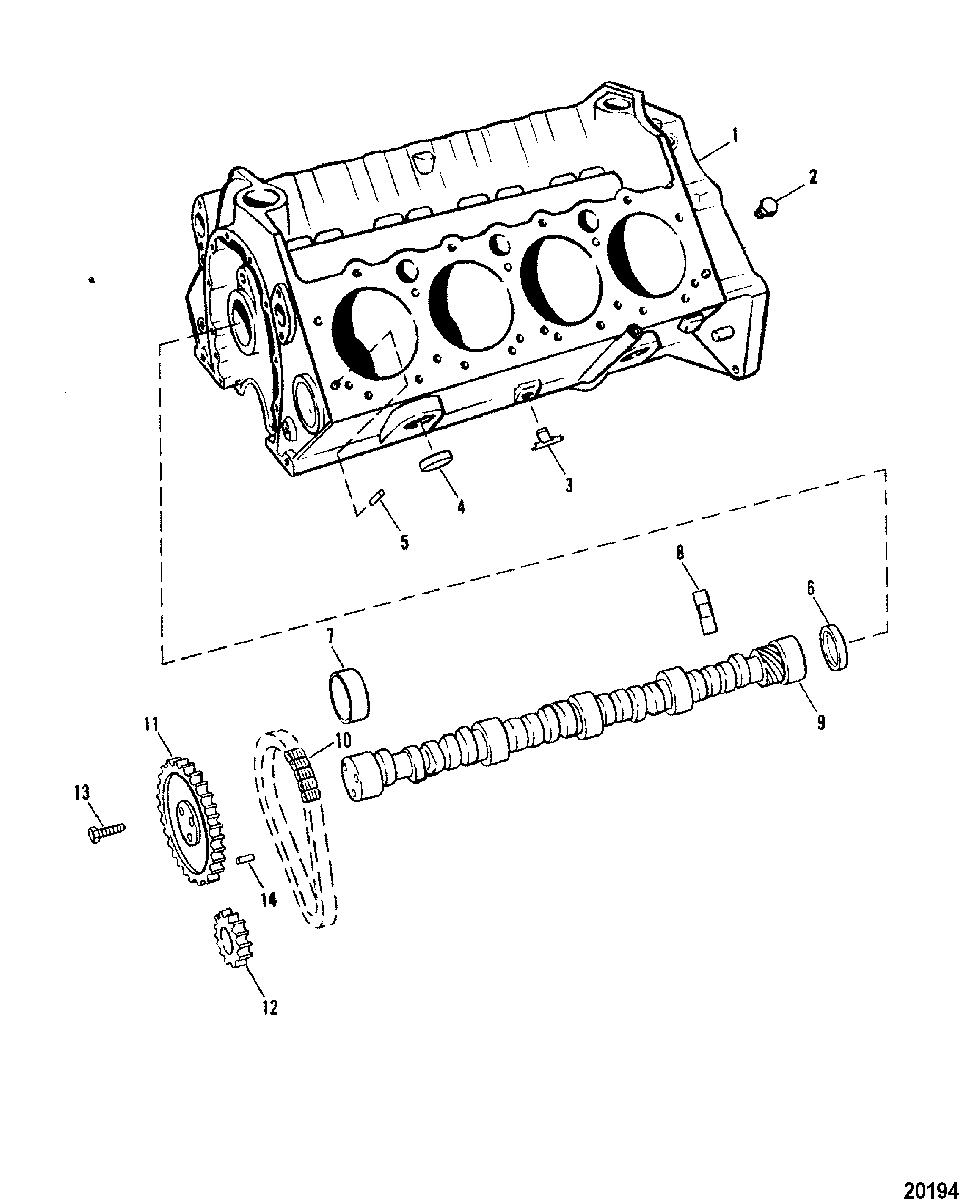

Cylinder Block and Camshaft для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

  • №
    Артикул
    Название
  • 1
    842-9639 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    22-32561 PLUG, (.250-18 x .41), CYLINDER BLOCK
    PLUG, (.250-18 x .41), CYLINDER BLOCK
  • 2
    22-12524 PLUG, (.375), CYLINDER BLOCK
    PLUG, (.375), CYLINDER BLOCK
  • 3
    22-16951Q1 FITTING, CYLINDER BLOCK
    FITTING, CYLINDER BLOCK
  • 4
    22-69300 PLUG, EXPANSION - CYLINDER BLOCK (1-3/4" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1-3/4" DIA.)
  • 5
    17-52190 PIN, DOWEL - BLOCK TO HEAD
    PIN, DOWEL - BLOCK TO HEAD
  • 6
    19-94140 EXPANSION PLUG, CAMSHAFT BEARING HOLE
    EXPANSION PLUG, CAMSHAFT BEARING HOLE
  • 7
    23-85684 BEARING SET, CAMSHAFT
    BEARING SET, CAMSHAFT
  • 8
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 9
    431-4734 CAMSHAFT
    CAMSHAFT
  • 10
    75588T CHAIN, CAMSHAFT TIMING
    CHAIN, CAMSHAFT TIMING
  • 11
    43-86481 SPROCKET, CAMSHAFT
    SPROCKET, CAMSHAFT
  • 12
    43-86482 SPROCKET, CRANKSHAFT TIMING
    SPROCKET, CRANKSHAFT TIMING
  • 13
    10-34505 SCREW, (.312-18 x .875), CAMSHAFT TIMING SPROCKET
    SCREW, (.312-18 x .875), CAMSHAFT TIMING SPROCKET
  • 14
    17-843378 PIN, Dowel (1/4 In. Diameter), CAMSHAFT SPROCKET (1/4DIA.)
    PIN, Dowel (1/4 In. Diameter), CAMSHAFT SPROCKET (1/4DIA.)
  • -
    18706R5 SHORT BLOCK
    SHORT BLOCK
  • -
    92-809826 SEALER, Red RTV
    SEALER, Red RTV
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
