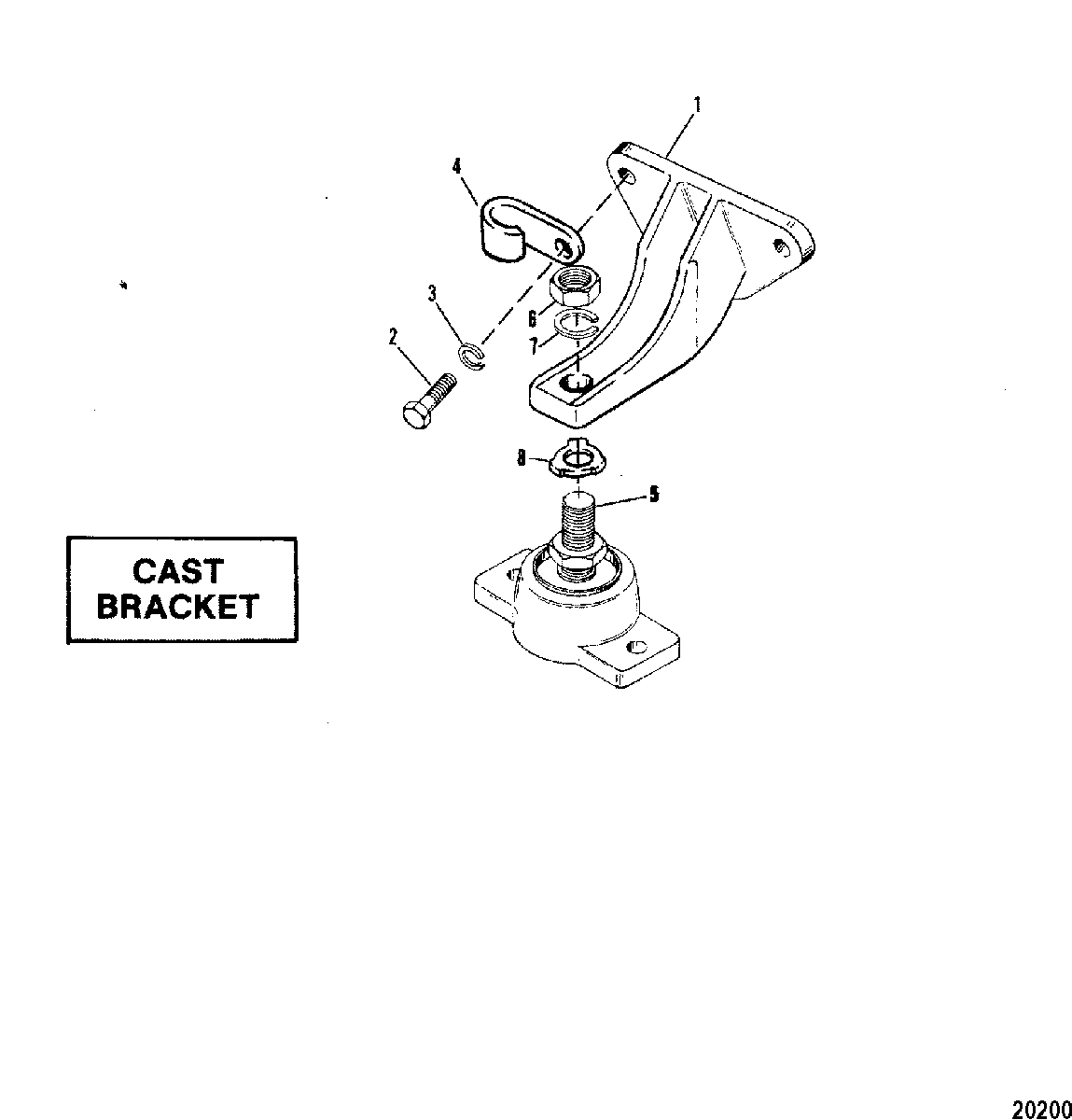

Engine Mounting(Cast Bracket) для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE (FRONT)
    BRACKET, MOUNTING - ENGINE (FRONT)
  • 2
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    PORT
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    PORT
  • 2
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    STARBOARD
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    STARBOARD
  • 3
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    PORT
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    PORT
  • 3
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    STARBOARD
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    STARBOARD
  • 4
    54-78945 J CLAMP, Harness Support
    PORT
    J CLAMP, Harness Support
    PORT
  • 5
    66284A2 BASE ASSEMBLY, ENGINE MOUNT
    BASE ASSEMBLY, ENGINE MOUNT
  • 6
    11-20739 NUT, (.750-16), JAM - ENGINE MOUNT BASE
    NUT, (.750-16), JAM - ENGINE MOUNT BASE
  • 7
    13-68102 LOCKWASHER, (.750), MOUNTING BRACKET
    LOCKWASHER, (.750), MOUNTING BRACKET
  • 8
    14-12657 TAB WASHER
    TAB WASHER
