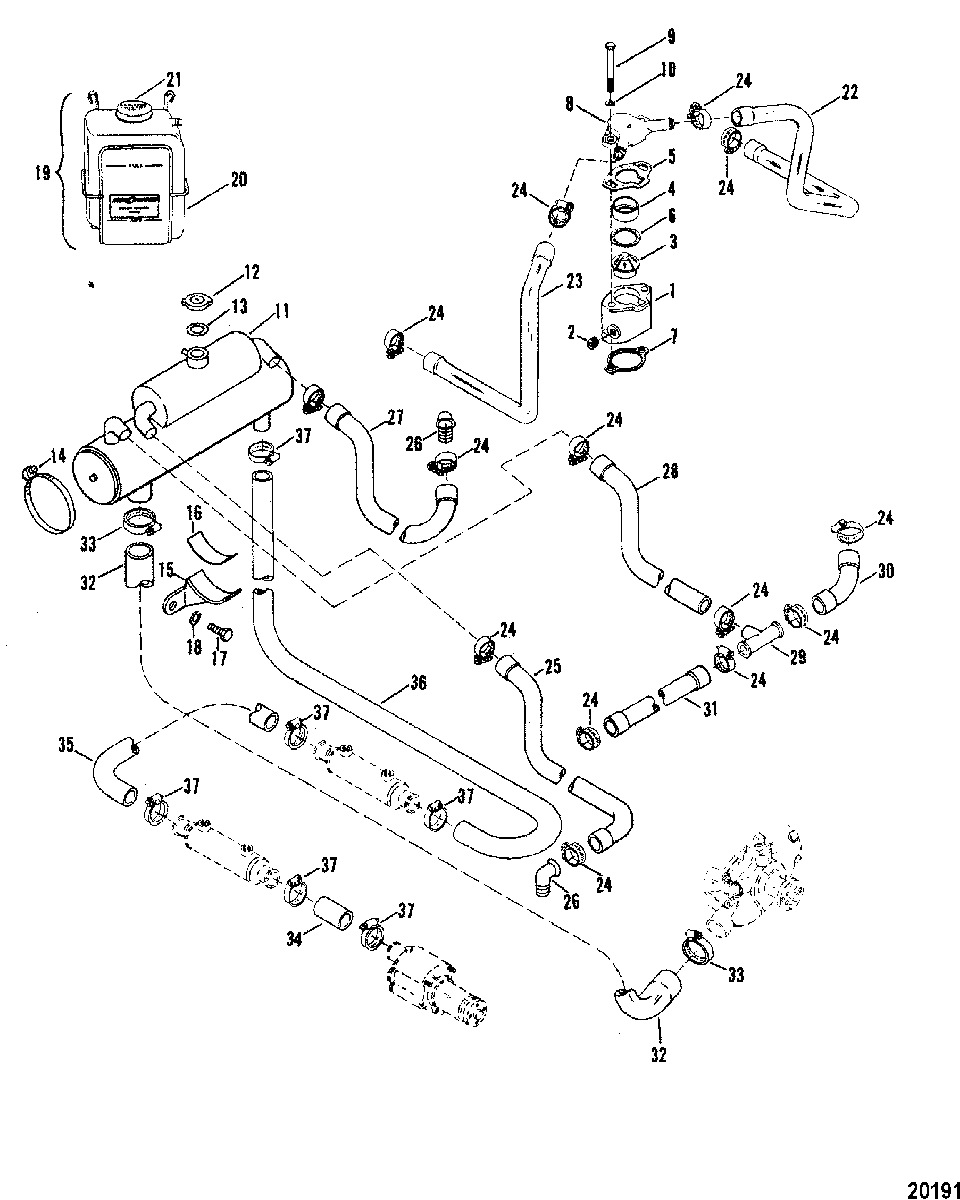

Closed Cooling System для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

  • №
    Артикул
    Название
  • 1
    55131A5 HOUSING, Thermostat
    HOUSING, Thermostat
  • 2
    22-328022 PLUG, Pipe (.125-27), THERMOSTAT HOUSING
    PLUG, Pipe (.125-27), THERMOSTAT HOUSING
  • 3
    8M0089715 THERMOSTAT, (140 Degrees) (143)
    THERMOSTAT, (140 Degrees) (143)
  • 4
    23-47508T SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 5
    27-488181 GASKET, THERMOSTAT HOUSING - UPPER
    GASKET, THERMOSTAT HOUSING - UPPER
  • 6
    27-47510 GASKET, THERMOSTAT HOUSING - MIDDLE
    GASKET, THERMOSTAT HOUSING - MIDDLE
  • 7
    27-530451 GASKET, THERMOSTAT HOUSING - LOWER
    GASKET, THERMOSTAT HOUSING - LOWER
  • 8
    8M0061068 COVER, THERMOSTAT HOUSING
    COVER, THERMOSTAT HOUSING
  • 9
    10-48115 SCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLD
    SCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLD
  • 10
    13-35048 LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
    LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
  • 11
    79607A3 RESERVOIR ASSEMBLY
    (4 Inch)
    RESERVOIR ASSEMBLY
    (4 Inch)
  • 11
    44446A2 RESERVOIR ASSEMBLY
    (5 Inch)
    RESERVOIR ASSEMBLY
    (5 Inch)
  • 12
    36-55143Q CAP, Pressure, PRESSURE - RESERVOIR
    CAP, Pressure, PRESSURE - RESERVOIR
  • 13
    27-71614 GASKET, PRESSURE CAP
    GASKET, PRESSURE CAP
  • -
    22-36382 FITTING, (.250-18 x .62) Brass
    (Use with 5 Inch Reservoir)
    FITTING, (.250-18 x .62) Brass
    (Use with 5 Inch Reservoir)
  • -
    22-328022 PLUG, Pipe (.125-27)
    (Use with 4 Inch Reservoir)
    PLUG, Pipe (.125-27)
    (Use with 4 Inch Reservoir)
  • -
    27-95688 GASKET, End Cover
    (Use with 5 Inch Reservoir)
    GASKET, End Cover
    (Use with 5 Inch Reservoir)
  • -
    27-65128 GASKET
    (Use with 4 Inch Reservoir)
    GASKET
    (Use with 4 Inch Reservoir)
  • -
    95687 COVER, END
    (Use with 5 Inch Reservoir)
    COVER, END
    (Use with 5 Inch Reservoir)
  • -
    66221 COVER
    (Use with 4 Inch Reservoir)
    COVER
    (Use with 4 Inch Reservoir)
  • -
    10-95689 SCREW, END COVER
    (Use with 5 Inch Reservoir)
    SCREW, END COVER
    (Use with 5 Inch Reservoir)
  • -
    10-66223 SCREW
    (Use with 4 Inch Reservoir)
    SCREW
    (Use with 4 Inch Reservoir)
  • -
    12-95690 WASHER, FIBER
    (Use with 5 Inch Reservoir)
    WASHER, FIBER
    (Use with 5 Inch Reservoir)
  • -
    12-75451 WASHER
    WASHER
  • 14
    54-815504372 CLAMP, RESERVOIR
    (Use with 4 Inch Reservoir)
    CLAMP, RESERVOIR
    (Use with 4 Inch Reservoir)
  • 14
    54-815504388 CLAMP, RESERVOIR
    (Use with 5 Inch Reservoir)
    CLAMP, RESERVOIR
    (Use with 5 Inch Reservoir)
  • 15
    92777A1 BRACKET, MOUNTING (PORT)
    (Use with 4 Inch Reservoir)
    BRACKET, MOUNTING (PORT)
    (Use with 4 Inch Reservoir)
  • 15
    92778A1 BRACKET, MOUNTING (STARBOARD)
    (Use with 4 Inch Reservoir)
    BRACKET, MOUNTING (STARBOARD)
    (Use with 4 Inch Reservoir)
  • 15
    44445A3 BRACKET ASSEMBLY, MOUNTING (PORT)
    (Use with 5 Inch Reservoir)
    BRACKET ASSEMBLY, MOUNTING (PORT)
    (Use with 5 Inch Reservoir)
  • 15
    44445A3 BRACKET, MOUNTING (STARBOARD)
    (Use with 5 Inch Reservoir)
    BRACKET, MOUNTING (STARBOARD)
    (Use with 5 Inch Reservoir)
  • 16
    772233 PAD, MOUNTING BRACKET
    (Use with 4 Inch Reservoir)
    PAD, MOUNTING BRACKET
    (Use with 4 Inch Reservoir)
  • 16
    772231 PAD, MOUNTING BRACKET
    (Use with 5 Inch Reservoir)
    PAD, MOUNTING BRACKET
    (Use with 5 Inch Reservoir)
  • 17
    10-34353 SCREW, (.375-16 x 1.00), MOUNTING BRACKET TO ENGINE
    3/8-16 THREAD
    SCREW, (.375-16 x 1.00), MOUNTING BRACKET TO ENGINE
    3/8-16 THREAD
  • 17
    10-47461 SCREW, (.437-14 x 1.00), MOUNTING BRACKET TO ENGINE
    7/16-14 THREAD
    SCREW, (.437-14 x 1.00), MOUNTING BRACKET TO ENGINE
    7/16-14 THREAD
  • 18
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    3/8-16 THREAD
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    3/8-16 THREAD
  • 18
    13-32993 LOCKWASHER, (.437), MOUNTING BRACKET SCREW
    7/16-14 THREAD
    LOCKWASHER, (.437), MOUNTING BRACKET SCREW
    7/16-14 THREAD
  • 19
    71587A10 COOLANT RECOVERY KIT (Sold Complete Only)
    COOLANT RECOVERY KIT (Sold Complete Only)
  • 20
    71587A11 BOTTLE, PLASTIC
    BOTTLE, PLASTIC
  • 21
    72058 CAP, PLASTIC BOTTLE
    CAP, PLASTIC BOTTLE
  • 22
    97385 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
  • 23
    32-897301 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD)
  • 24
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 25
    32-19403 HOSE, RESERVOIR TO EXHAUST MANIFOLD (STARBOARD)
    HOSE, RESERVOIR TO EXHAUST MANIFOLD (STARBOARD)
  • 26
    22-865159 FITTING, (45 Degrees), EXHAUST MANIFOLD - TOP (45 Degree)
    FITTING, (45 Degrees), EXHAUST MANIFOLD - TOP (45 Degree)
  • 26
    22-36305T ELBOW, (90 Degrees), EXHAUST MANIFOLD - TOP (90 Degree)
    ELBOW, (90 Degrees), EXHAUST MANIFOLD - TOP (90 Degree)
  • 27
    32-19404 HOSE, RESERVOIR TO EXHAUST MANIFOLD (PORT)
    HOSE, RESERVOIR TO EXHAUST MANIFOLD (PORT)
  • 28
    32-8M0062665 HOSE, TEE TO RESERVOIR
    HOSE, TEE TO RESERVOIR
  • 29
    22-55133 TEE, FITTING
    TEE, FITTING
  • 30
    32-92846 HOSE, TEE TO EXHAUST ELBOW (PORT)
    HOSE, TEE TO EXHAUST ELBOW (PORT)
  • 31
    32-8M0062614 HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)
    HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)
  • 32
    32-92838 HOSE, RESERVOIR TO WATER PUMP
    HOSE, RESERVOIR TO WATER PUMP
  • 33
    54-815504228 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 34
    32-8M0062665 HOSE, (48.00 Inches Bulk), WATER PUMP TO OIL COOLER (7")
    HOSE, (48.00 Inches Bulk), WATER PUMP TO OIL COOLER (7")
  • 35
    32-63829 HOSE, OIL COOLER TO OIL COOLER
    (Use with 4 Inch Reservoir)
    HOSE, OIL COOLER TO OIL COOLER
    (Use with 4 Inch Reservoir)
  • 35
    32-44590 HOSE, OIL COOLER TO OIL COOLER
    (Use with 5 Inch Reservoir)
    HOSE, OIL COOLER TO OIL COOLER
    (Use with 5 Inch Reservoir)
  • 36
    32-79671 HOSE, OIL COOLER TO RESERVOIR
    (Use with 4 Inch Reservoir)
    HOSE, OIL COOLER TO RESERVOIR
    (Use with 4 Inch Reservoir)
  • 36
    32-92837 HOSE, OIL COOLER TO RESERVOIR
    (Use with 5 Inch Reservoir)
    HOSE, OIL COOLER TO RESERVOIR
    (Use with 5 Inch Reservoir)
  • 37
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • -
    27-65184A88 GASKET SET, Engine
    GASKET SET, Engine
