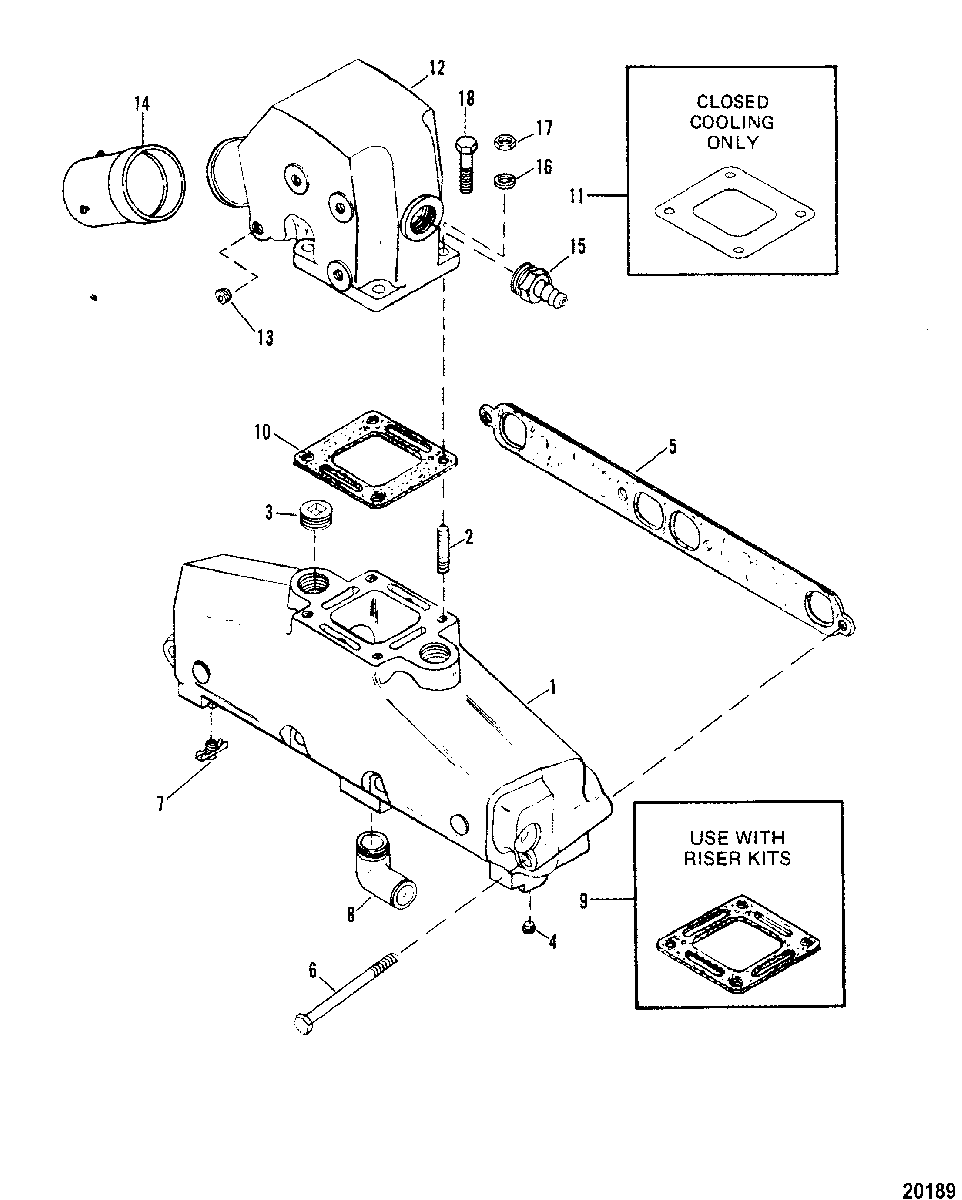

Exhaust Manifold and Exhaust Elbow для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    16-49545 STUD, (3/8 x 1.75), MANIFOLD (1-3/4")
    (Not used with 7 Degree Exhaust Elbow)
    STUD, (3/8 x 1.75), MANIFOLD (1-3/4")
    (Not used with 7 Degree Exhaust Elbow)
  • 2
    16-52988 STUD, (.375 x 3.25), MANIFOLD (3-3/4")
    (Not used with 7 Degree Exhaust Elbow)
    STUD, (.375 x 3.25), MANIFOLD (3-3/4")
    (Not used with 7 Degree Exhaust Elbow)
  • 3
    22-416223 PLUG, (3/4-14), EXHAUST MANIFOLD
    PLUG, (3/4-14), EXHAUST MANIFOLD
  • 4
    22-73379 PLUG, (.250-18), PIPE - EXHAUST MANIFOLD
    PLUG, (.250-18), PIPE - EXHAUST MANIFOLD
  • 5
    27-46820 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 6
    10-37612 SCREW, (.375-16 x 1.250), EXHAUST MANIFOLD
    SCREW, (.375-16 x 1.250), EXHAUST MANIFOLD
  • 6
    10-48424 SCREW, (.375-16 x 1.620), EXHAUST MANIFOLD
    SCREW, (.375-16 x 1.620), EXHAUST MANIFOLD
  • 7
    22-16951Q1 FITTING, EXHAUST MANIFOLD
    FITTING, EXHAUST MANIFOLD
  • 8
    22-36305T ELBOW, (90 Degrees), EXHAUST MANIFOLD
    ELBOW, (90 Degrees), EXHAUST MANIFOLD
  • 9
    27-863726 GASKET, ELBOW (USE WITH RISER KITS)
    GASKET, ELBOW (USE WITH RISER KITS)
  • 10
    27-863724 GASKET, EXHAUST ELBOW (STANDARD COOLING)
    GASKET, EXHAUST ELBOW (STANDARD COOLING)
  • 11
    27-8637251 GASKET (CLOSED COOLING)
    GASKET (CLOSED COOLING)
  • 12
    98504A3 ELBOW ASSEMBLY, Exhaust (15 Degree -3"O.D.)
    ELBOW ASSEMBLY, Exhaust (15 Degree -3"O.D.)
  • 12
    807988A03 ELBOW ASSEMBLY, Exhaust (7 Degree -4" O.D.)
    ELBOW ASSEMBLY, Exhaust (7 Degree -4" O.D.)
  • 13
    22-36382 FITTING, (.250-18 x .62) Brass, PIPE - EXHAUST ELBOW
    FITTING, (.250-18 x .62) Brass, PIPE - EXHAUST ELBOW
  • 14
    32-58616A2 TUBE, WATER SEPARATION (3" O.D. ELBOW ONLY)
    TUBE, WATER SEPARATION (3" O.D. ELBOW ONLY)
  • 15
    22-865159 FITTING, (45 Degrees), EXHAUST ELBOW (45 Degree)
    FITTING, (45 Degrees), EXHAUST ELBOW (45 Degree)
  • 16
    13-35048 LOCKWASHER, (.375), MANIFOLD STUD
    (Not used with 7 Degree Exhaust Elbow)
    LOCKWASHER, (.375), MANIFOLD STUD
    (Not used with 7 Degree Exhaust Elbow)
  • 17
    11-49838 NUT, MANIFOLD STUD
    (Not used with 7 Degree Exhaust Elbow)
    NUT, MANIFOLD STUD
    (Not used with 7 Degree Exhaust Elbow)
  • 18
    10-43749 SCREW, (.375-16 x 5.750), MANIFOLD
    (Used with 7 Degree Exhaust Elbow)
    SCREW, (.375-16 x 5.750), MANIFOLD
    (Used with 7 Degree Exhaust Elbow)
  • 18
    10-44387 SCREW, (.376-16 x 6.750), MANIFOLD
    (Used with 7 Degree Exhaust Elbow)
    SCREW, (.376-16 x 6.750), MANIFOLD
    (Used with 7 Degree Exhaust Elbow)
  • -
    27-65184A88 GASKET SET, Engine
    GASKET SET, Engine
  • -
    93320A13 RISER KIT, Exhaust Elbow (3 In.)
    (3 Inch Riser Kit)(Each kit contains 2 Risers)
    RISER KIT, Exhaust Elbow (3 In.)
    (3 Inch Riser Kit)(Each kit contains 2 Risers)
  • -
    93322A12 RISER KIT, Exhaust Elbow (6 In.)
    (6 Inch Riser Kit)(Each kit contains 2 Risers)
    RISER KIT, Exhaust Elbow (6 In.)
    (6 Inch Riser Kit)(Each kit contains 2 Risers)
