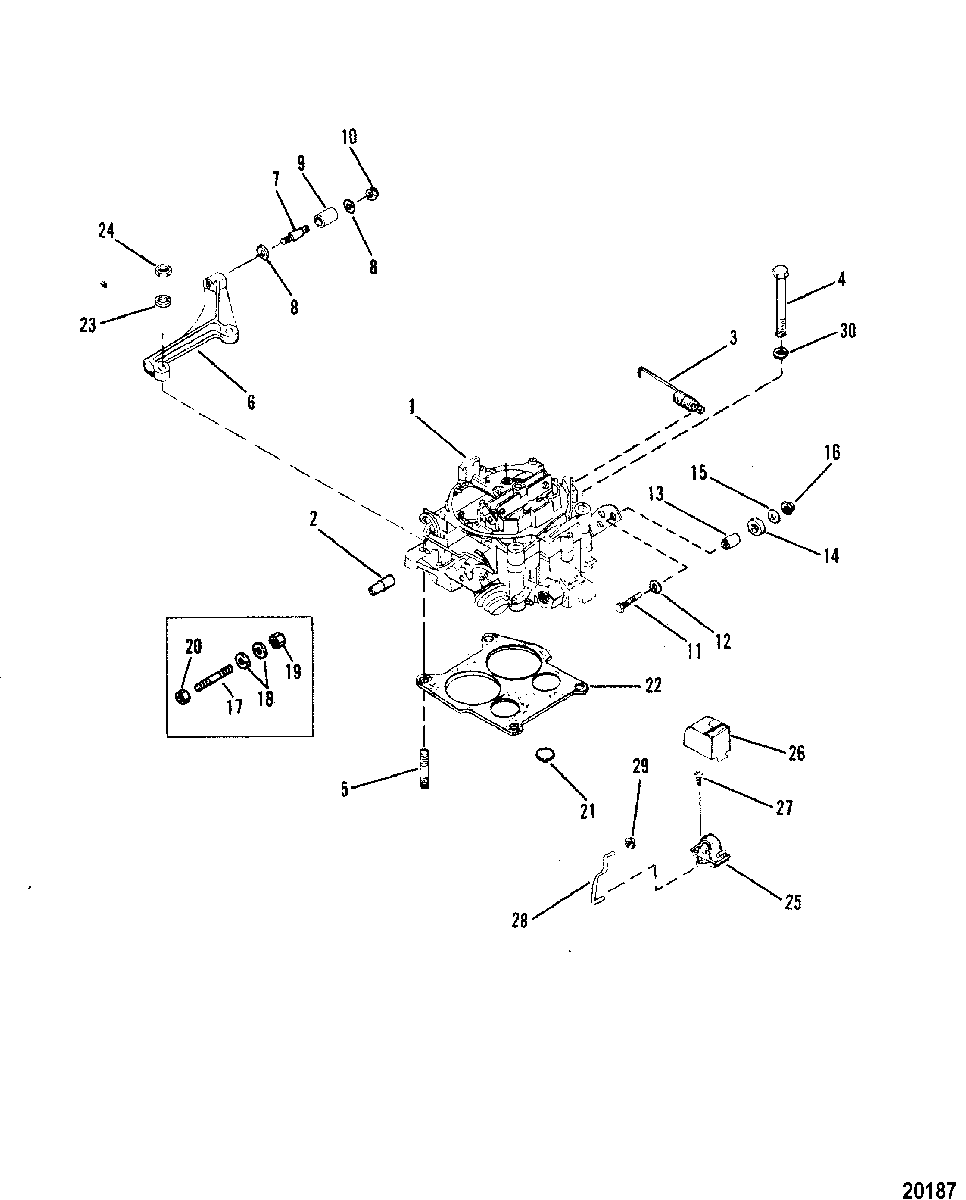

Carburetor and Linkage для Mercruiser - 330 GM 454 V-8 1982-1987 6083145 THRU 0B816540

  • №
    Артикул
    Название
  • 1
    1347-804626R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    22-97282 CONNECTOR, CARBURETOR
    CONNECTOR, CARBURETOR
  • 3
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 4
    10-74822 SCREW, (.312-18 x 3.500), CARBURETOR
    SCREW, (.312-18 x 3.500), CARBURETOR
  • 5
    16-46857 STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8")
    (Design I)
    STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8")
    (Design I)
  • 5
    16-97940 STUD, CARBURETOR (2-1/8")
    (Design I)
    STUD, CARBURETOR (2-1/8")
    (Design I)
  • 5
    16-53724 STUD, (5/16 x 1-3/4), CARBURETOR (1-3/4")
    (Design II)
    STUD, (5/16 x 1-3/4), CARBURETOR (1-3/4")
    (Design II)
  • 6
    805359A02 BRACKET, THROTTLE CABLE
    (Throttle Cable Attaches With Screw)
    BRACKET, THROTTLE CABLE
    (Throttle Cable Attaches With Screw)
  • 6
    41329A5 BRACKET, THROTTLE CABLE
    (Throttle Cable Attaches With Stud)
    BRACKET, THROTTLE CABLE
    (Throttle Cable Attaches With Stud)
  • 7
    16-73563A1 STUD KIT, THROTTLE CABLE
    (Throttle Cable Attaches With Stud)
    STUD KIT, THROTTLE CABLE
    (Throttle Cable Attaches With Stud)
  • 7
    16-38525 STUD, THROTTLE CABLE
    (Throttle Cable Attaches With Screw)
    STUD, THROTTLE CABLE
    (Throttle Cable Attaches With Screw)
  • 8
    12-24664 WASHER, (M4 x 20)
    (Throttle Cable Attaches With Screw)
    WASHER, (M4 x 20)
    (Throttle Cable Attaches With Screw)
  • 9
    23-31866 SPACER, (.256 x .313 x .625)
    (Throttle Cable Attaches With Screw)
    SPACER, (.256 x .313 x .625)
    (Throttle Cable Attaches With Screw)
  • 10
    11-826709109 NUT, (.250-28)
    (Throttle Cable Attaches With Screw)
    NUT, (.250-28)
    (Throttle Cable Attaches With Screw)
  • 11
    10-98509 SCREW (1-1/8")
    (Throttle Cable Attaches With Screw)
    SCREW (1-1/8")
    (Throttle Cable Attaches With Screw)
  • 12
    12-847883 WASHER
    (Throttle Cable Attaches With Screw)
    WASHER
    (Throttle Cable Attaches With Screw)
  • 13
    23-57938 BUSHING
    (Throttle Cable Attaches With Screw)
    BUSHING
    (Throttle Cable Attaches With Screw)
  • 14
    23-34948 SPACER
    (Throttle Cable Attaches With Screw)
    SPACER
    (Throttle Cable Attaches With Screw)
  • 15
    12-56681 WASHER, (.203 x .500 x .032)
    (Throttle Cable Attaches With Screw)
    WASHER, (.203 x .500 x .032)
    (Throttle Cable Attaches With Screw)
  • 16
    11-8267086 NUT, (#10-32)
    (Throttle Cable Attaches With Screw)
    NUT, (#10-32)
    (Throttle Cable Attaches With Screw)
  • 17
    16-8M0113178 STUD, (.250-28 x 2.00)
    (Throttle Cable Attaches With Stud)
    STUD, (.250-28 x 2.00)
    (Throttle Cable Attaches With Stud)
  • 18
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    (Throttle Cable Attaches With Stud)
    WASHER, (.281 x .500 x .060) Stainless Steel
    (Throttle Cable Attaches With Stud)
  • 19
    11-8267089 NUT, (.250-28)
    (Throttle Cable Attaches With Stud)
    NUT, (.250-28)
    (Throttle Cable Attaches With Stud)
  • 20
    11-826709109 NUT, (.250-28)
    (Throttle Cable Attaches With Stud)
    NUT, (.250-28)
    (Throttle Cable Attaches With Stud)
  • 21
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 22
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 23
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 24
    11-862902 NUT, (.9375-24)
    NUT, (.9375-24)
  • 25
    66205 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 26
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 27
    10-69235 SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
    SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
  • 28
    66197 CHOKE ROD, CHOKE
    CHOKE ROD, CHOKE
  • 29
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
  • 30
    13-39107 LOCKWASHER, (.312-24), CARBURETOR SCREW
    LOCKWASHER, (.312-24), CARBURETOR SCREW
  • -
    27-65184A88 GASKET SET, Engine
    GASKET SET, Engine
