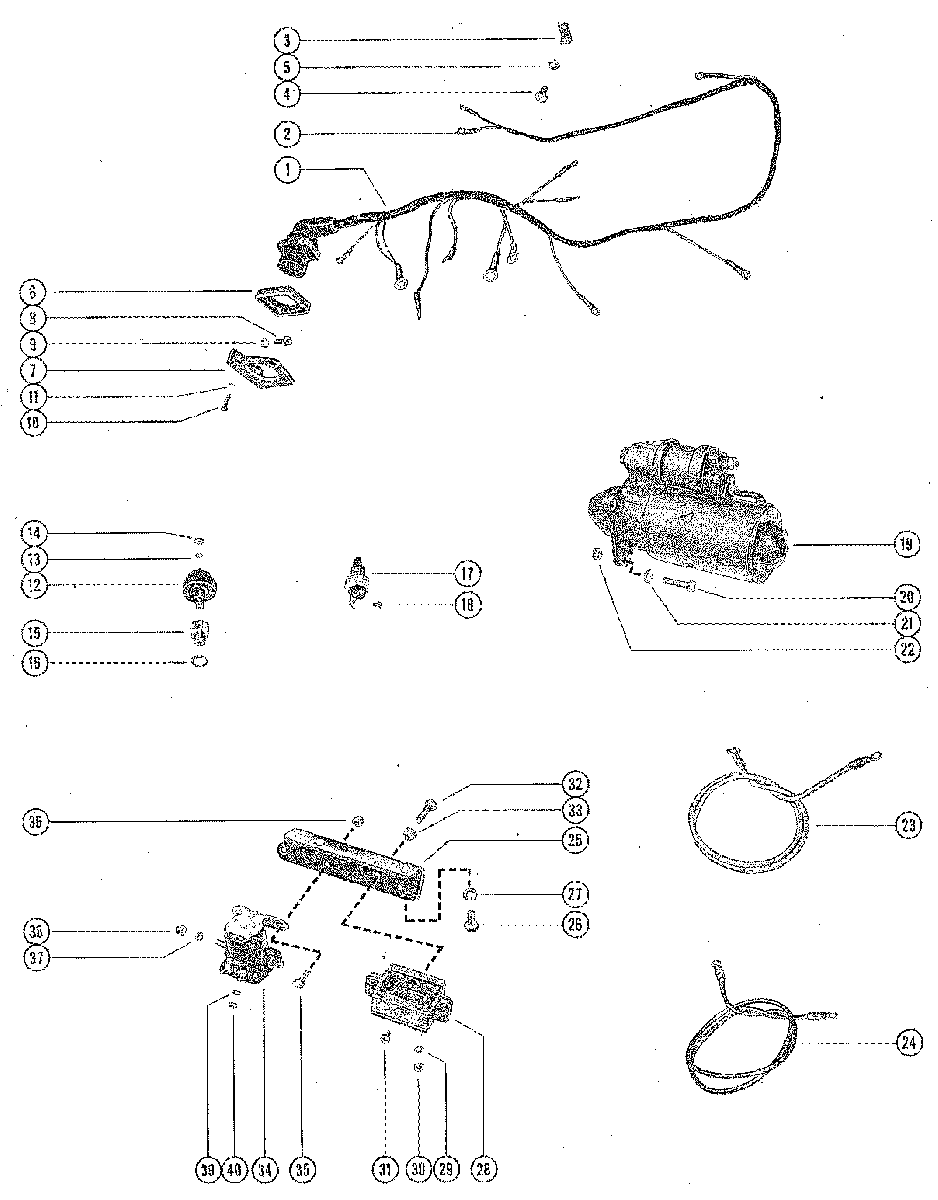

WIRING HARNESS,STARTER MOTOR, STARTER SOLENOID AND RECTIFIER для Mercruiser - 60 RENAULT 68 I/L4 1965-1968 1887079 THRU 2049044
-
№АртикулНазвание
-
138578 WIRING HARNESS, EXTERNALWIRING HARNESS, EXTERNAL
-
230050 TERMINAL, WIRING HARNESS LEADSTERMINAL, WIRING HARNESS LEADS
-
354-38537 CLIP, WIRING, HARNESS TO CYLINDER BLOCKCLIP, WIRING, HARNESS TO CYLINDER BLOCK
-
410-38524 SCREW, WIRING HARNESS CLIP TO CYLINDER BLOCK (15MM)SCREW, WIRING HARNESS CLIP TO CYLINDER BLOCK (15MM)
-
513-26993 LOCKWASHER, WIRING HARNESS CLIP SCREWLOCKWASHER, WIRING HARNESS CLIP SCREW
-
626079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKETPLATE, WIRING HARNESS TO MOUNTING BRACKET
-
738532 BRACKET, MOUNTING- WIRING HARNESSBRACKET, MOUNTING- WIRING HARNESS
-
810-32417 SCREW, MOUNTING BRACKET4 TO TRANSOM PLATE (5/8")SCREW, MOUNTING BRACKET4 TO TRANSOM PLATE (5/8")
-
913-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
1010-38603 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (7/8")SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (7/8")
-
1113-26995 LOCKWASHER, WIRING HARNESS PLATE SCREWLOCKWASHER, WIRING HARNESS PLATE SCREW
-
1287-805605A1 OIL PRESSURE SENDER ASSEMBLY, CYLINDER BLOCKOIL PRESSURE SENDER ASSEMBLY, CYLINDER BLOCK
-
1312-20878 WASHER, OIL PRESSURE SENDER TERMINAL (#10)WASHER, OIL PRESSURE SENDER TERMINAL (#10)
-
1411-68219 NUT, OIL PRESSURE SENDER TERMINAL (10-32)NUT, OIL PRESSURE SENDER TERMINAL (10-32)
-
1538557 ADAPTOR, OIL PRESSURE SENDER TO CYLINDER BLOCKADAPTOR, OIL PRESSURE SENDER TO CYLINDER BLOCK
-
1627-38558 GASKET, OIL PRESSURE SENDER ADAPTOR
(Part of 27-37073A1)GASKET, OIL PRESSURE SENDER ADAPTOR
(Part of 27-37073A1) -
1738534 WATER TEMPERATURE SENDER ASS'Y, THERMOSTAT CONTAINERWATER TEMPERATURE SENDER ASS'Y, THERMOSTAT CONTAINER
-
1810-20681 SCREW, WATER TEMPERATURE SENDER (3/8")SCREW, WATER TEMPERATURE SENDER (3/8")
-
1950-37151 STARTER MOTOR ASSEMBLY
SEE A6 FOR BREAKDOWNSTARTER MOTOR ASSEMBLY
SEE A6 FOR BREAKDOWN -
2010-78841 SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/2")SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/2")
-
2112-20722 WASHER, STARTER MOTOR SCREWWASHER, STARTER MOTOR SCREW
-
2211-29250 NUT, STARTER MOTOR SCREWNUT, STARTER MOTOR SCREW
-
2338540 BATTERY CABLE, POSITIVE (RED)BATTERY CABLE, POSITIVE (RED)
-
2438539 BATTERY CABLE, NEGATIVE (BLACK)BATTERY CABLE, NEGATIVE (BLACK)
-
2538516 BRACKET, MOUNTING-STARTER SOLENOID AND RECTIFIERBRACKET, MOUNTING-STARTER SOLENOID AND RECTIFIER
-
2610-25299 SCREW, MOUNTING BRACKET TO EXHAUST MANIFOLD (3/4")SCREW, MOUNTING BRACKET TO EXHAUST MANIFOLD (3/4")
-
2713-26993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
2832177A2 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
2913-26996 LOCKWASHER, RECTIFIER TERMINAL 2LOCKWASHER, RECTIFIER TERMINAL 2
-
3011-68219 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
3110-35400 SCREW, HARNESS LEAD TO RECTIFIERSCREW, HARNESS LEAD TO RECTIFIER
-
3210-26065 SCREW, RECTIFIER TO MOUNTING BRACKET (1")SCREW, RECTIFIER TO MOUNTING BRACKET (1")
-
3311-29250 NUT, RECTIFIER SCREWNUT, RECTIFIER SCREW
-
3425661T1 STARTER SOLEOIDSTARTER SOLEOID
-
3510-69028 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4")SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4")
-
3611-8267089 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
-
3713-20202 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
3811-22053 NUT, STARTER SOLENOID TERMINAL (5/16-24)NUT, STARTER SOLENOID TERMINAL (5/16-24)
-
3913-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
4011-68219 NUT, STARTER SOLENOID TERMINAL (10-32)NUT, STARTER SOLENOID TERMINAL (10-32)
-
-27-37073A1 GASKET SET-MiscellaneousGASKET SET-Miscellaneous
